SAFEWAZE

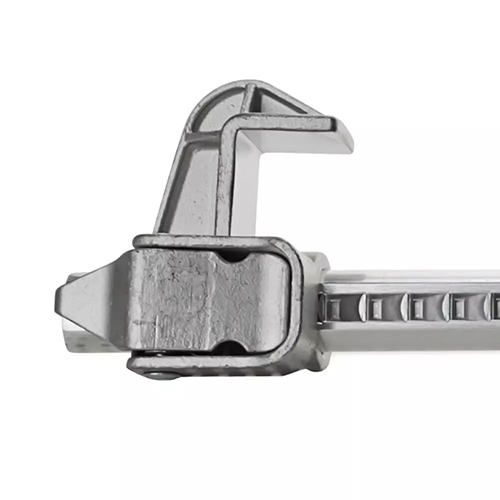

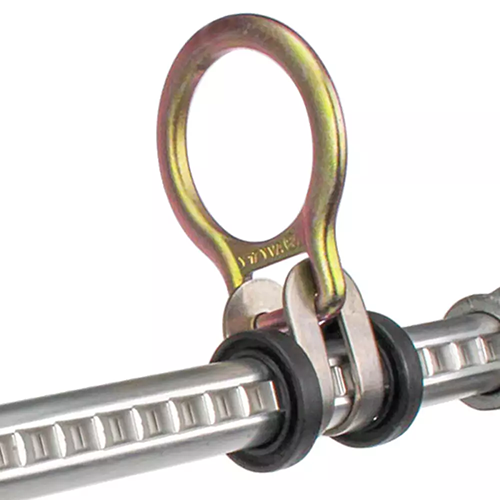

SafewazeŽ FS860 Sliding Beam Anchor for Horizontal Applications

Item #FS860

The Safewaze Sliding Beam Anchor is a trailing anchor solution to be used in horizontal applications.  This steel anchor is built to last with corrosion resistant material.

  • Center positioning retainer prevents jambing on the beam
  • Materials: Aluminum support bar, stainless steel clamps, latches and springs, Plated YCM steel D-ring
  • Lightweight yet durable
  • Length: 19 inches
  • Beam Flange Width Range: 3.5” – 14”
  • Minimum Breaking Strength: 5000 lbs
  • ANSI Weight Capacity: 130-310 lbs
  • OSHA Weight capacity: Up to 420 lbs
  • ANSI Standards: Z359.1, A10.32
  • OSHA Standards: 1926.502, 1910.140

Download Manual

more
$198.15
$186.27

Safewaze FS860 Premier Beam Anchor

The Safewaze premier sliding beam anchor is designed to be used as a single person anchor point on horizontal beams. It features a double-rivet fixed clamp on one end and a keyed sliding clamp on the other. The centered D-Ring prevents jamming on a beam flange and allows for smoother sliding.

Specifications:

  • Overall Length: 19 inch
  • Fits Beam Flange Width: 3.5" - 14"
  • Materials:  Forged anodized aluminum cross bar; Stainless steel clamps, latches and springs; Carbon steel D-Ring
  • Weight: 3.75
  • Minimum Breaking Load: 5000 lbs
  • Standards: Meets OSHA 1926-502 - ANSI Z359.1-2007 - ANSI A10.32 2012
  • Brand:

    Safewaze

?
