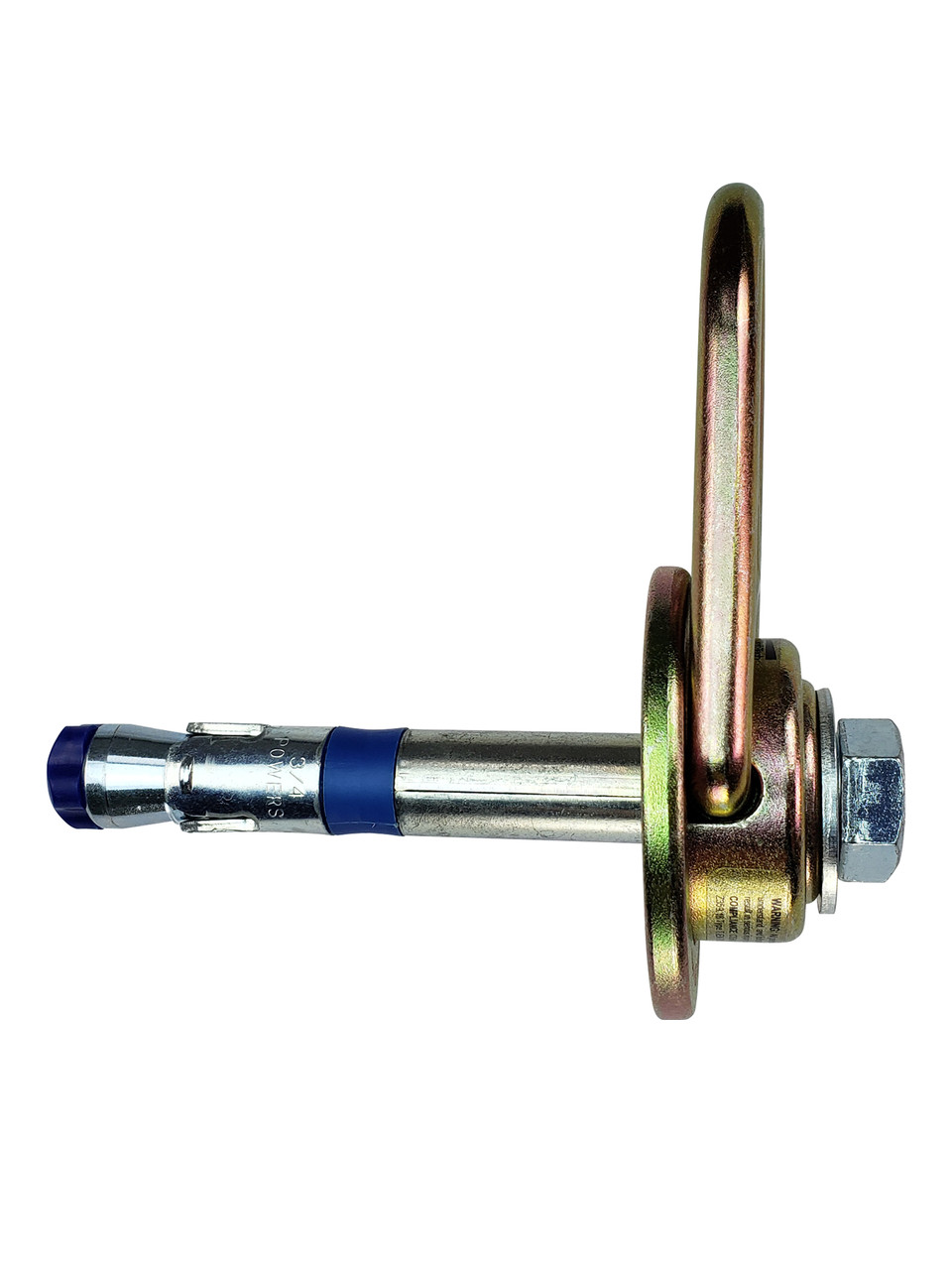

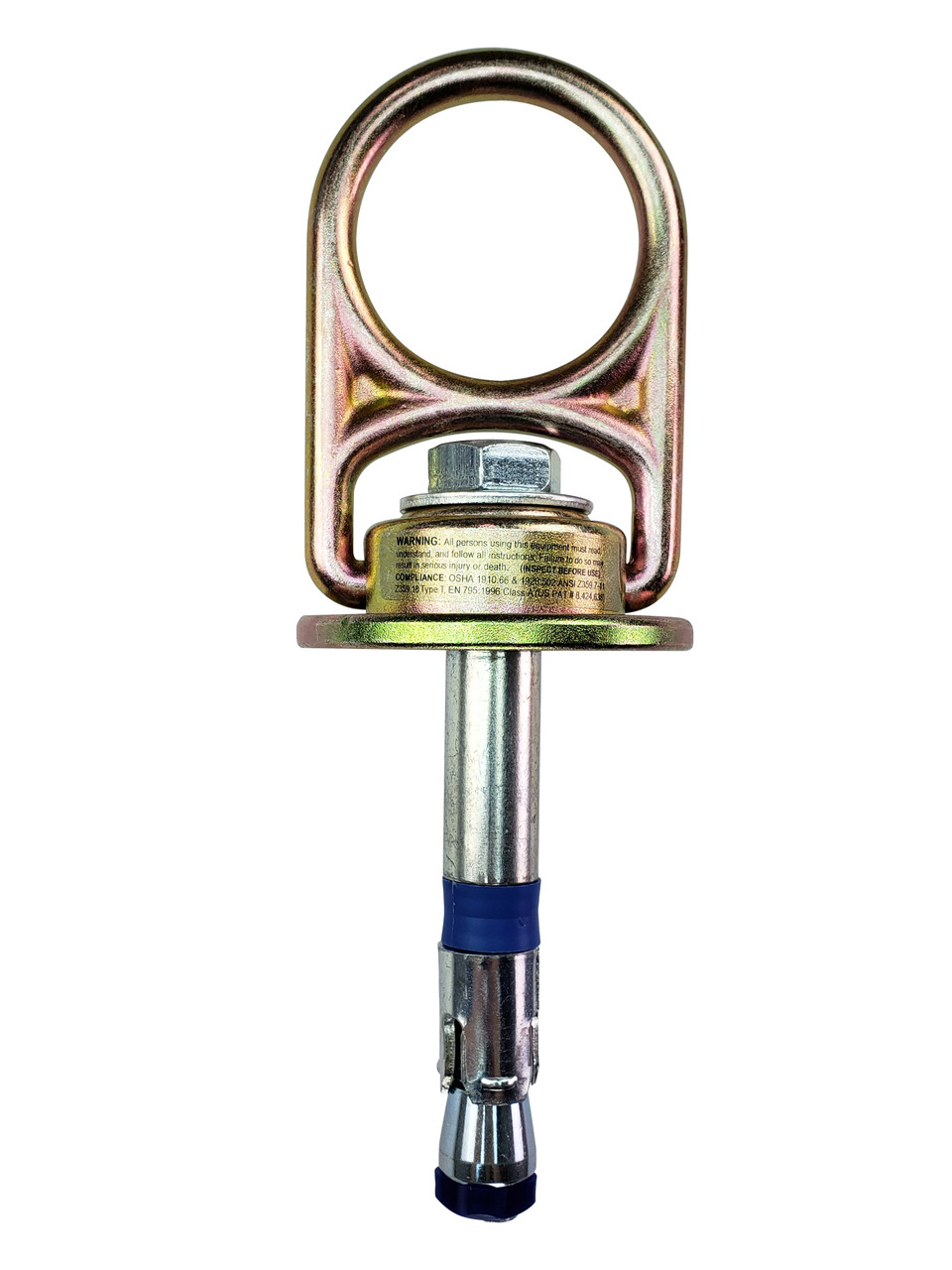

Frontline COM3410K MEGA Swivel 10K Concrete Anchor, Meets ANSI & OSHA Standards

The Frontline MEGA Swivel of anchor series features an innovative swivel ring mechanism that enables its D-ring to turn a complete 360 degrees while also allowing 180-degree forward and backward movement.

The Swivel Anchor achieves its exceptional durability through its robust construction, featuring heavy-duty heat-treated alloy steel, enhanced bridge support, D-ring, and secure locking caps. Its innovative patent-pending key lock system ensures the D-ring remains firmly positioned within its swivel housing, eliminating steel spread during high-load situations.

This concrete anchor offers reusability, with an easily replaceable bolt for different work locations, and versatility in vertical, horizontal, and overhead installations. Its applications span fall protection, rescue operations, lifting tasks, hoisting needs, tie-back functions, and more.

Features:

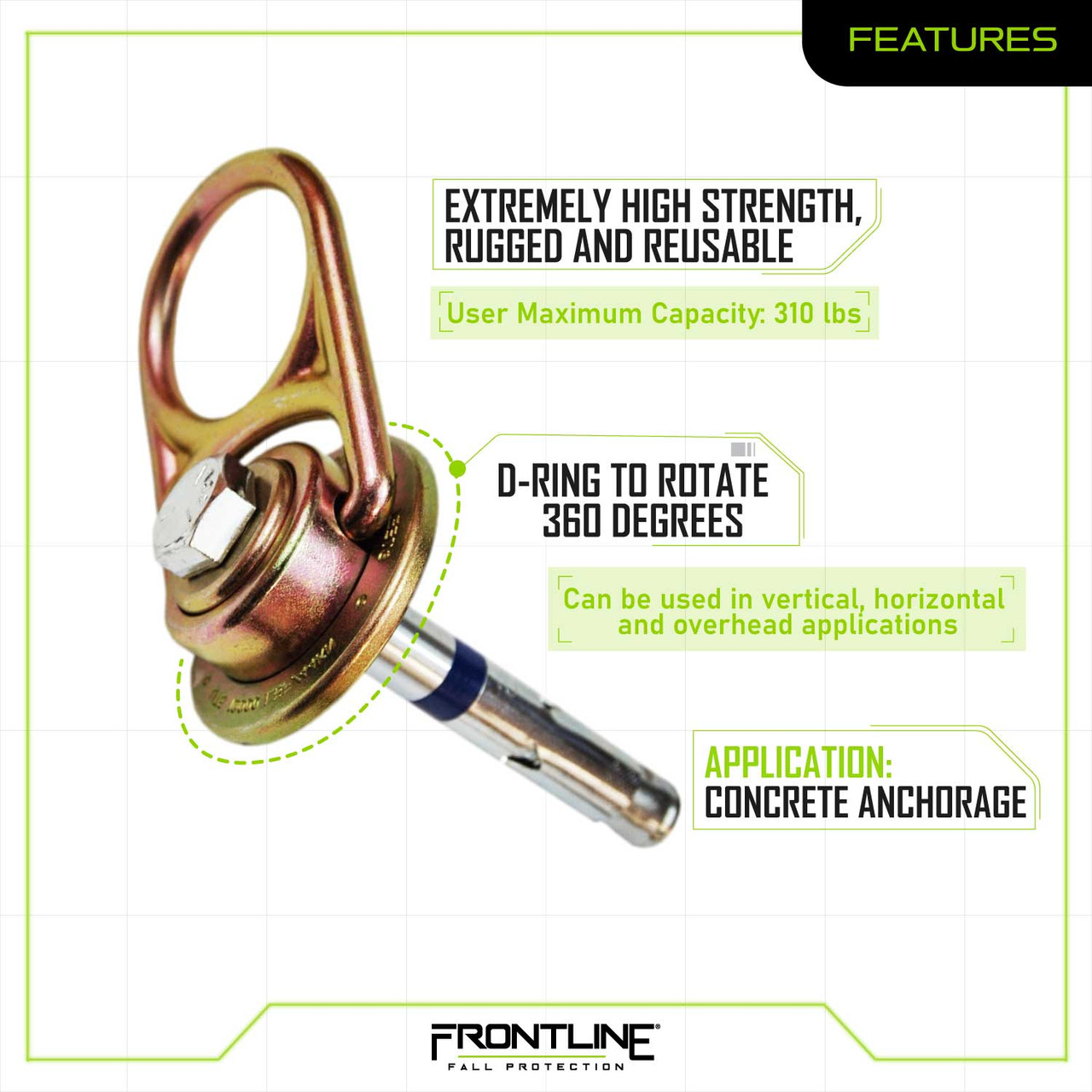

• Anchor provides full 360° rotation and 180° side-to-side pivot, effectively preventing side loading and unintended disconnection
• Suitable for both permanent and temporary concrete installation applications
• Functions as either a single-user anchoring point or combines with other approved anchors in temporary horizontal lifeline systems
• Constructed with superior durability for reliable performance across multiple jobs
• Ships complete with bolt for immediate deployment from package

Components:

• Zinc Plated Steel
• Replacement Bolt: COM3410KRB

Specs and Standards:

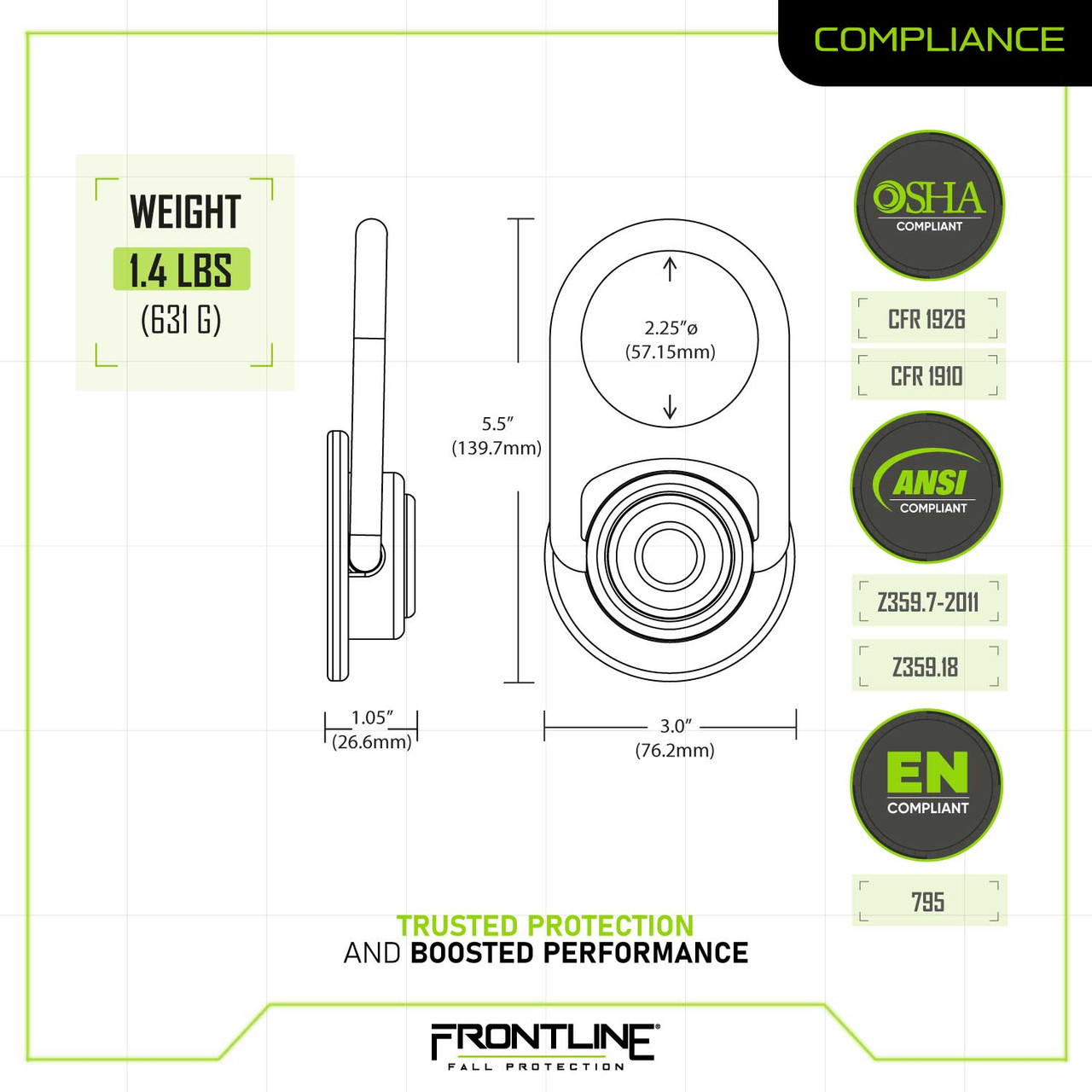

• Static Tensile Strength: 10,000-lbf/44kN
• User Maximum Capacity: 310 lbs
• Product Weight: 1.4 lbs
• Application: Concrete Anchorage
• Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
