Frontline COM345K MEGA Swivel 5K Concrete Anchor, Meets ANSI & OSHA Standards

The Frontline MEGA Swivel anchor system features an innovative swivel ring mechanism that enables its D-ring to make complete 360-degree rotations while also allowing 180-degree forward and backward movement.

The Swivel Anchor delivers exceptional durability through its robust construction, featuring heavy-duty heat-treated alloy steel, enhanced bridge support, D-ring, and secure locking caps. Its innovative patent-pending key lock system ensures the D-ring remains firmly positioned within the swivel housing, eliminating steel spread during high-load situations.

This versatile concrete anchor offers reusability, with an easily replaceable bolt for different work locations and compatibility with vertical, horizontal, and overhead installations. It serves multiple purposes including fall protection, rescue operations, lifting tasks, hoisting needs, tie-back applications, and more.

Features:

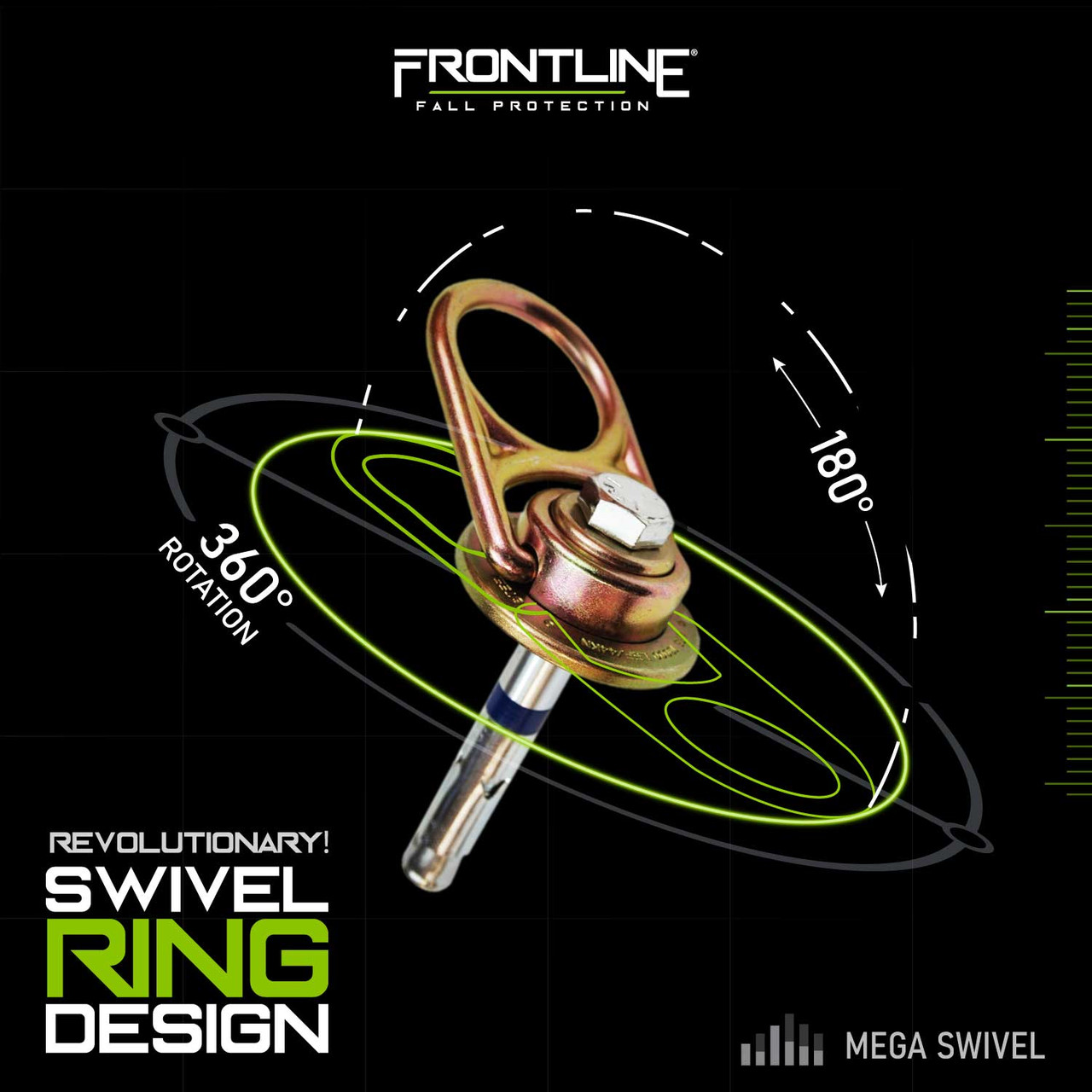

• Full 360° rotation and 180° side-to-side pivot capability prevents side loading and unintended disconnection
• Suitable for both permanent and temporary concrete installations
• Functions as an individual anchor point or combines with approved anchors for temporary horizontal lifeline systems
• Engineered for superior durability and consistent performance across multiple jobs

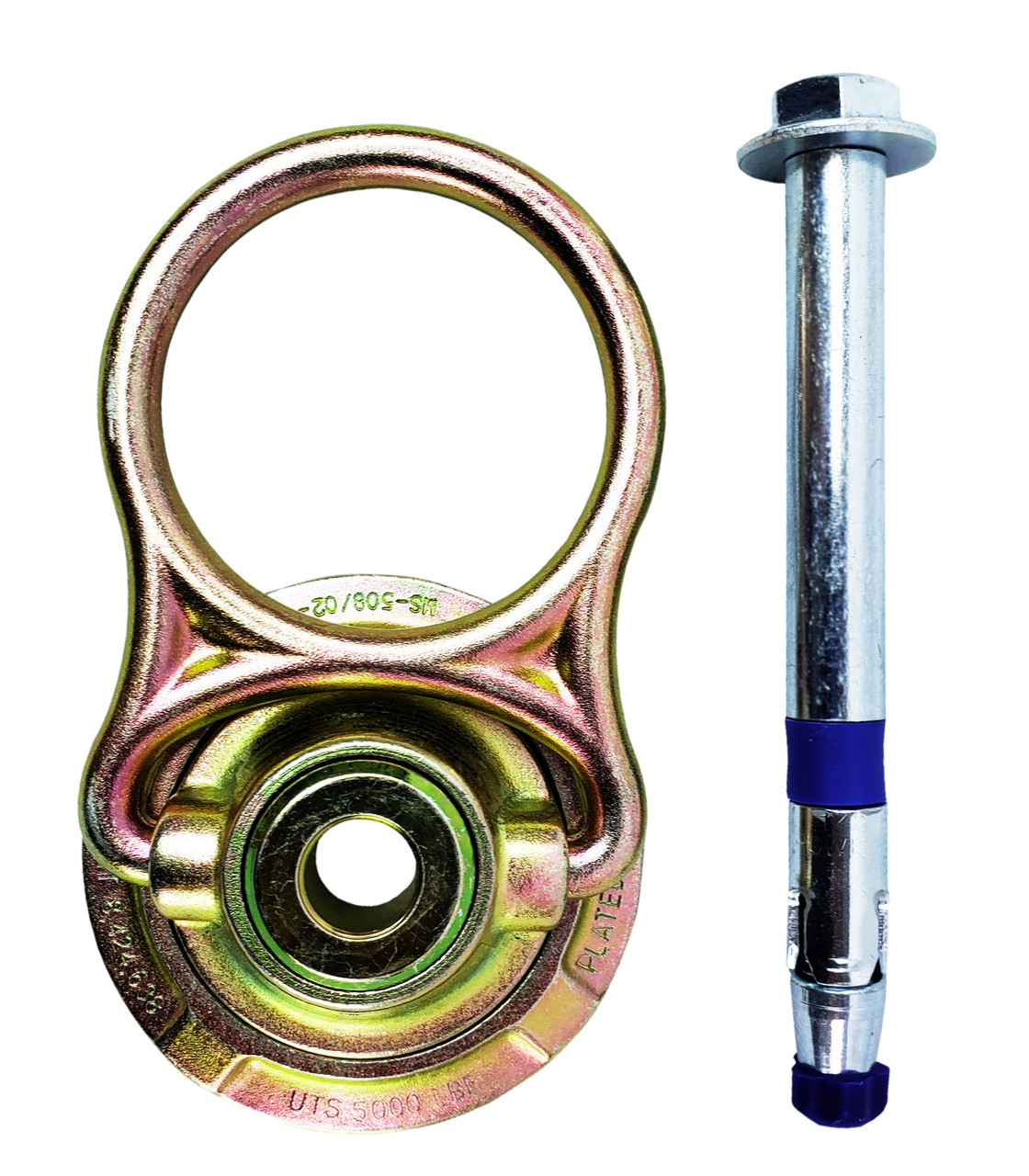

• Includes pre-installed bolt for immediate deployment

Components:

• Zinc Plated Steel
• Replacement Bolt: COM345KRB

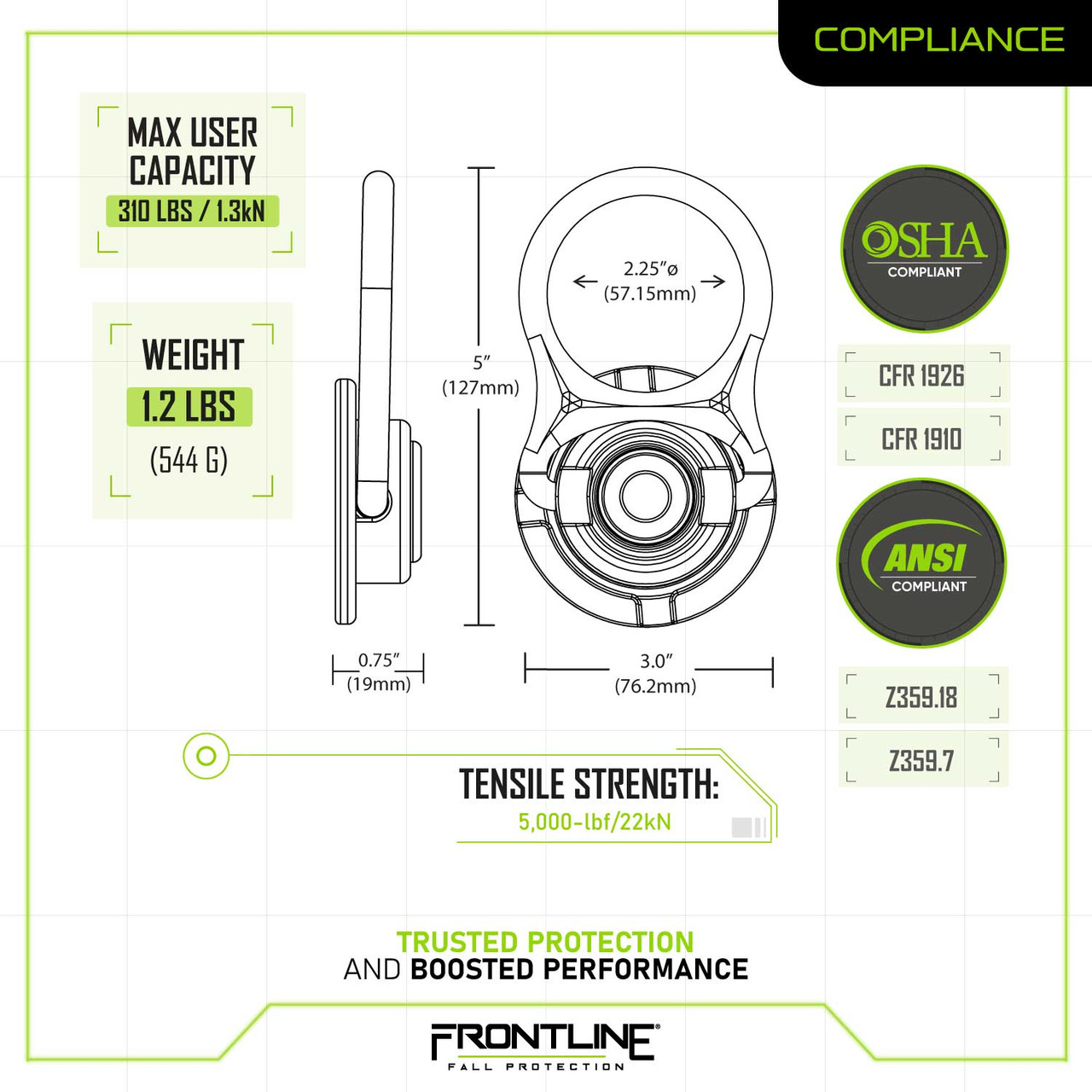

Specs and Standards:

• Static Tensile Strength: 5,000-lbf/22kN
• User Maximum Capacity: 310 lbs
• Product Weight: 1.2 lbs
• Application: Concrete Anchorage
• Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
