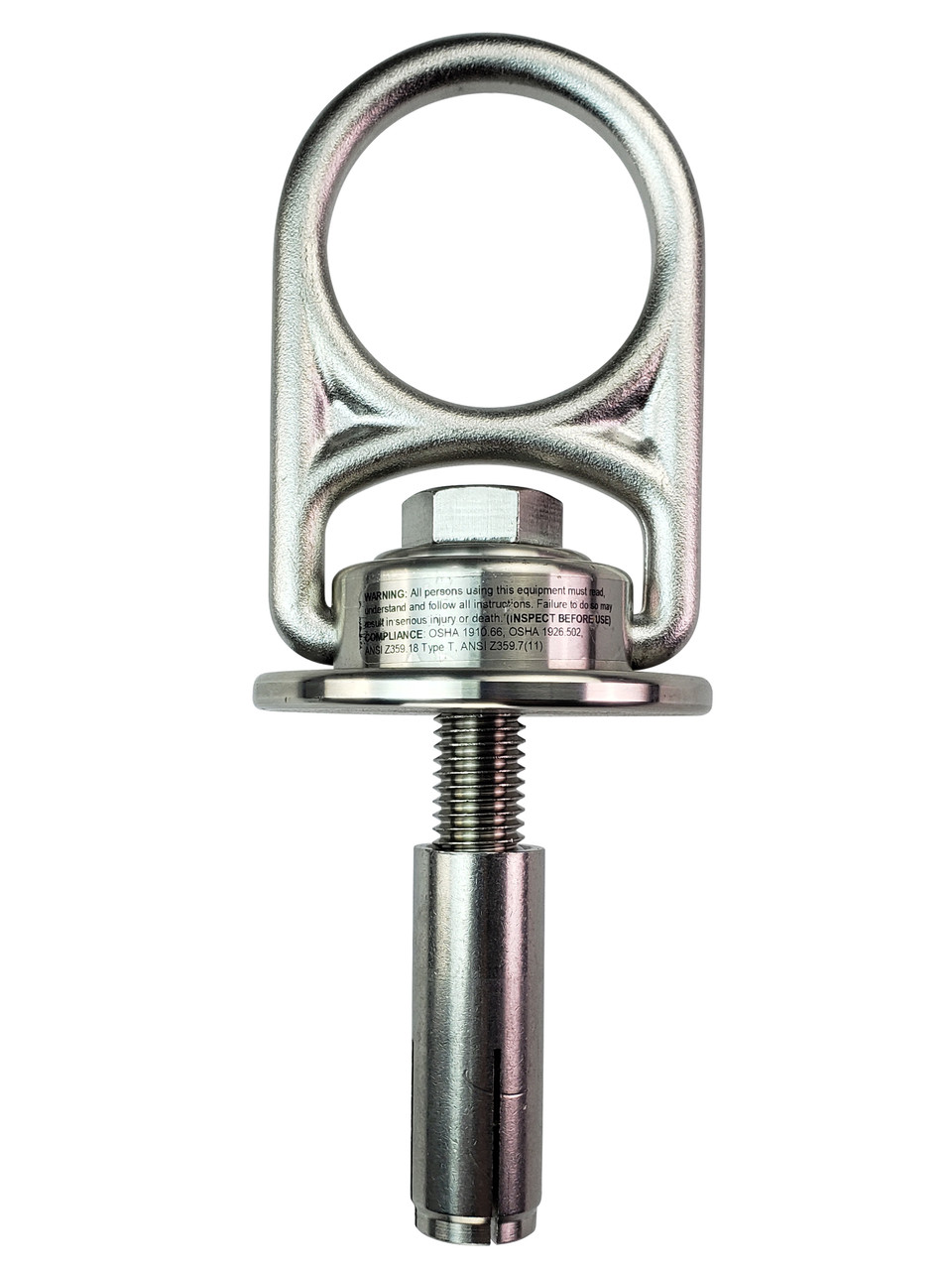

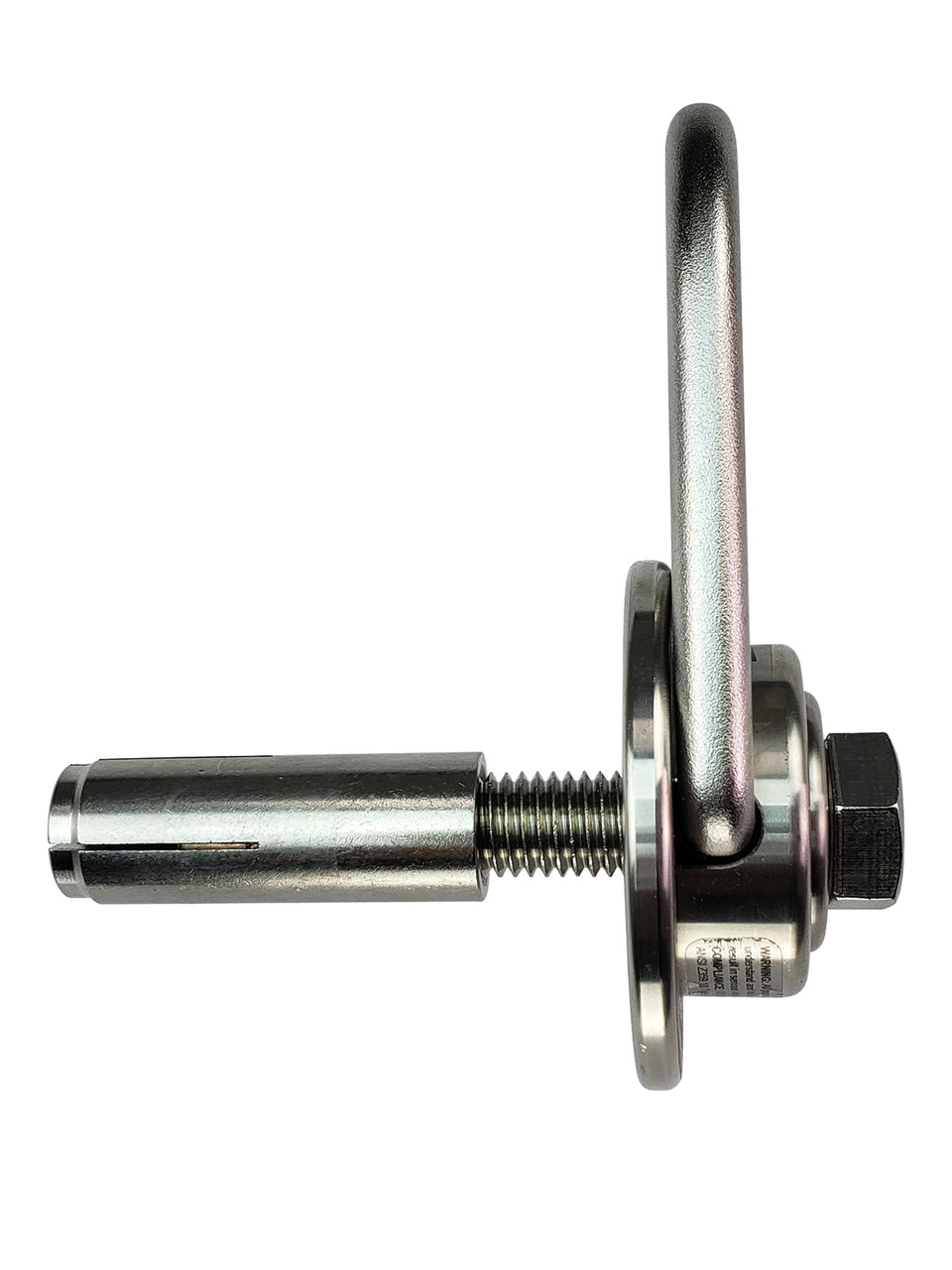

Frontline COM345K MEGA Swivel 5K Stainless Steel Concrete Anchor, Meets ANSI & OSHA Standards

The Frontline MEGA Swivel anchor system features an innovative swivel ring mechanism that enables its D-ring to make complete 360-degree rotations while also allowing 180-degree back-and-forth movement.

The Swivel Anchor delivers exceptional durability through its robust heat-treated alloy steel construction, featuring a strengthened bridge, D-ring, and secure locking caps. Its innovative patent-pending key lock mechanism ensures the D-ring remains firmly positioned within the swivel housing, eliminating outward steel expansion during high-load situations.

This reusable concrete anchor features an easily replaceable bolt for quick relocation between work sites and functions effectively in vertical, horizontal, and overhead positions. It's suitable for various concrete applications including fall protection, rescue operations, lifting tasks, hoisting needs, tie-back scenarios, and more.

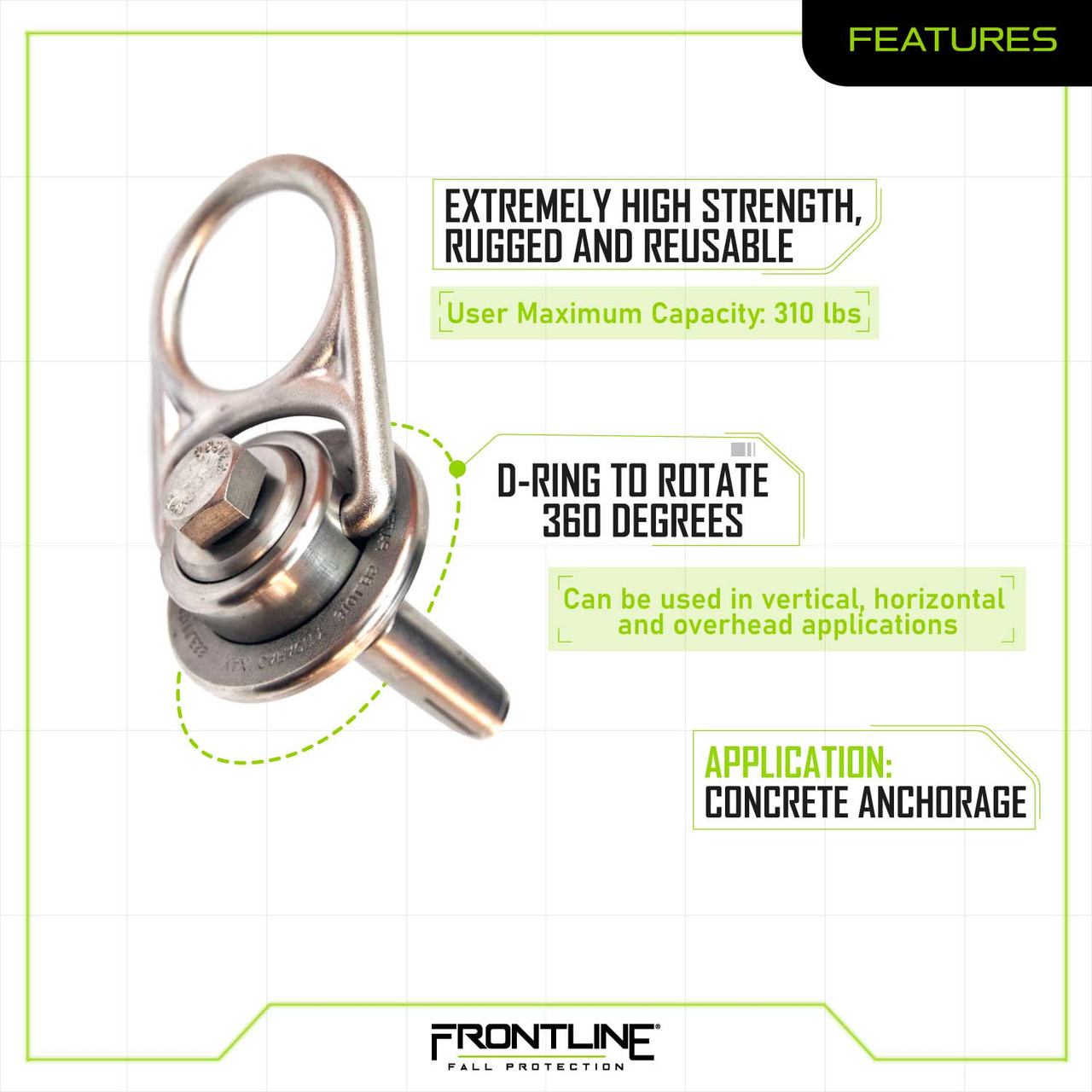

Features:

• Full 360° rotation and 180° side-to-side pivot capability prevents side loading and unintentional disconnection
• Constructed from stainless steel, offering superior outdoor durability and rust resistance
• Suitable for both permanent and temporary concrete installations
• Functions as either a single-point anchor or can integrate with other approved anchors in temporary horizontal lifeline systems
• Engineered for maximum durability and reliable performance across multiple jobs
• Includes pre-installed bolt for immediate deployment

Components:

• Stainless Steel
• Replacement Bolt: COM345K-SSRB

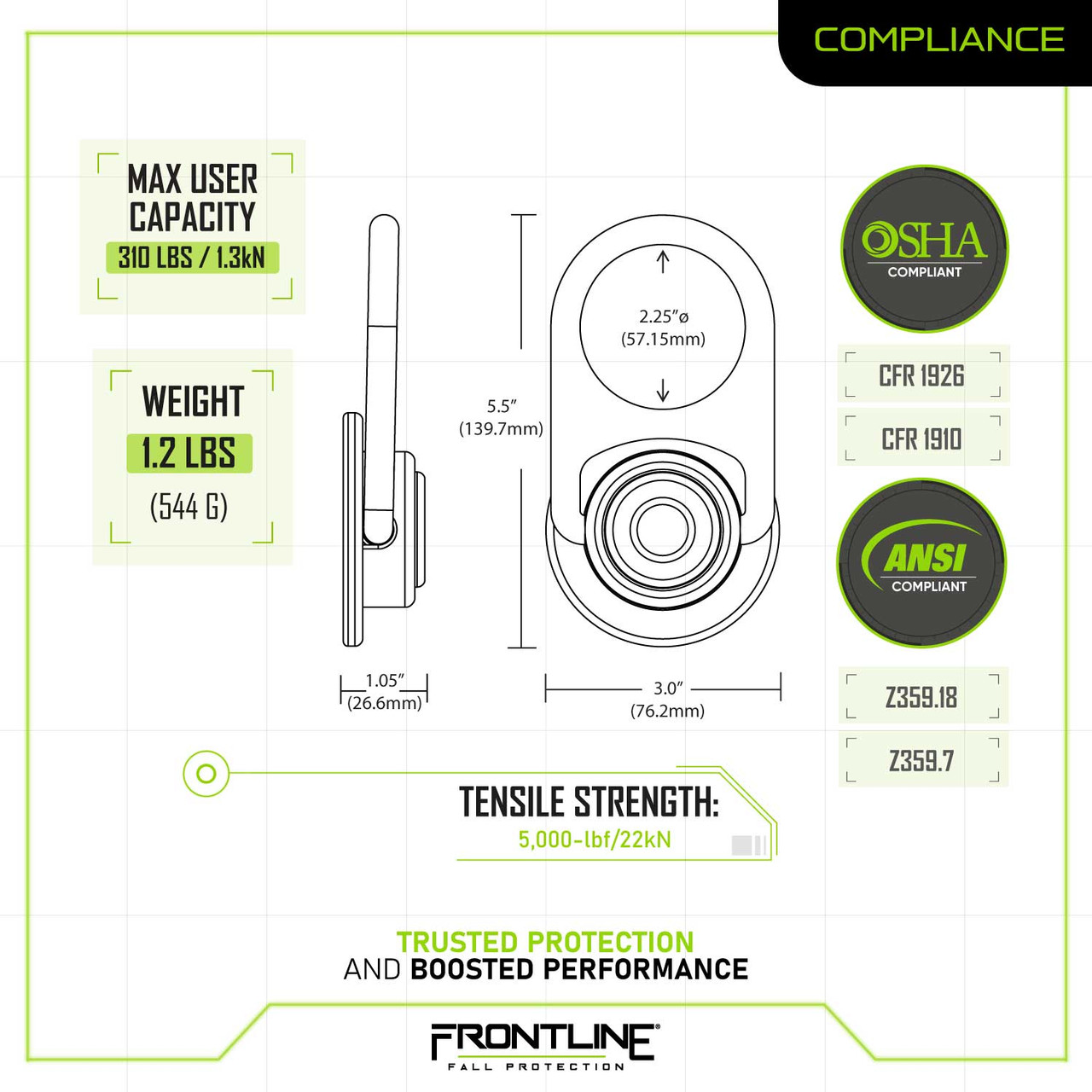

Specs and Standards:

• Static Tensile Strength: 5,000-lbf/22kN
• User Maximum Capacity: 310 lbs
• Product Weight: 1.2 lbs
• Application: Concrete Anchorage
• Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
