Frontline COP01 Concrete and Steel D-Ring Reusable Anchor Plate, ANSI Standards

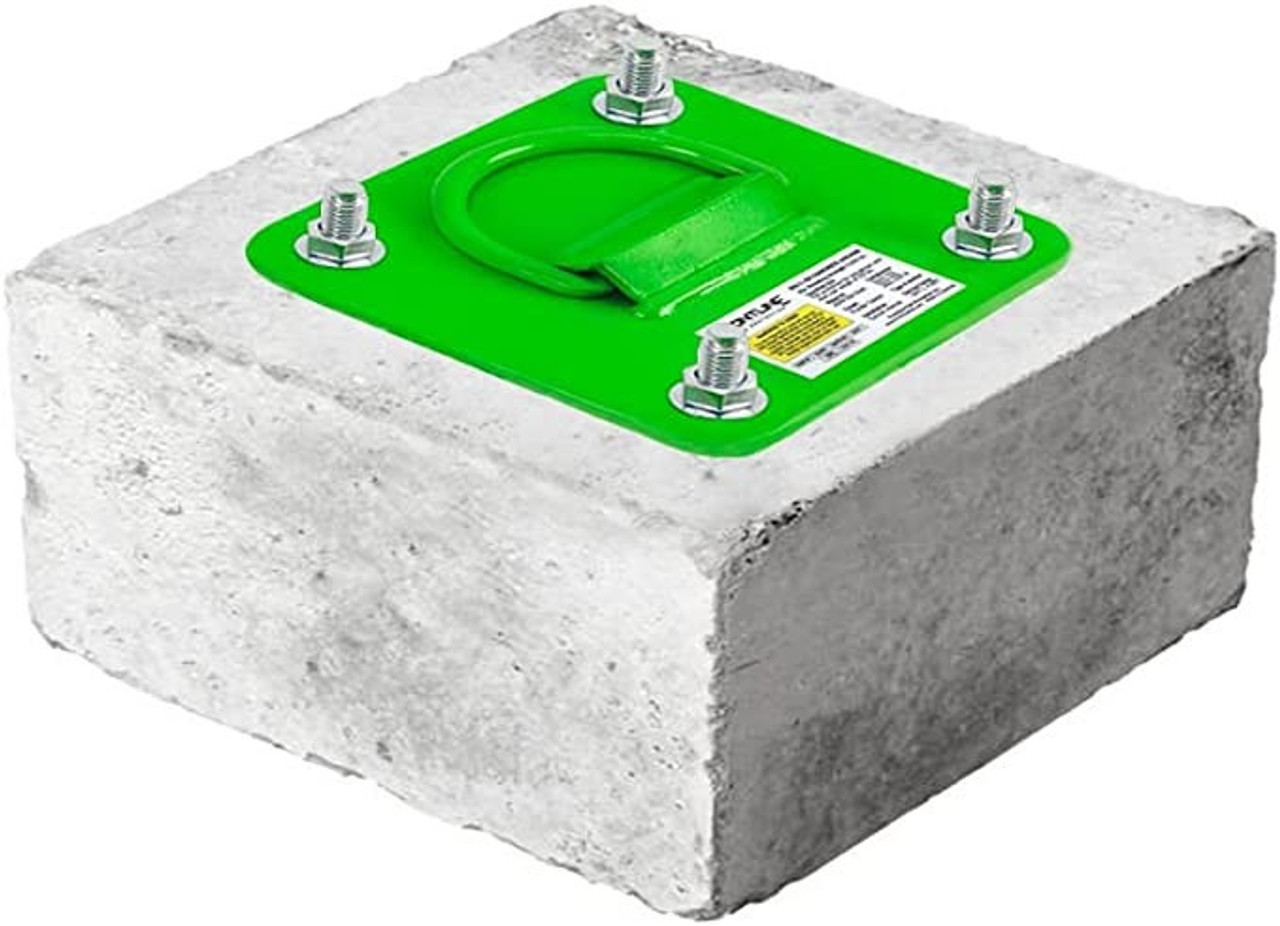

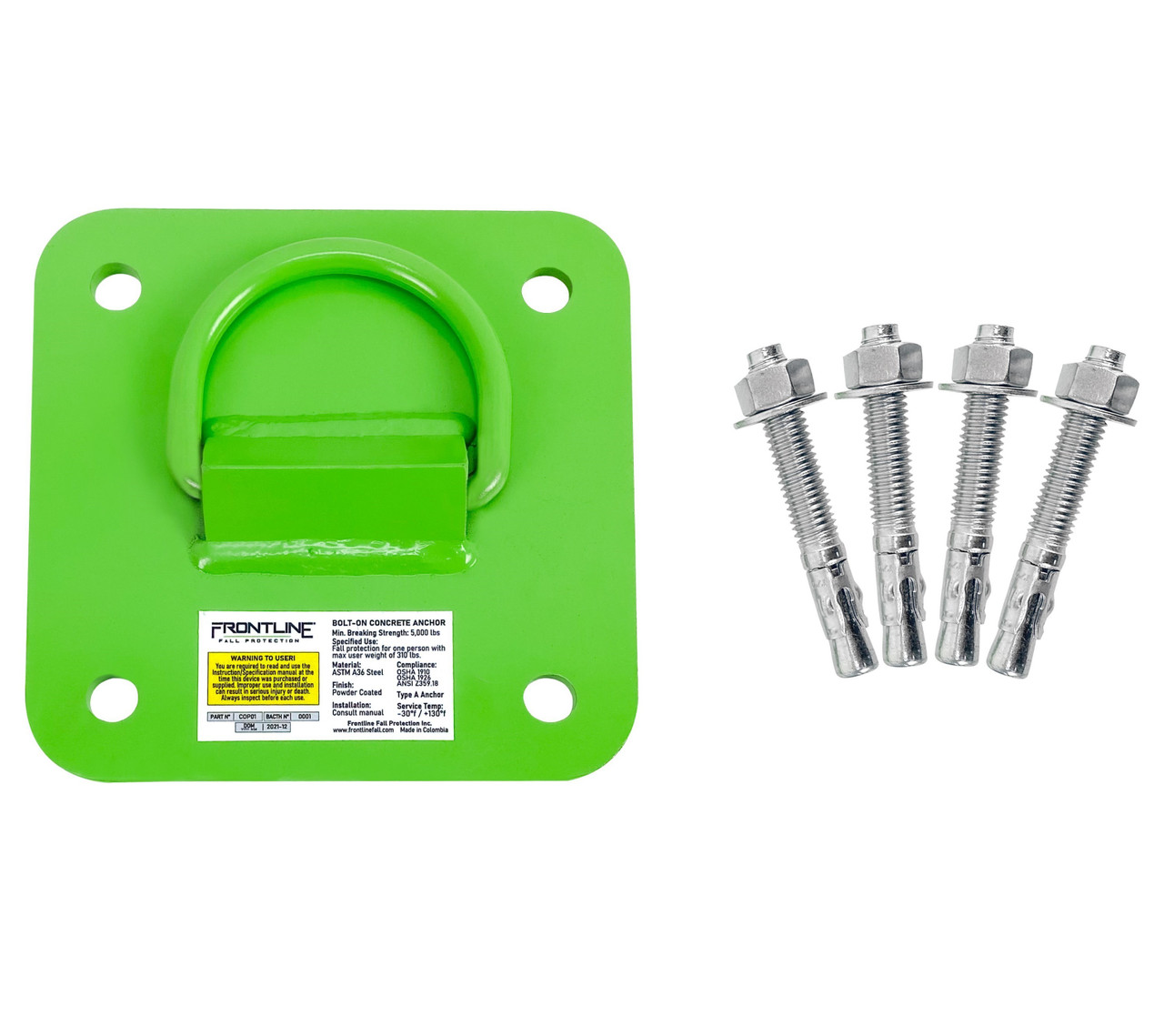

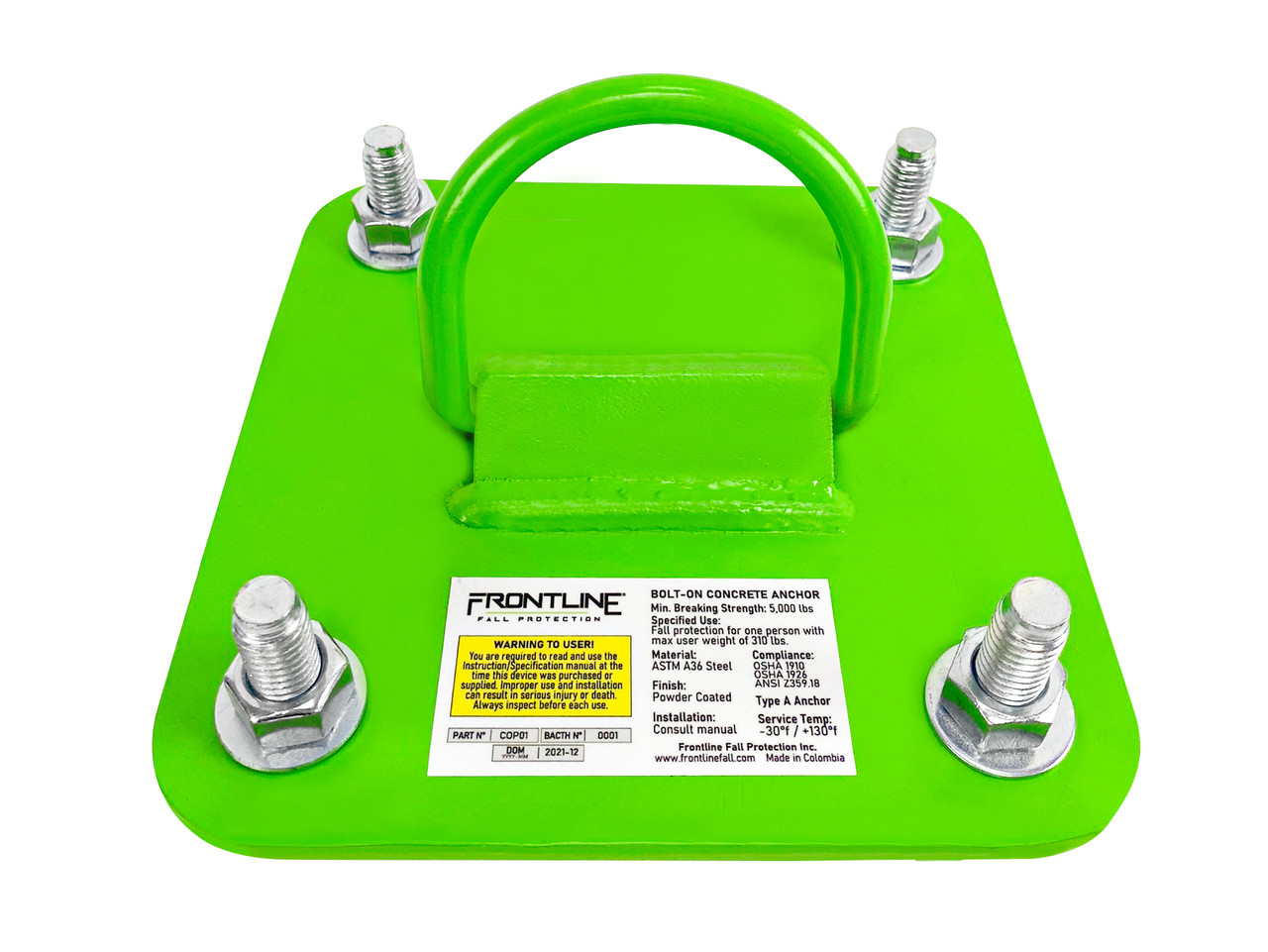

Frontline presents the fall arrest bolt-on anchor plate, engineered specifically for securing to concrete walls, ceilings, columns, or various concrete and steel structures. The anchor plate offers simple, repeatable use and installs rapidly for both horizontal and vertical applications. The unit includes four pre-drilled mounting holes and comes complete with all necessary concrete anchor bolts, ready for immediate deployment from the package.

Features:

• Constructed from ASTM certified steel, ensuring maximum strength and dependability

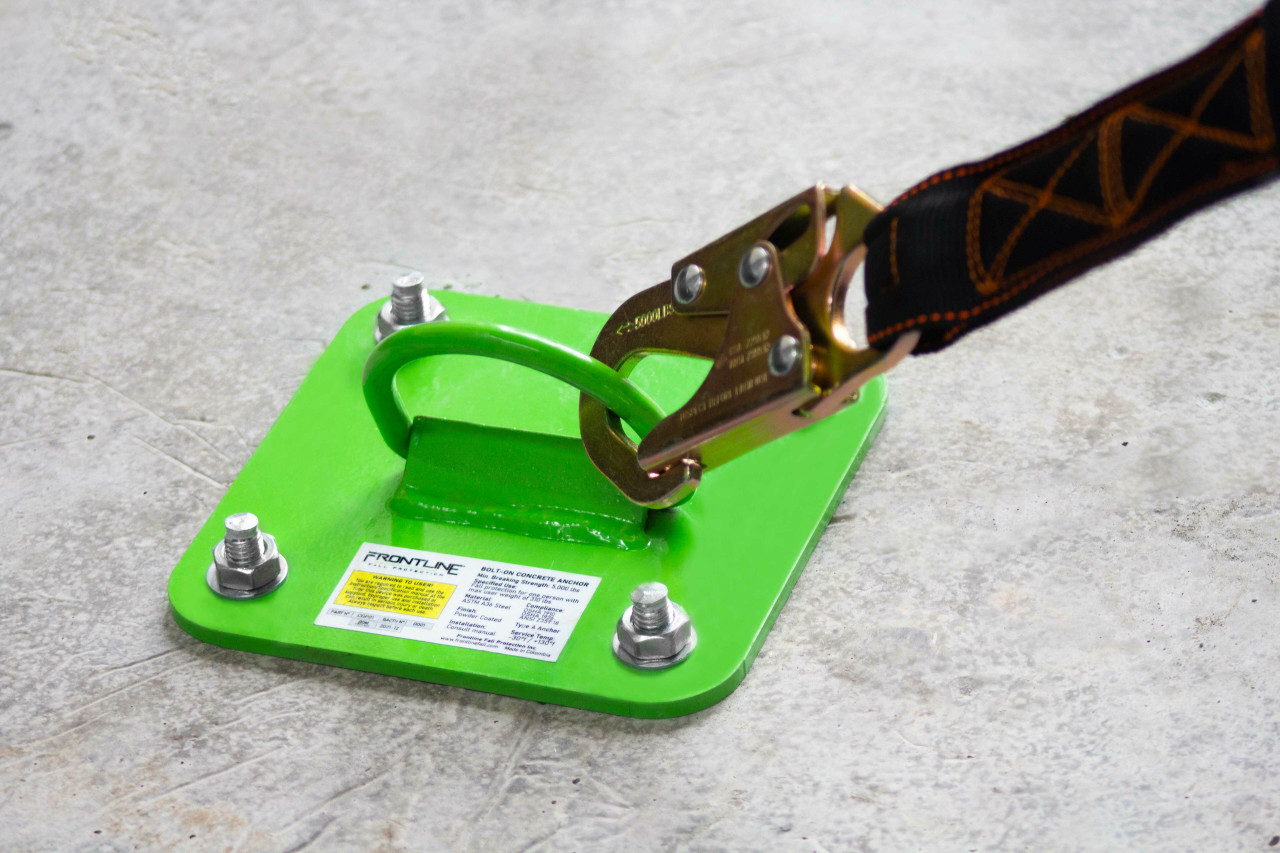

• Designed for fall arrest uses with options for temporary or permanent mounting in hardened concrete or steel frameworks
• Installation requires minimal tools and can be completed swiftly and efficiently
• Features durable powder coating in high-visibility safety green for enhanced detection
• Versatile design allows multiple uses on either concrete or steel surfaces; note that concrete wedge bolts require replacement

Specs and Standards:

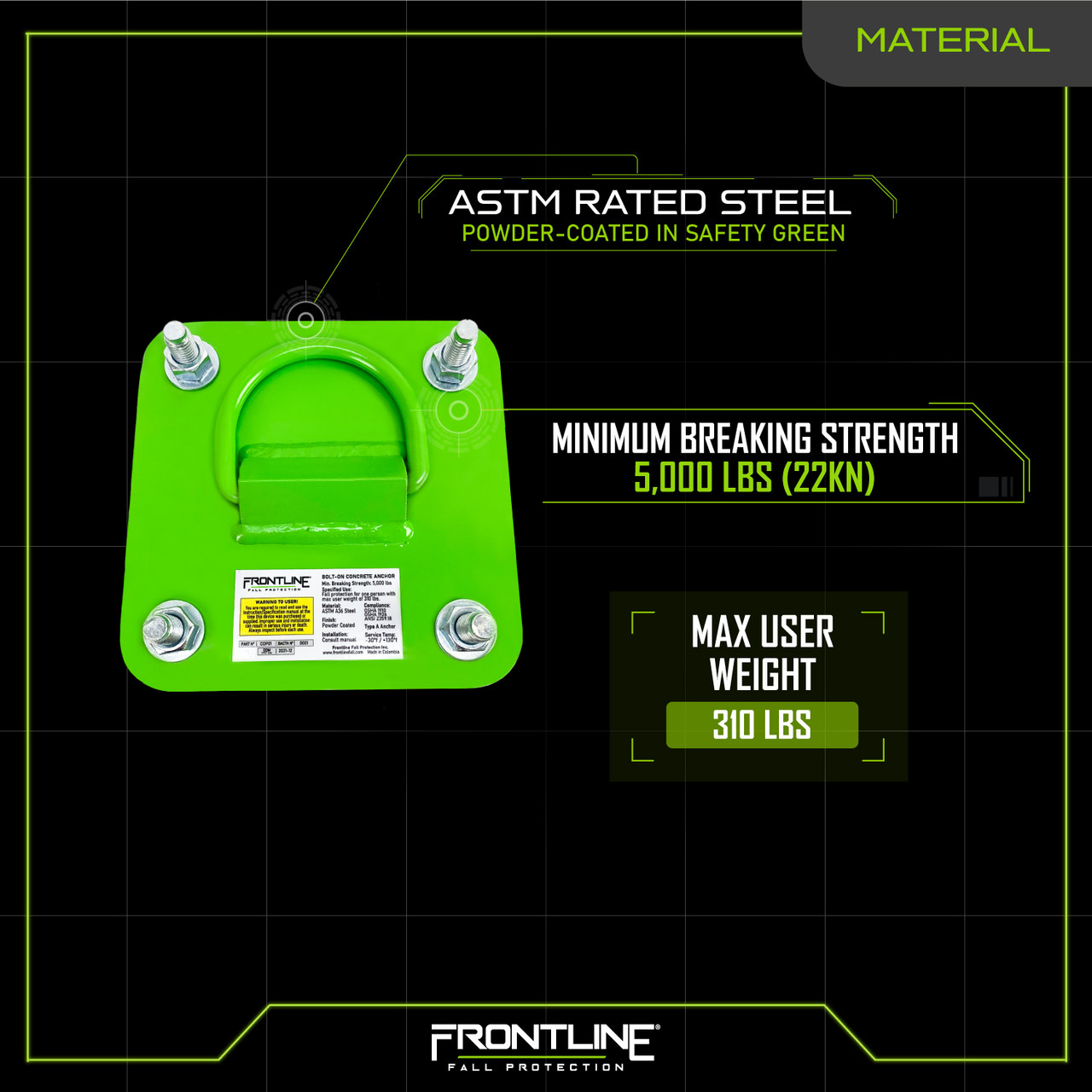

• Minimum Breaking Strength: 5,000 lbs
• Application: Concrete or Steel
• User Maximum Capacity: 130-310 lbs

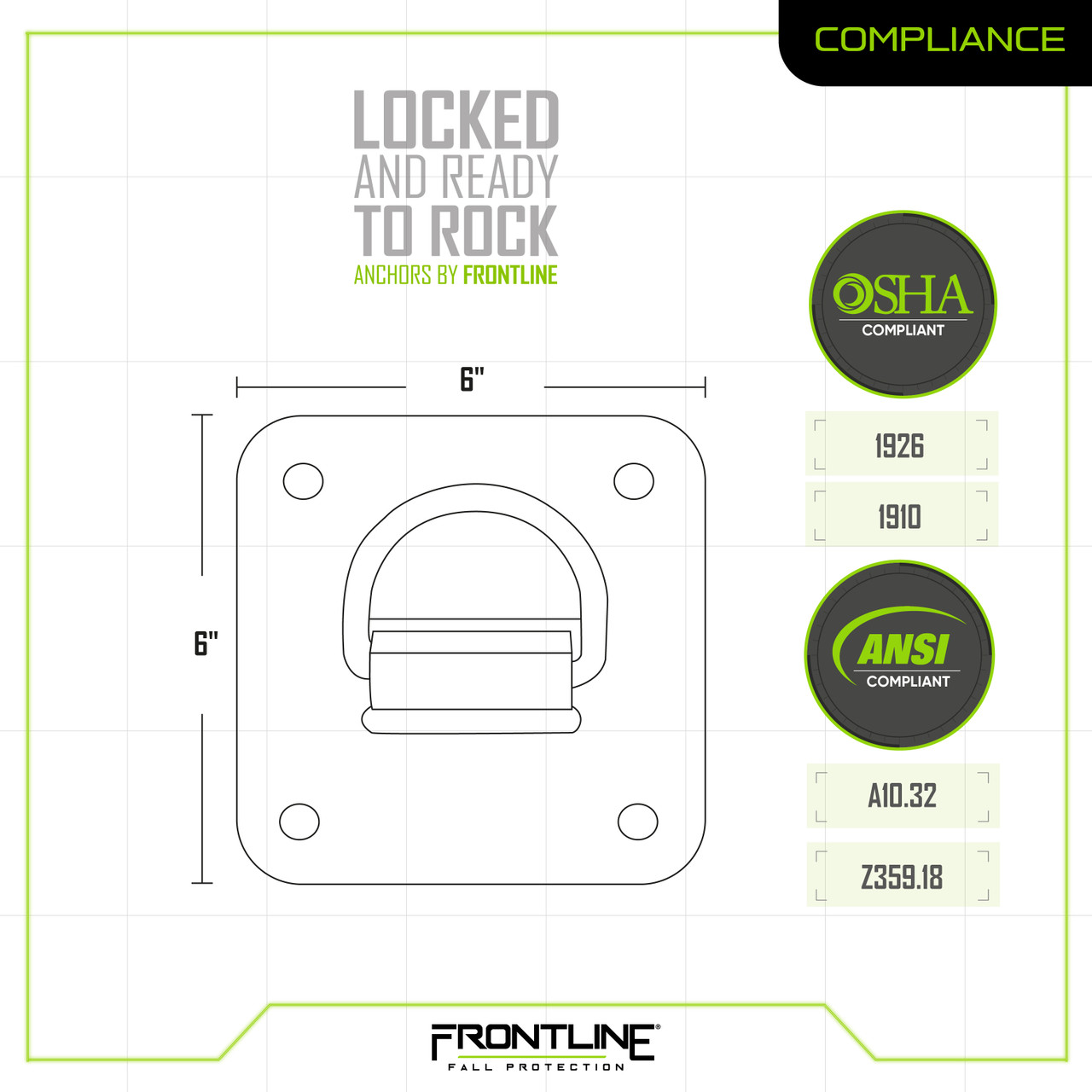

• Compliant with ANSI Z359.18, ANSI A10.32, OSHA 1926 and OSHA 1910
• Verification by Independent ISO/IEC Standard 17025 accredited Testing Laboratory
