Frontline COP02-10K Concrete & Steel 10K Reusable Anchor Plate, ANSI Standards

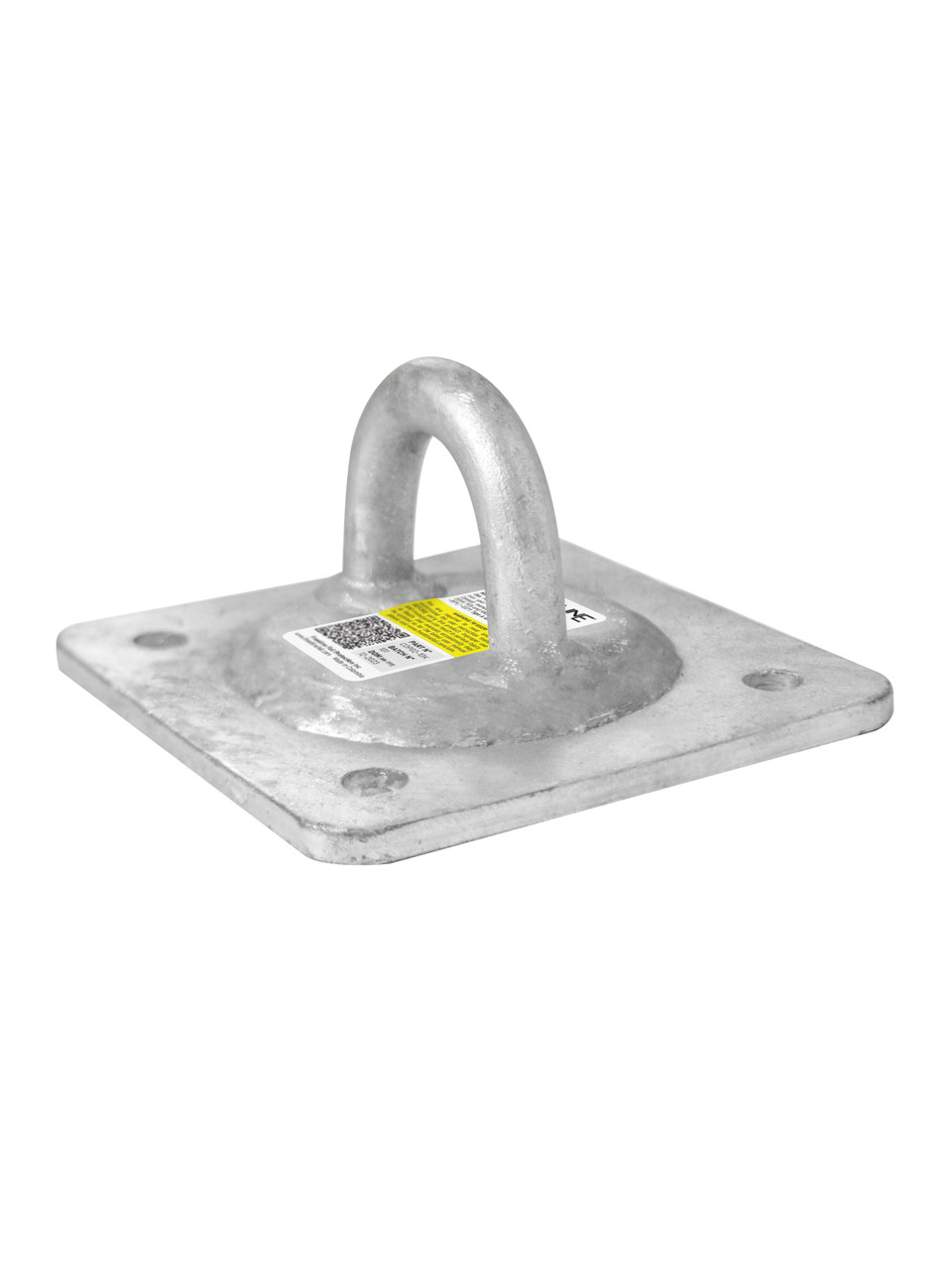

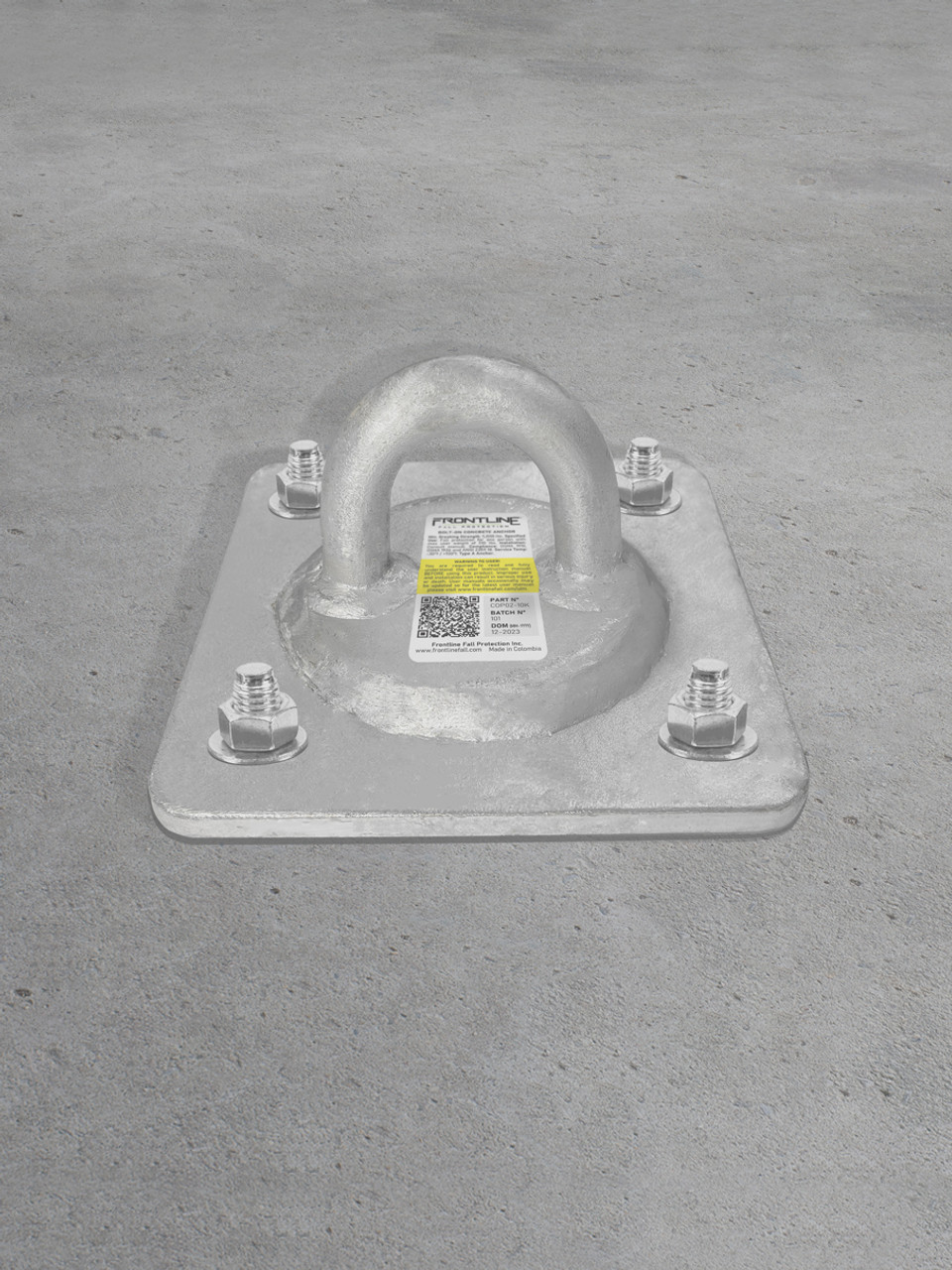

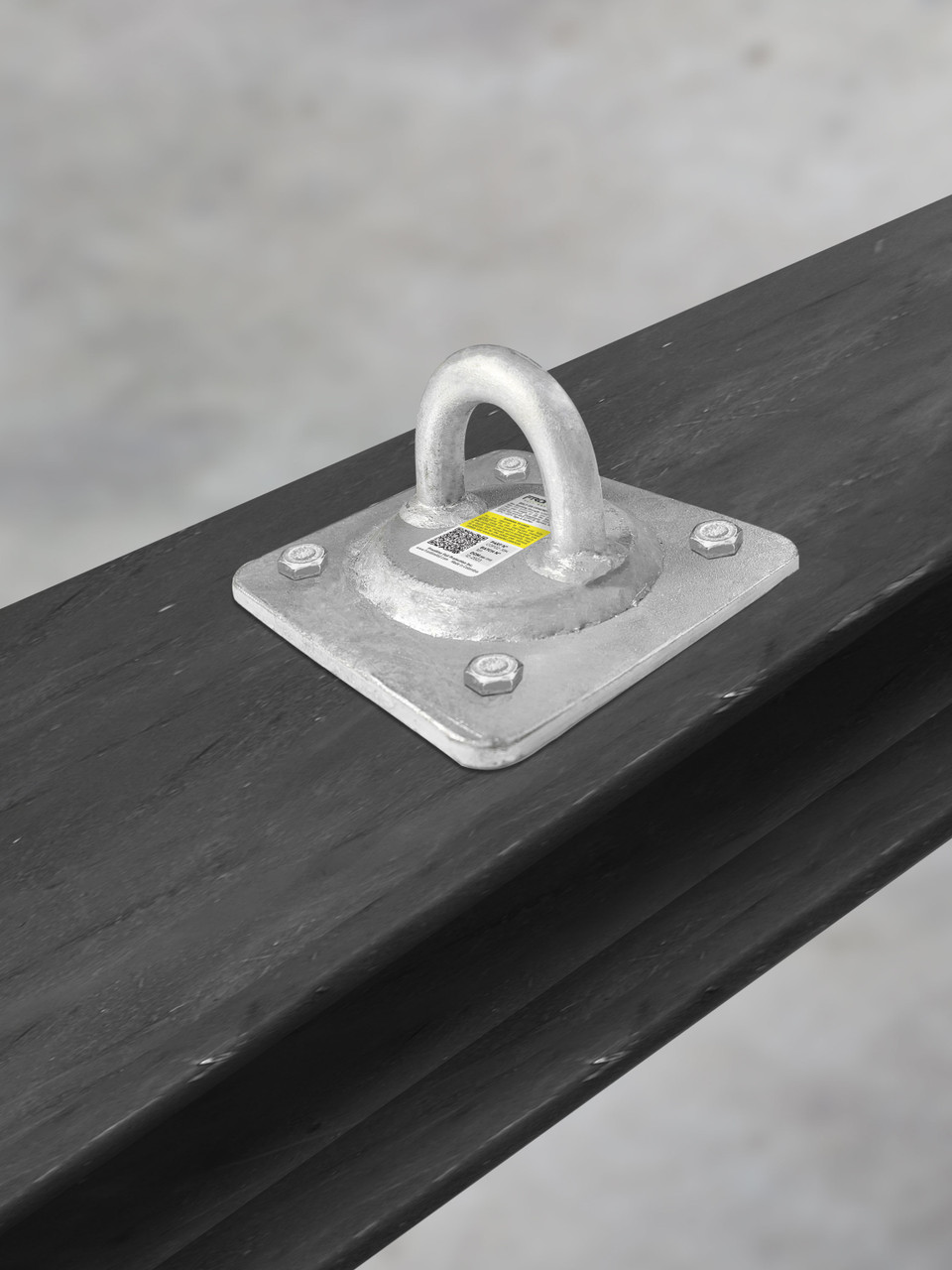

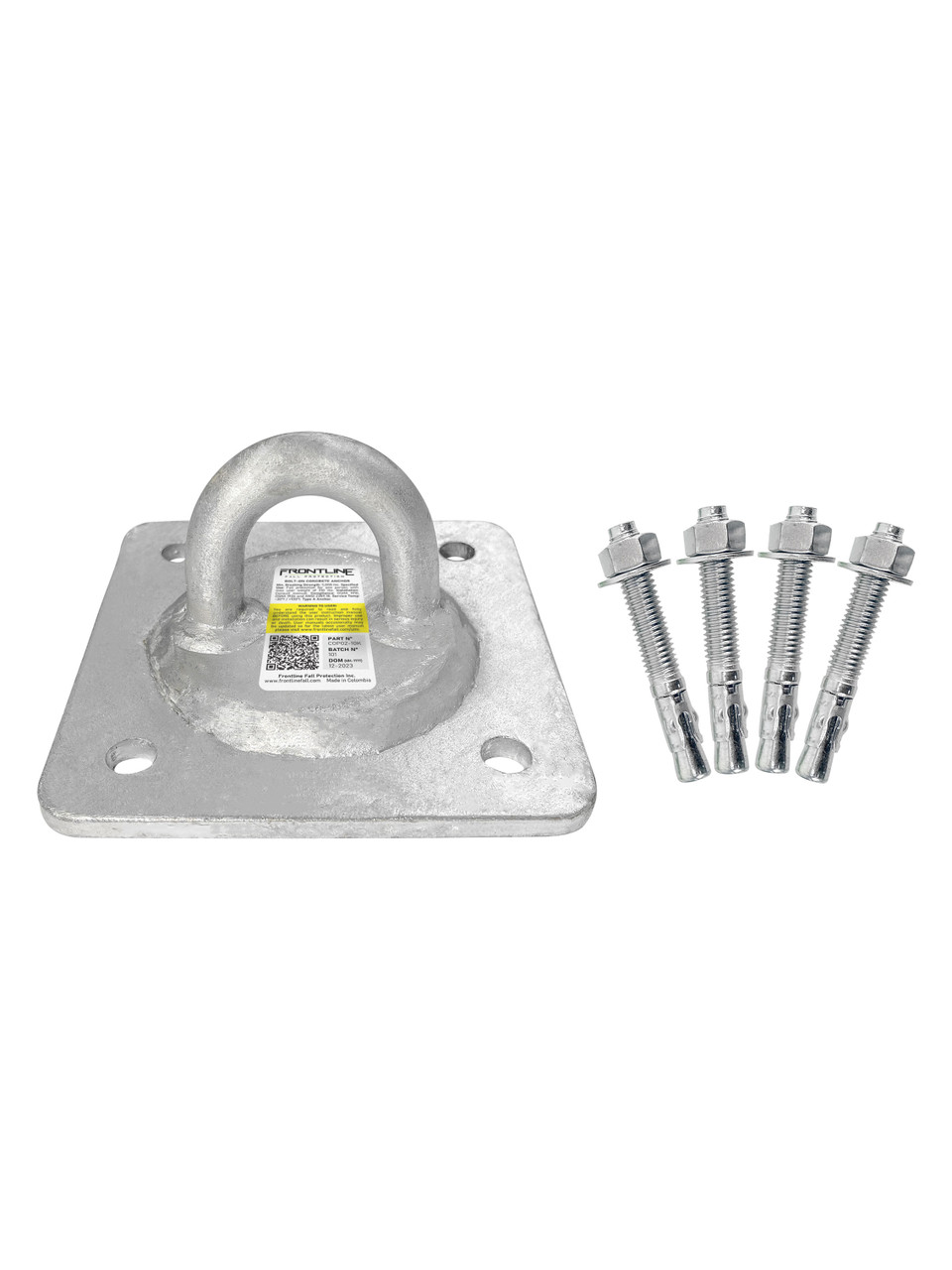

Frontline presents the fall arrest bolt-on anchor plate, engineered specifically for securing to concrete walls, ceilings, columns, or various concrete and steel structures. The anchor plate offers simple, repeatable use and installs rapidly for both horizontal and vertical applications. The unit includes four pre-drilled mounting holes and comes complete with all necessary concrete anchor bolts, ready for immediate deployment from the package.

Features:

• Constructed from ASTM certified steel, ensuring maximum strength and dependability
• Designed for fall arrest uses in both temporary and permanent installations on cured concrete or steel frameworks
• Installation requires minimal tools and can be completed swiftly and efficiently
• Enhanced durability through hot dipped galvanization process for superior rust resistance
• Versatile design allows repeated use on both concrete and steel surfaces; note that concrete wedge bolts require replacement

Specs and Standards:

• Minimum Breaking Strength: 10,000 lbs
• Application: Concrete or Steel
• User Maximum Capacity: 130-310 lbs

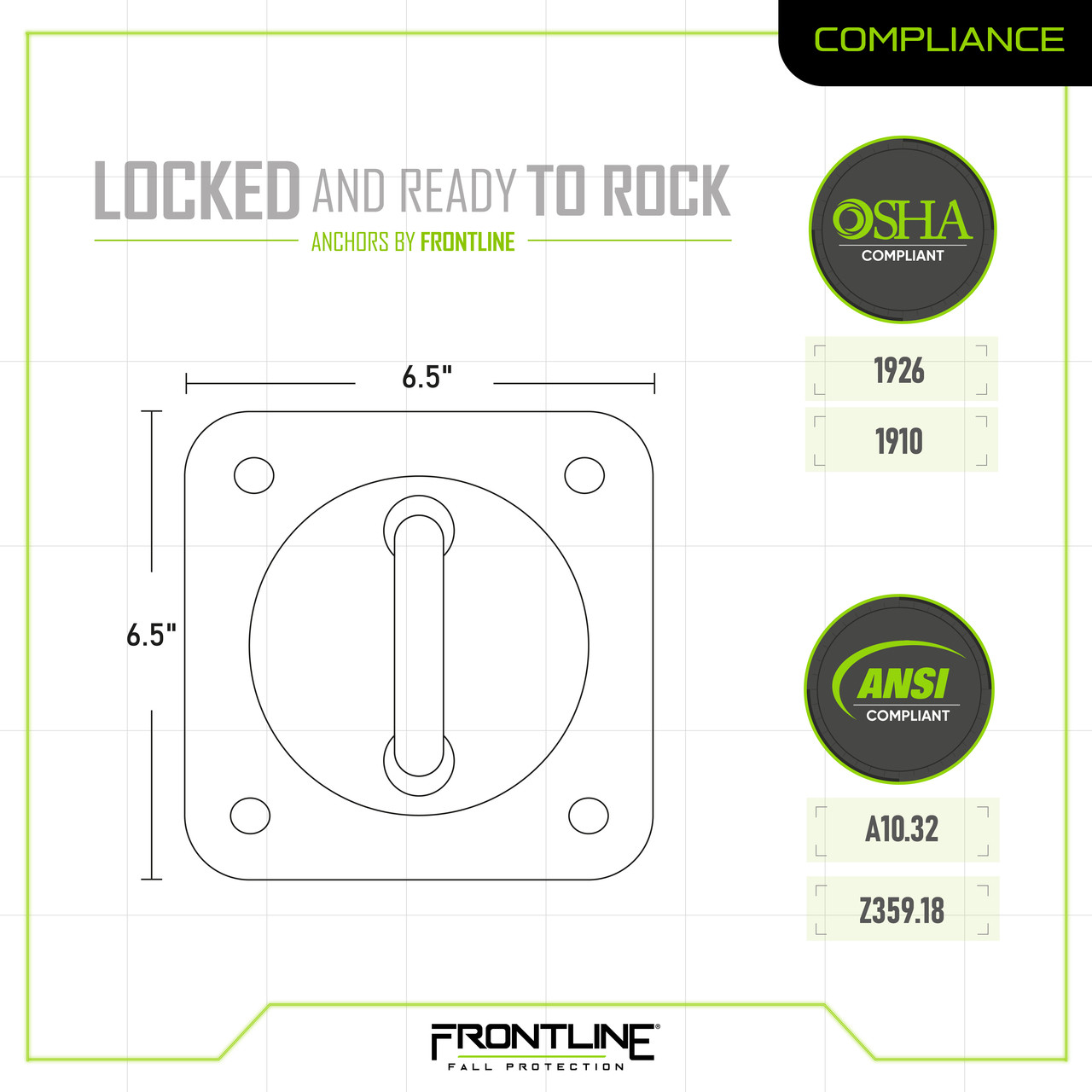

• Complies with or surpasses ANSI Z359.18, ANSI A10.32, OSHA 1926 and OSHA 1910
