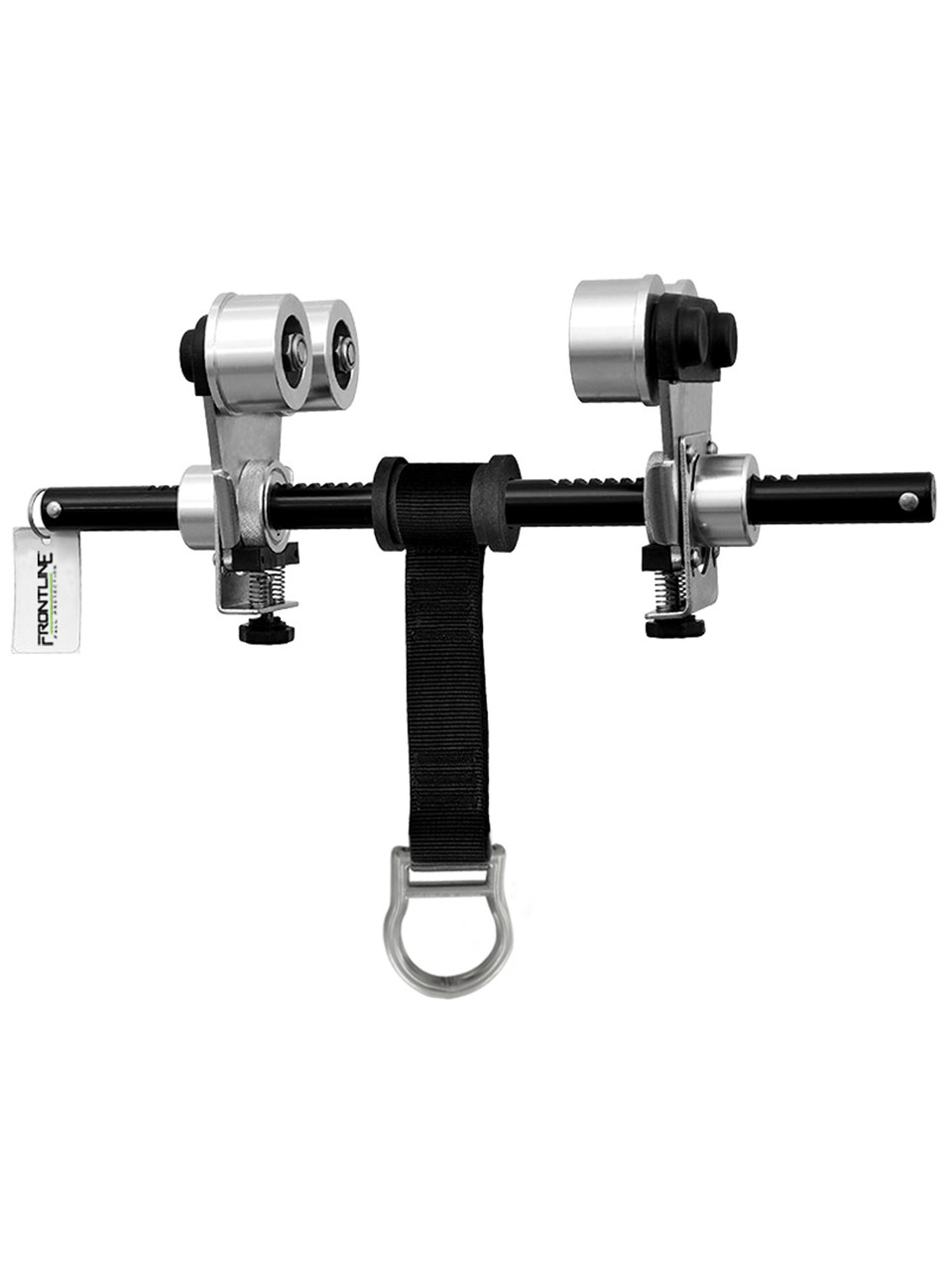

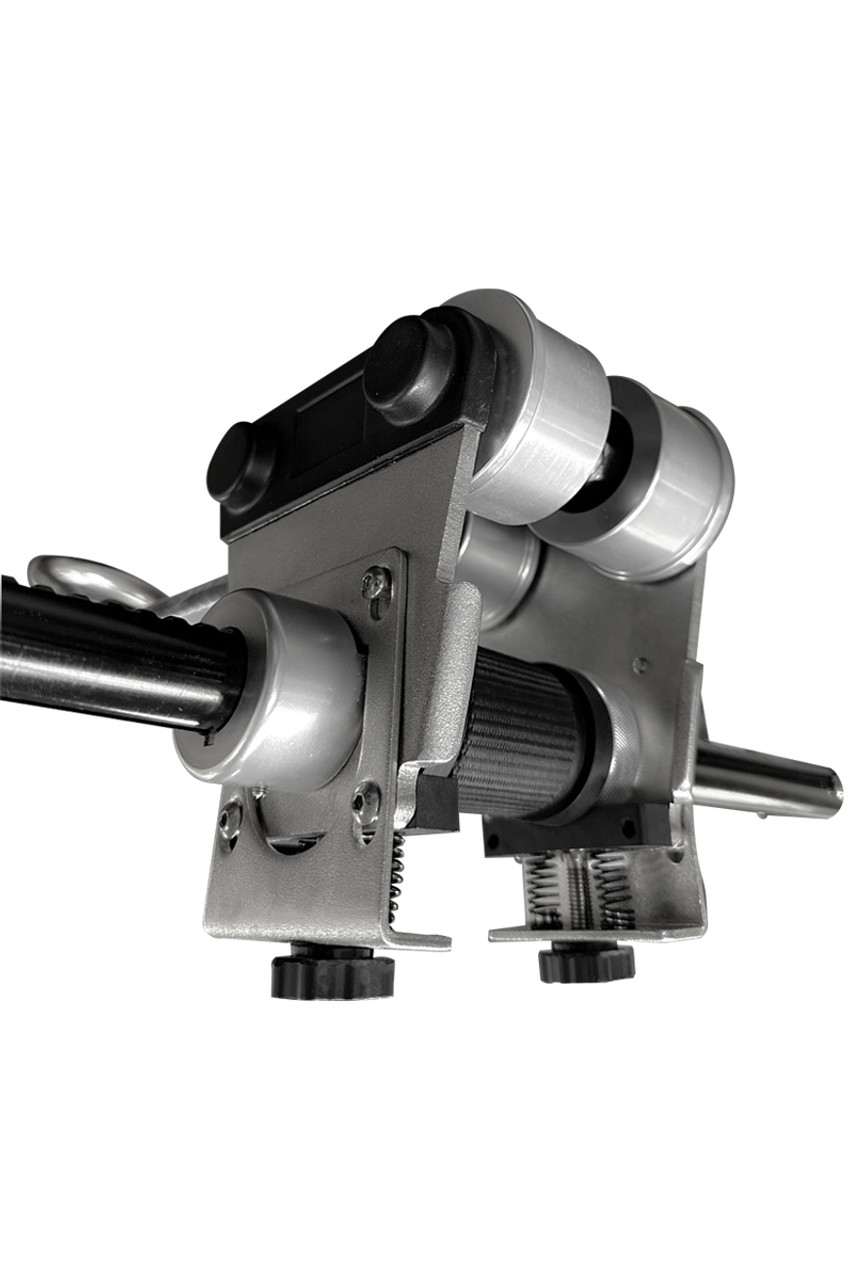

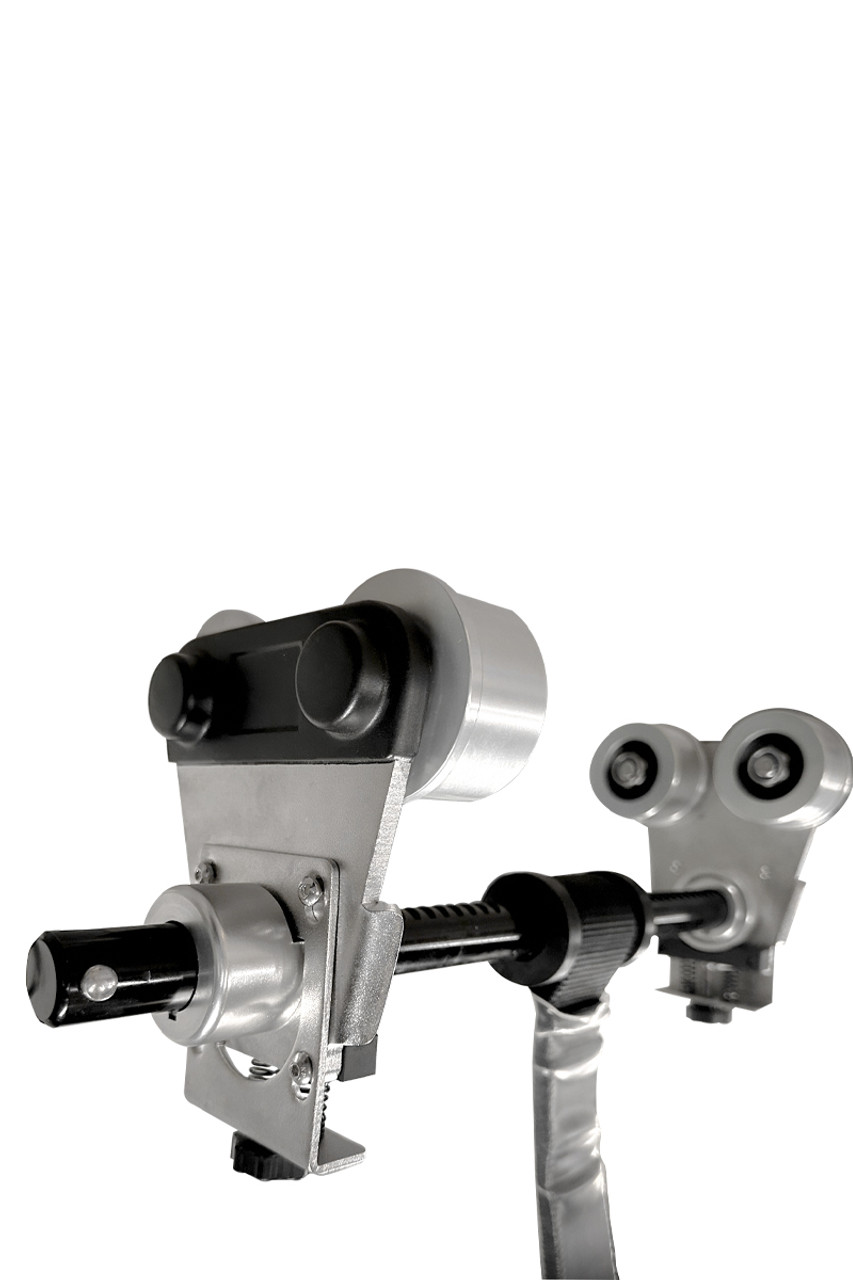

FrontlineŽ ST10HTK Aluminum Beam Trolley Anchor for 3-10" Wide I-Beams

The beam trolley anchor stands out as a premier choice for trailing beam anchoring systems, featuring distinctive durable yet swift-moving aluminum rollers. Enhanced trailing mobility for users translates to greater efficiency while upholding maximum safety standards! This portable and reusable I-beam rolling anchor offers simple installation and removal.

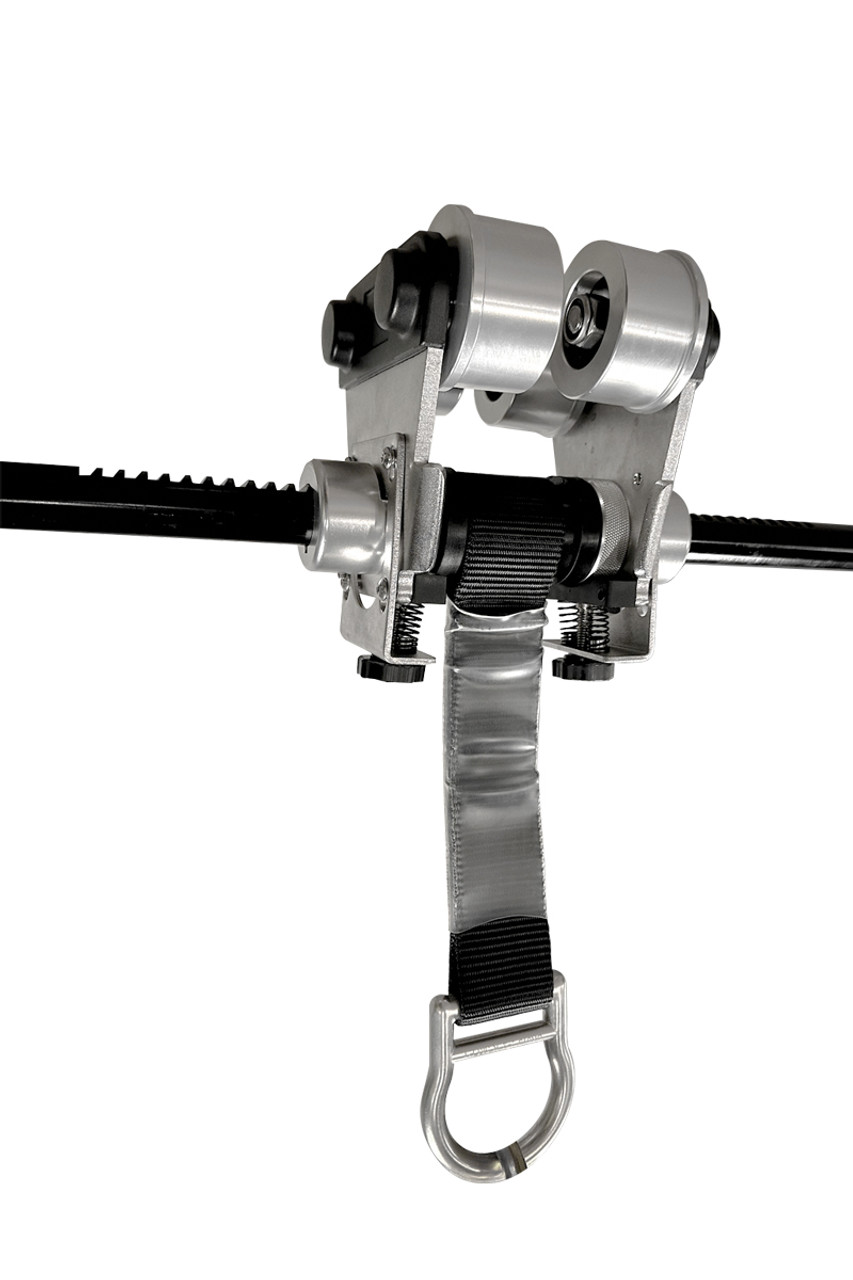

The centrally positioned D-ring on the anchor connector enables smooth movement along beam flanges and allows convenient adjustments from either side. Designed for individual user attachment, this I-beam roller works effectively with both self-retracting lifelines and shock-absorbing lanyards. The anchor system accommodates I-beams ranging from 3" to 10" in width.

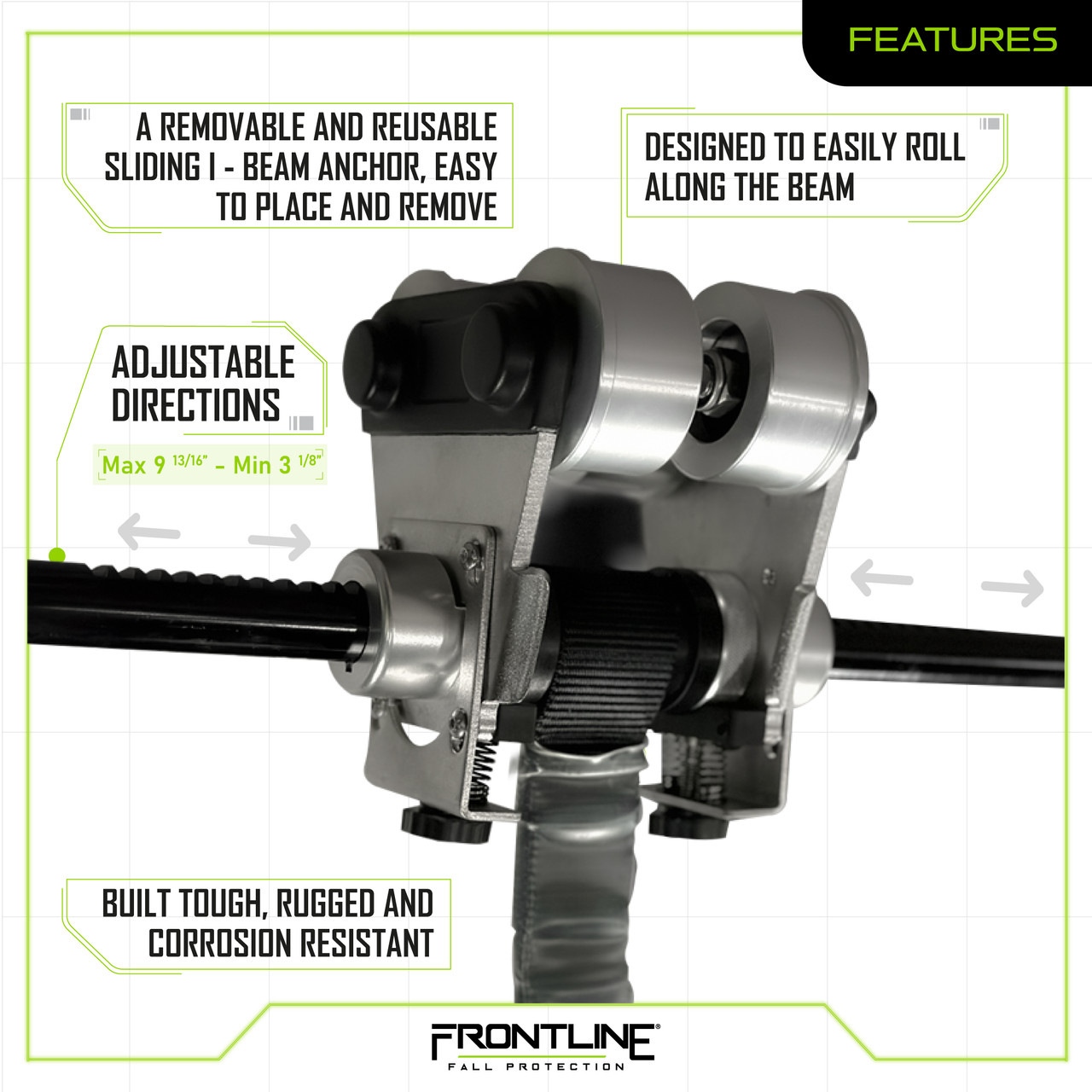

Features:

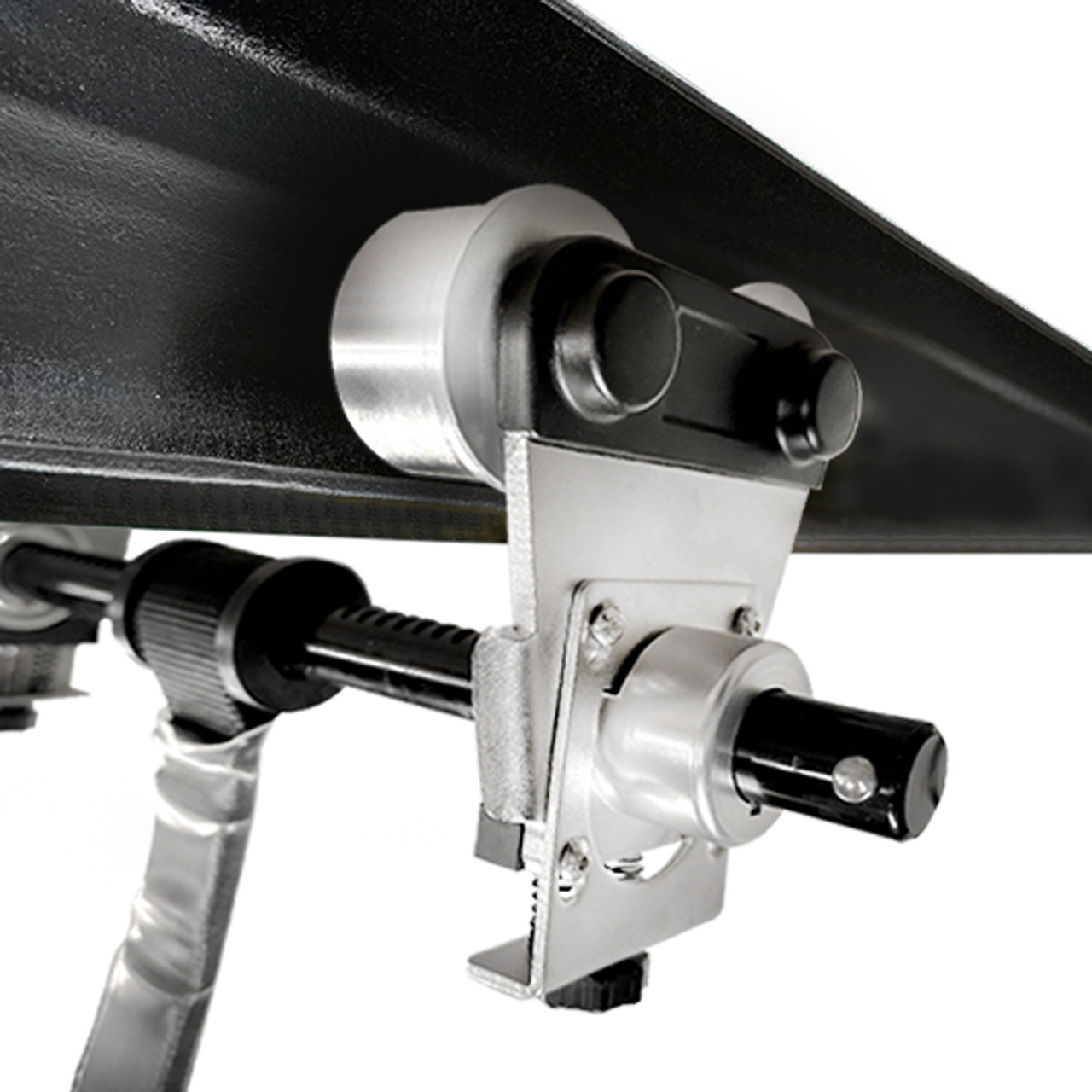

• Roller design enables fluid, efficient and protected movement along the I-beam, following user motion for enhanced productivity
• Constructed with durability, strength and anti-corrosion properties for repeated reliable use
• D-Ring offers 360° rotation and 180° side-to-side pivot, preventing side loading and unintended disconnection
• Device constructed from aluminum components for lightweight portability around workspaces
• Beam Flange Width Range: 3″-10″
• Beam Flange Thickness: Up to 1″

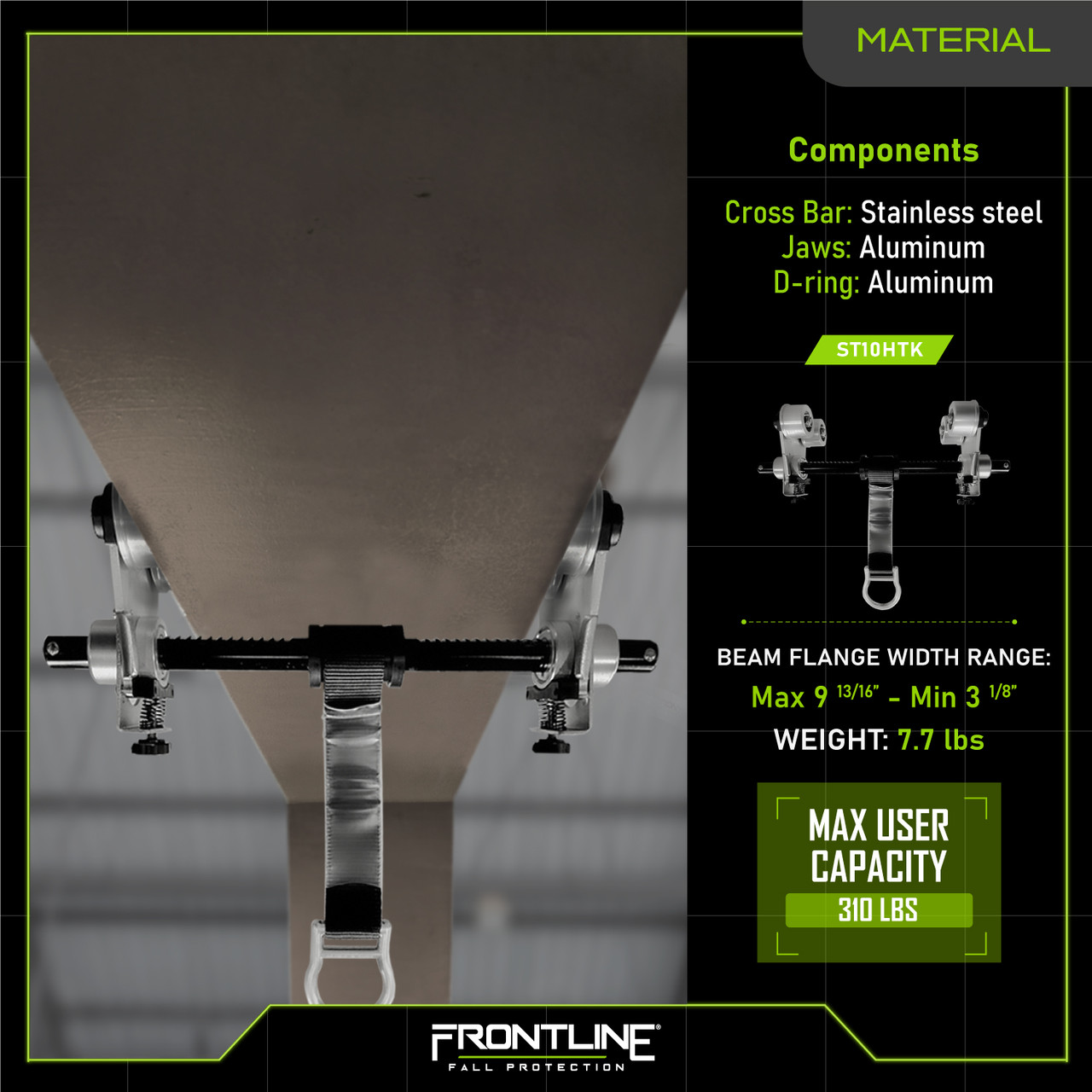

Components:

• Aluminum Cross Bar
• Polyester Webbing
• Zinc Plated Swivel
• Stainless Steel Spring, Hardware

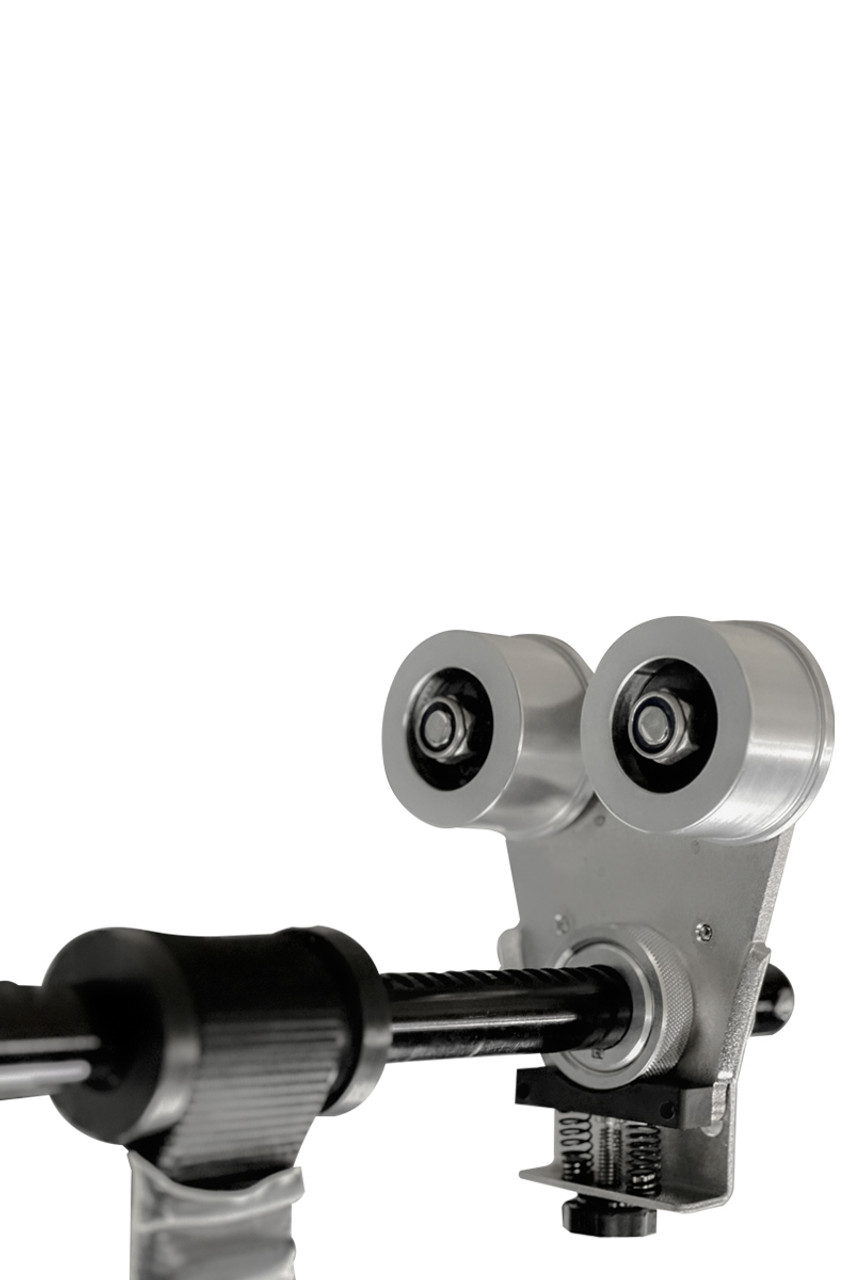

• Aluminum Rollers

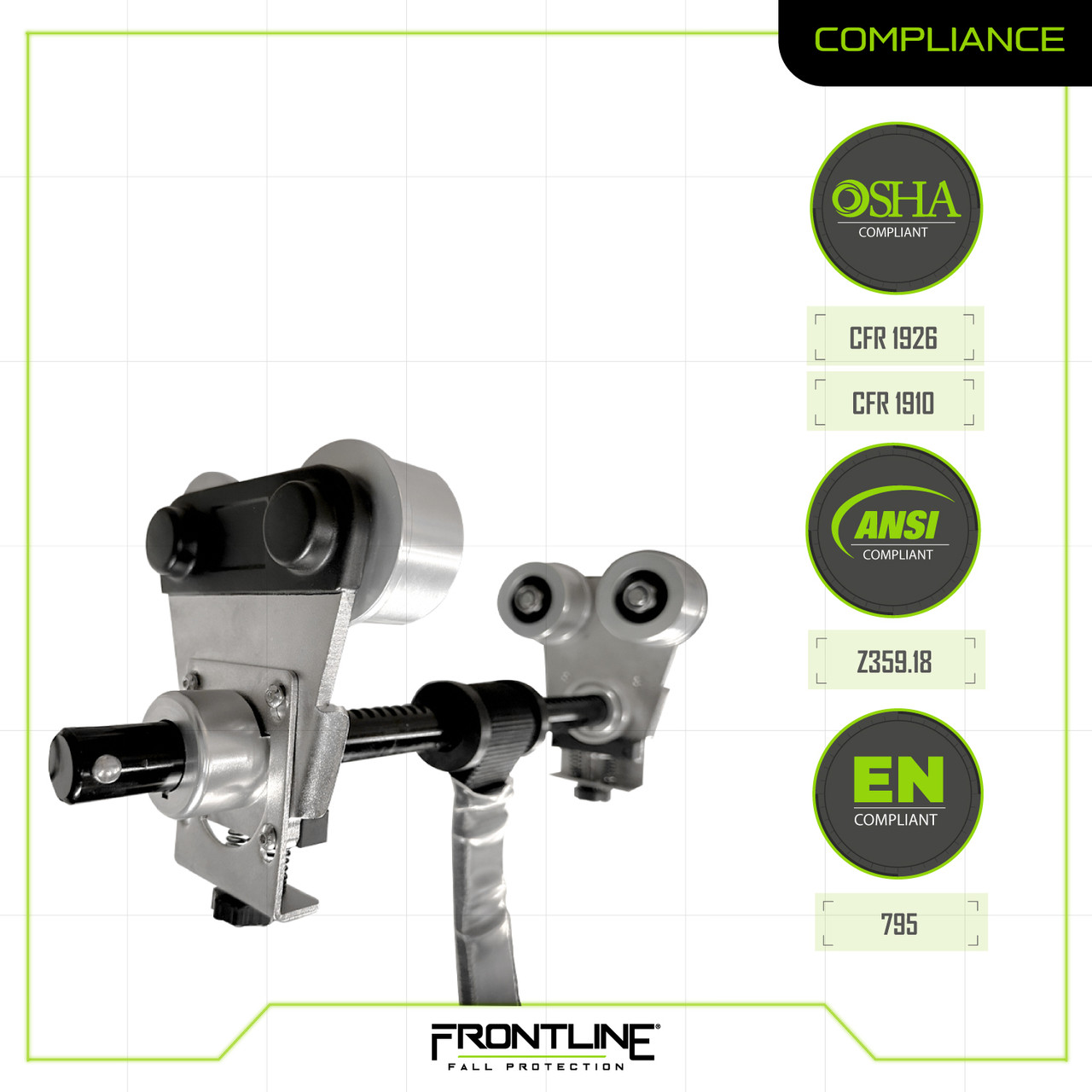

Specs and Standards:

• Static Tensile Strength: 5,000-lbf/22kN
• Max User Capacity: 310 lbs
• Product Weight: 9.2 lbs
