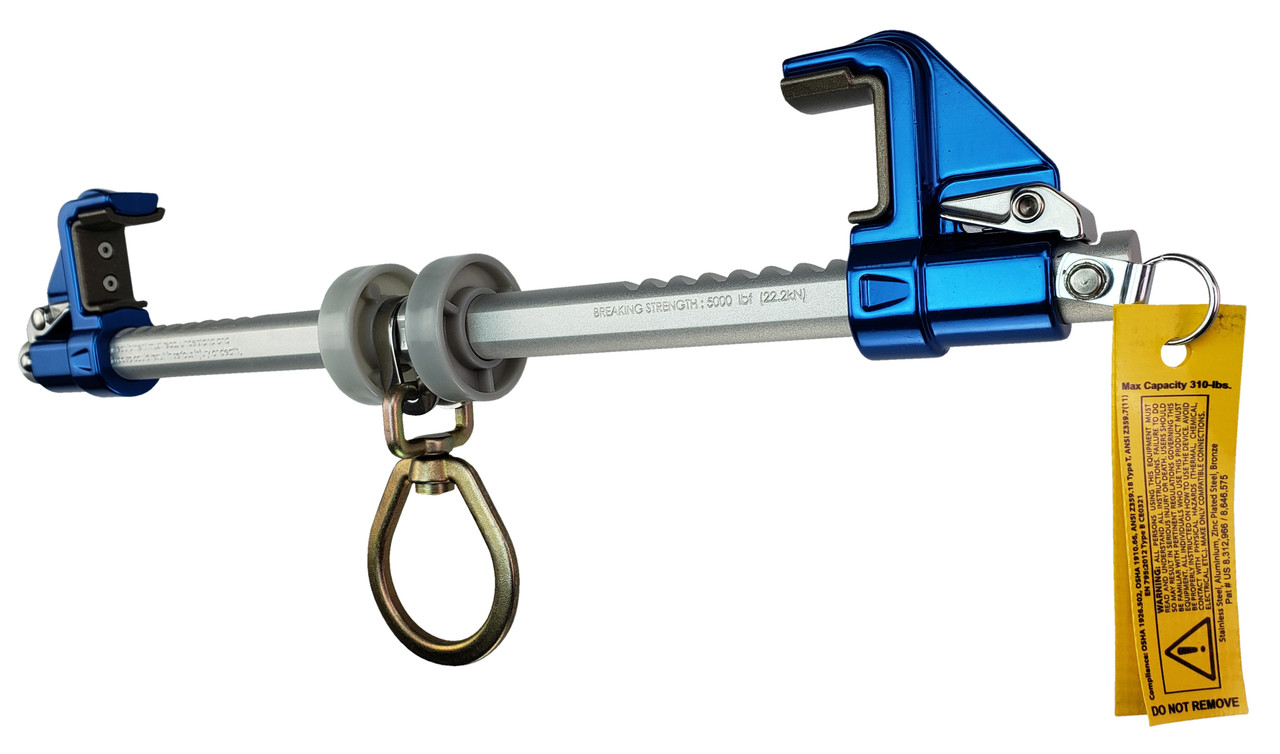

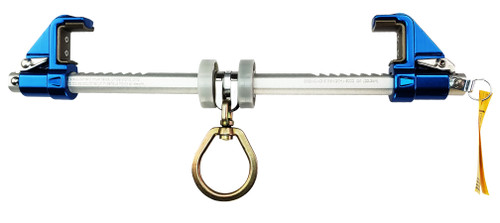

FrontlineŽ ST14AH Aluminum Bantam Beamer Anchor for 3.5 - 14" Wide I-Beams

The Frontline Bantam beamer is a detachable and reusable I-beam sliding anchor that's simple to install and extract. This anchor is engineered to smoothly move along the beam while following the worker's movements.

The D-ring is positioned centrally on the anchor connector for smooth sliding on beam flanges and offers convenient adjustability from either side. Designed for single-person attachment, this I-beam clamp works effectively with both self-retracting lifelines and shock-absorbing lanyards. The Bantam Beamer anchor accommodates I-beams ranging from 3.5" to 14" in width.

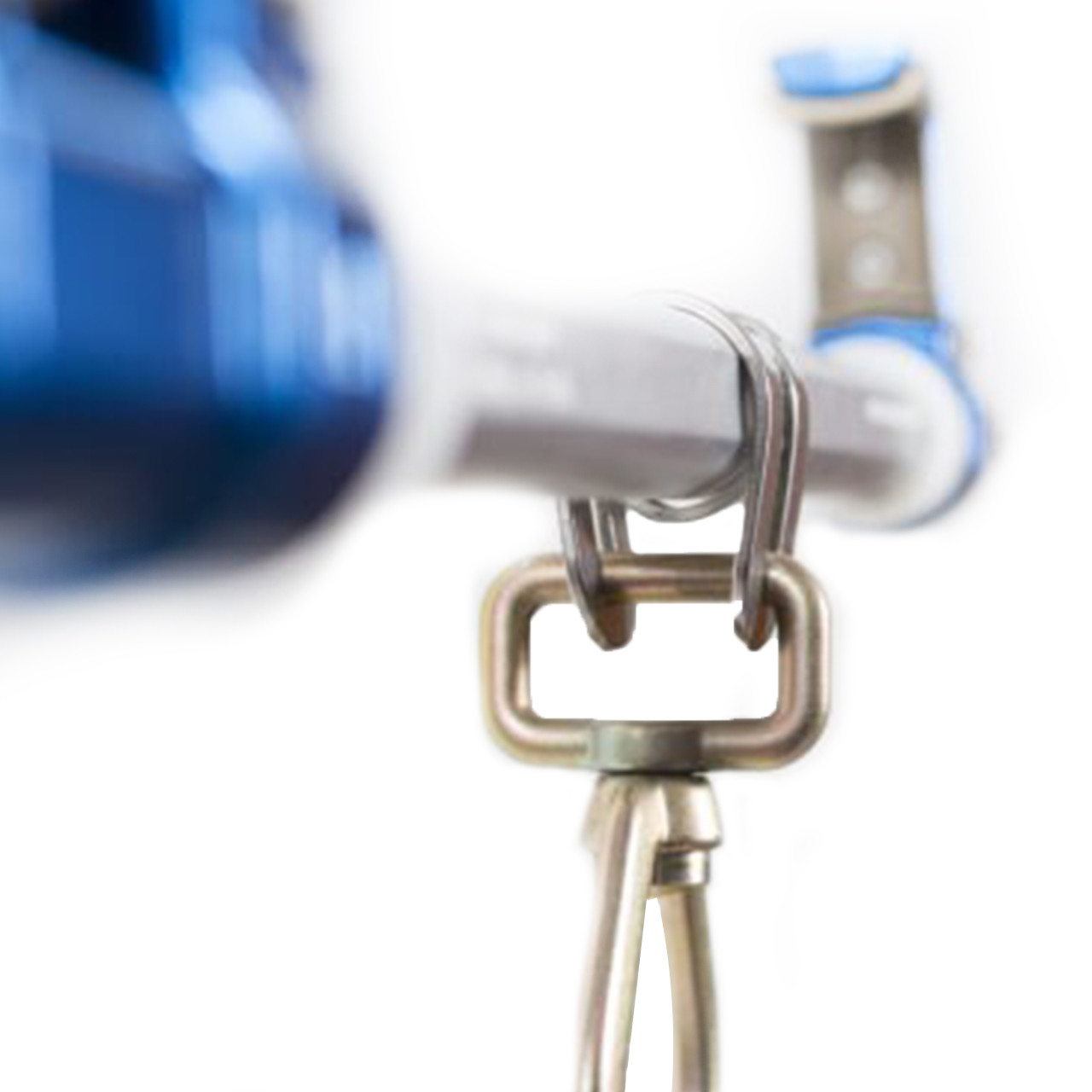

Equipped with a 360-degree rotating D-ring, the Bantam Beamer enables workers to navigate and reach different work zones efficiently without complications. Its durable yet lightweight construction makes this beam clamp portable and serves as a dependable steel anchoring solution.

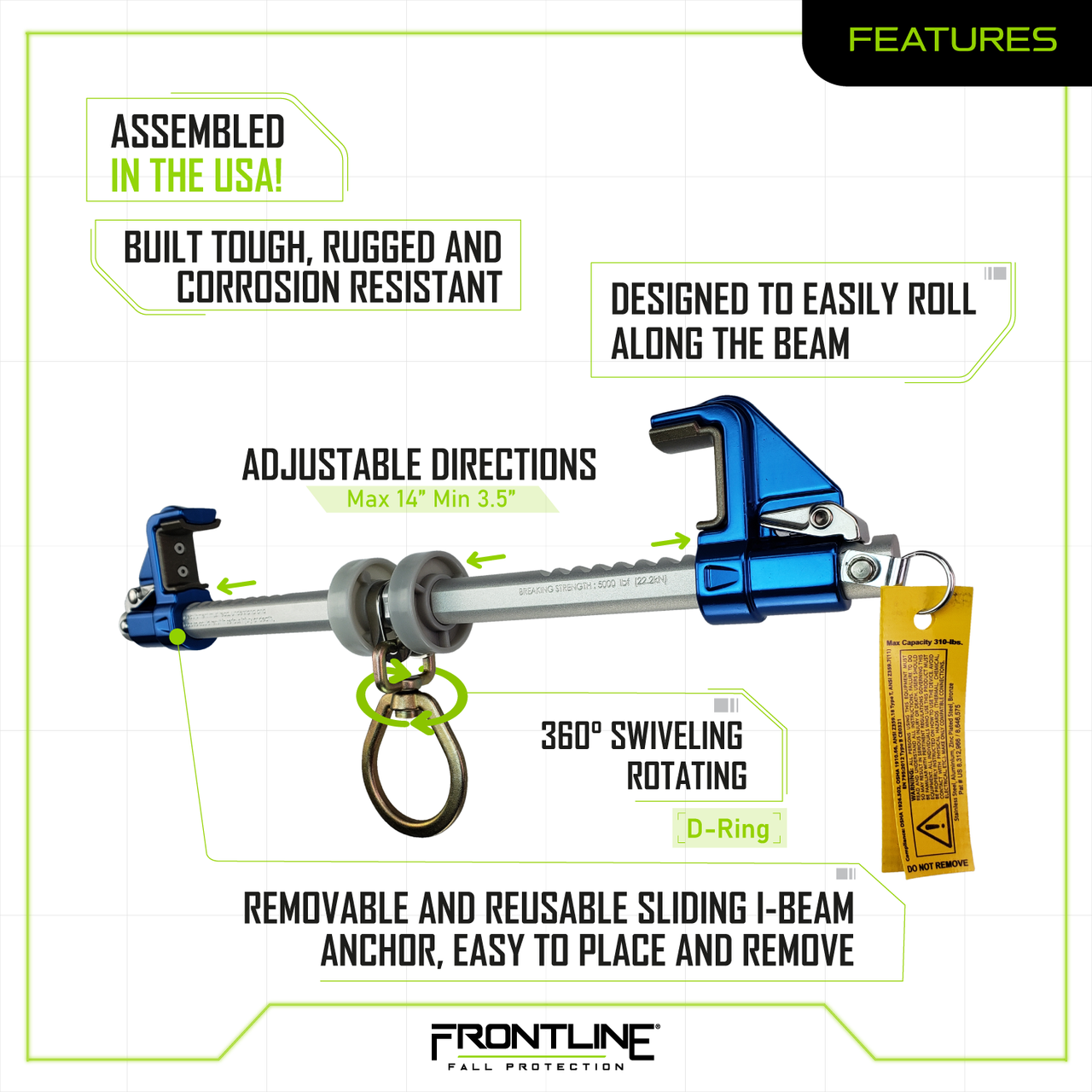

Features:

• Beam anchor moves smoothly while tracking the user during work area transitions on the I-beam
• Constructed durably with corrosion-resistant materials for consistent performance across multiple jobs
• Anchor utilizes aluminum components for lightweight portability around the workspace
• Beam Flange Width Range: 3.5″ - 14″
• Beam Flange Thickness: 0.25″ - 1.25″

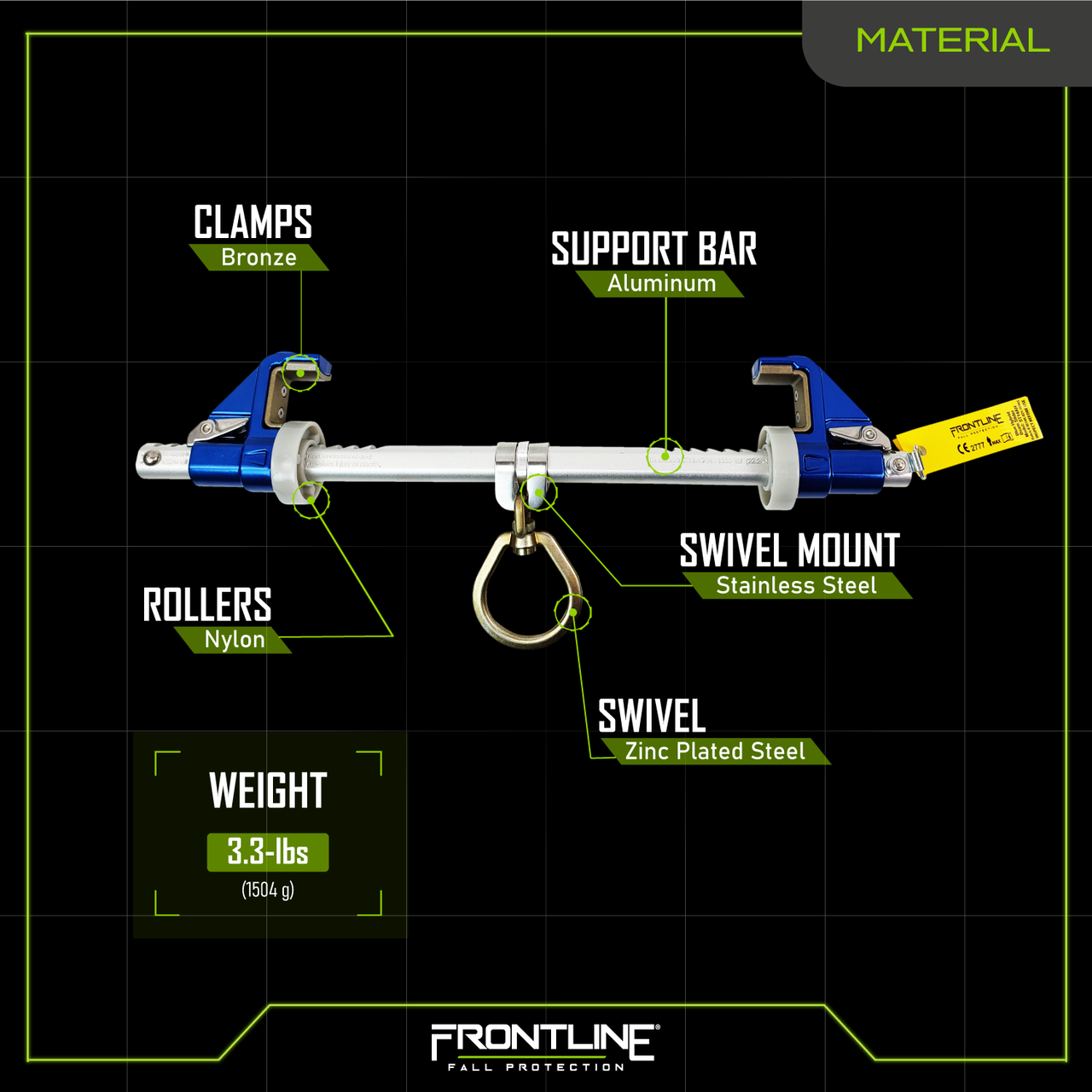

Components:

• Aluminum Cross Bar
• Bronze Clamps
• Stainless Steel D-Ring Bracket
• Zinc Plated Steel D-Ring, Spring, Hardware

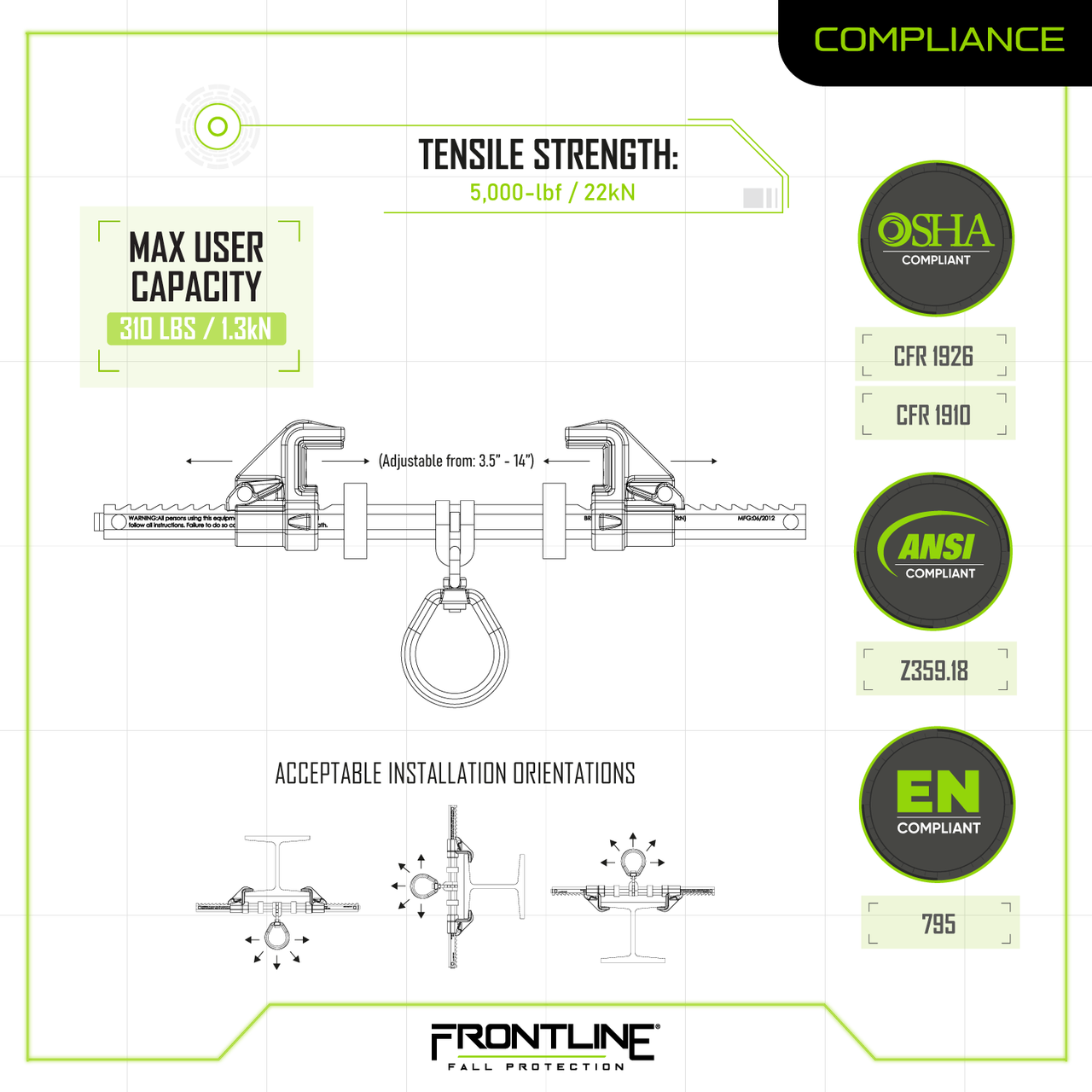

Specs and Standards:

• Static Tensile Strength: 5,000-lbf/22kN
• User Maximum Capacity: 310 lbs
• Product Weight: 3.3 lbs
• Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
