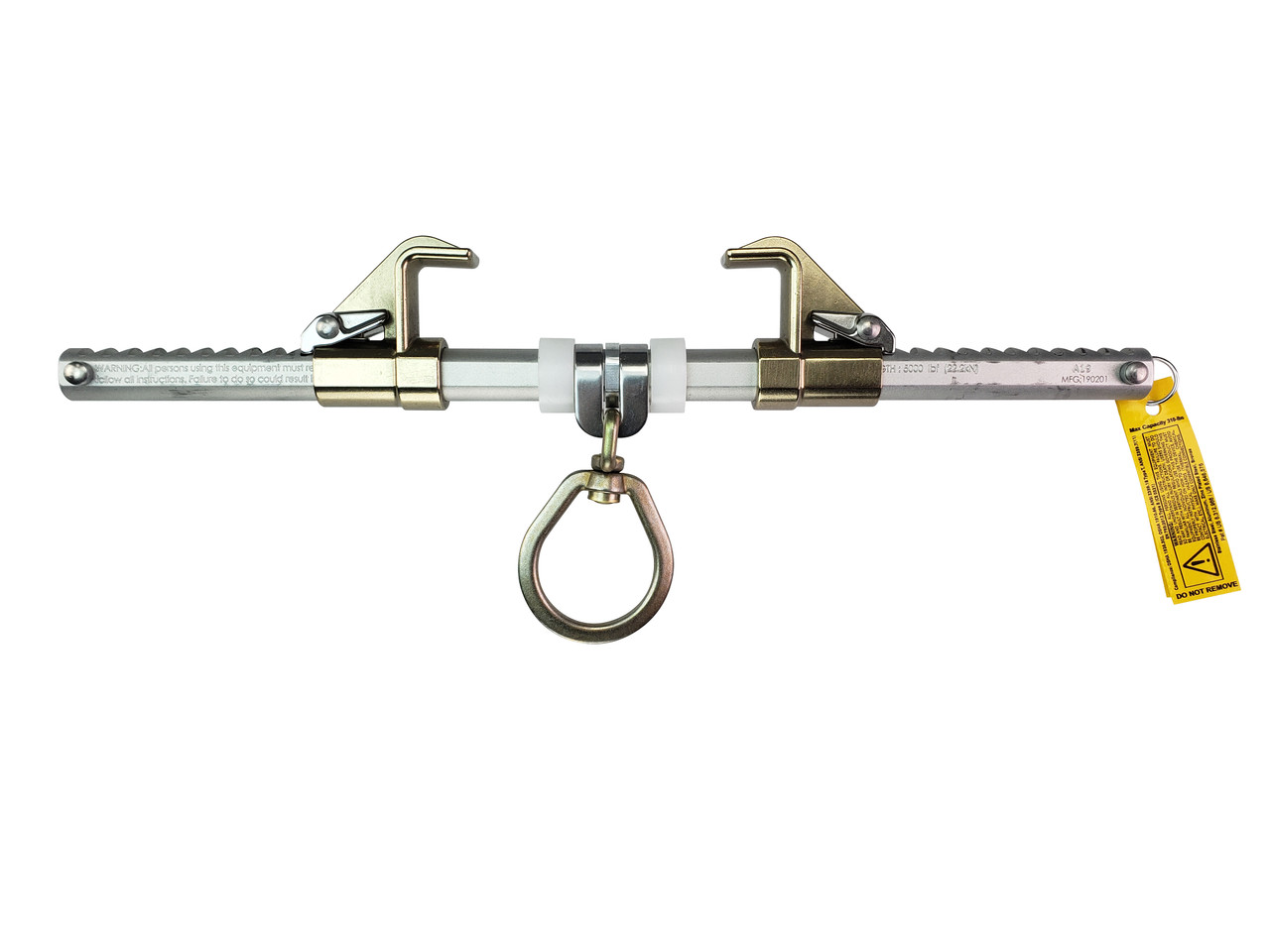

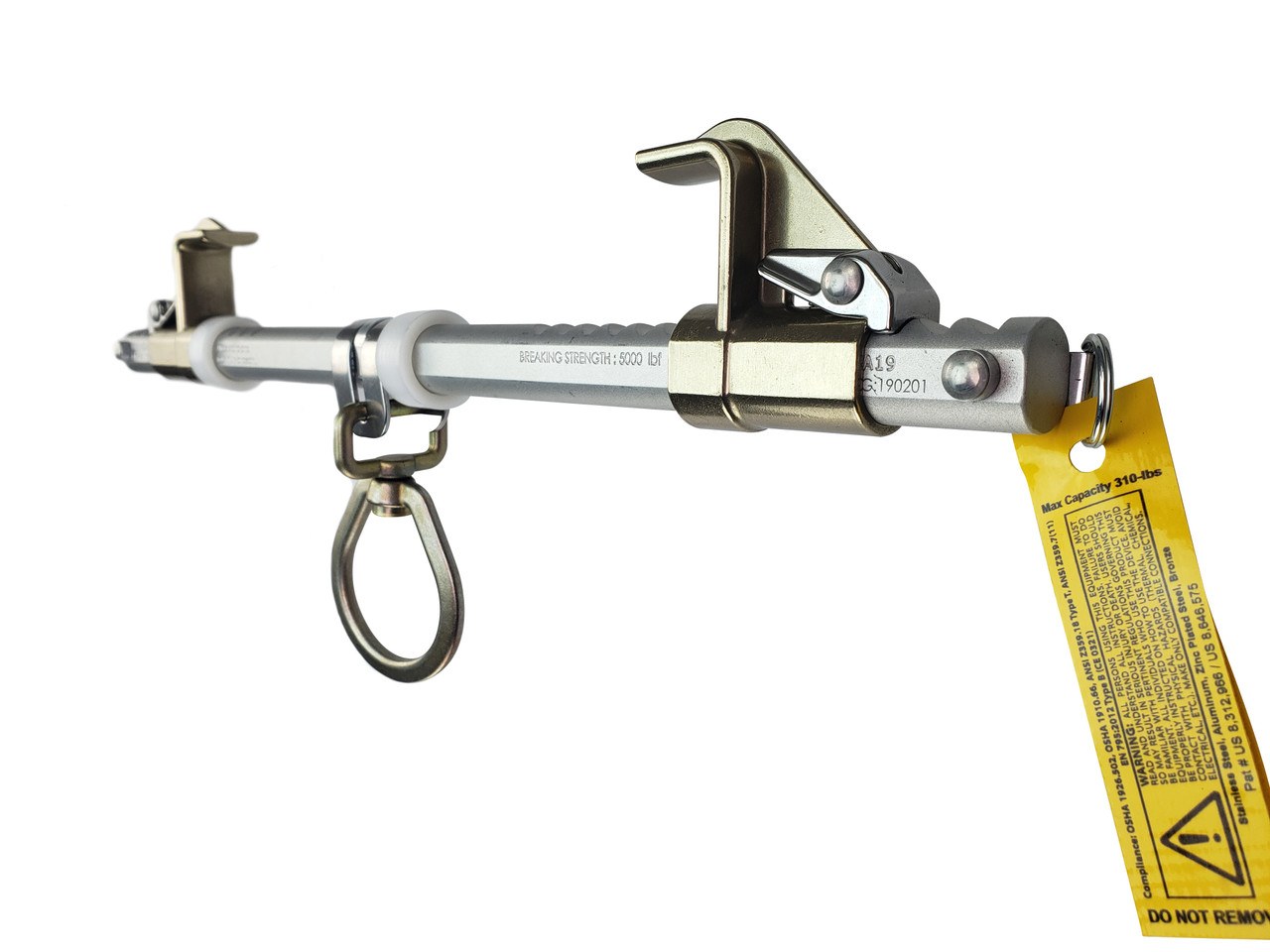

FrontlineŽ ST14SH Easy Silder Beam Walker Anchor for 3.5 - 14" Wide I-Beams

The Frontline Easy Slider Beam Walker is a detachable, single-adjustment beam anchor that can be used repeatedly and moves smoothly along I-beams while following workers. This anchoring device is engineered for effortless movement and installation along structural beams.

The centrally positioned D-ring enables smooth sliding on beam flanges and offers simple one-sided adjustments. Designed for individual user attachment, this I-beam anchor works effectively with both self-retracting lifelines and shock-absorbing lanyards. The Easy Slider accommodates I-beams ranging from 3.5" to 14" in width.

The device incorporates a D-ring that rotates 360 degrees, allowing workers to navigate different work zones efficiently without complications. Its durable yet lightweight construction makes this beam anchor both portable and dependable as a steel anchoring solution.

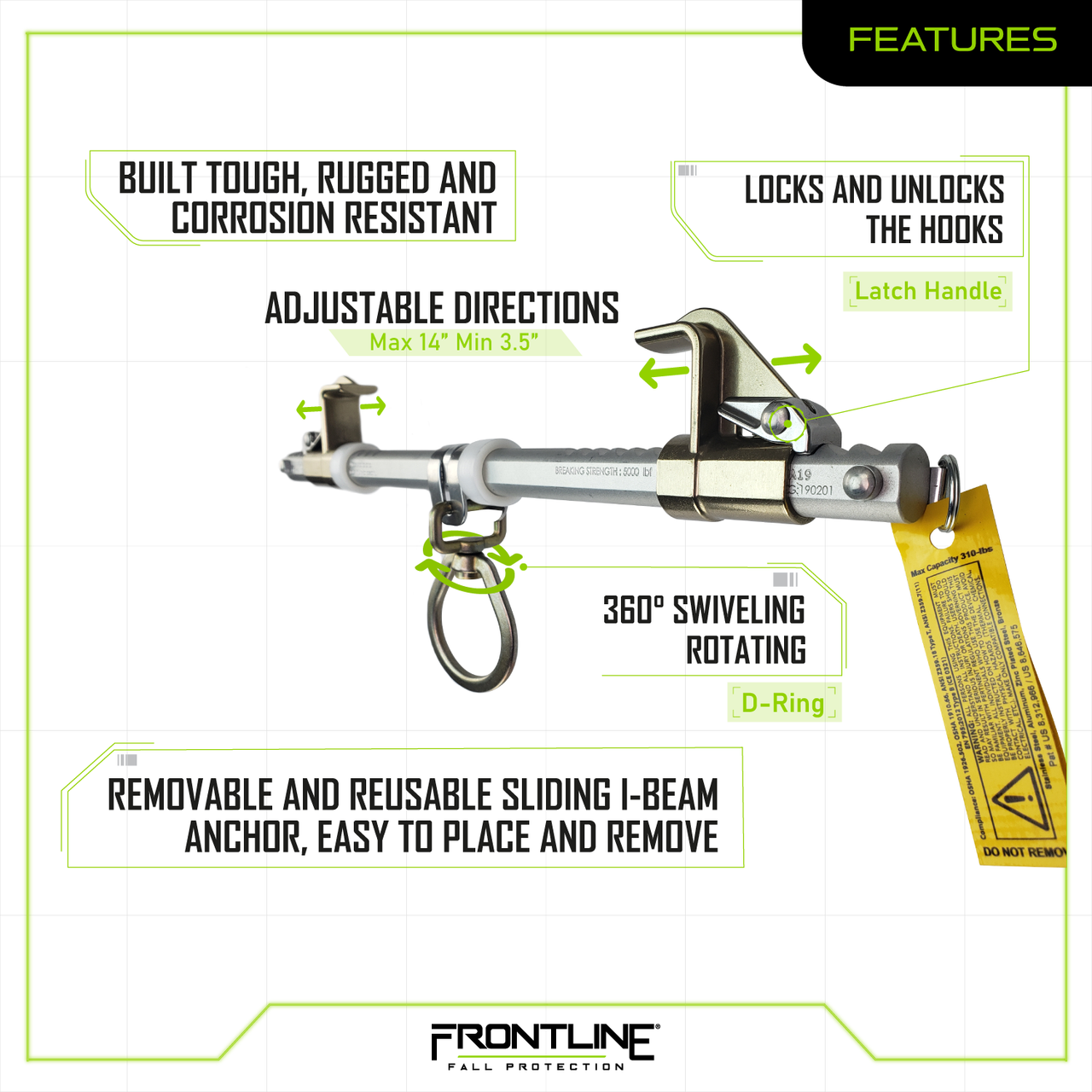

Features:

• Anchor slides smoothly along I-beams, tracking user movement during work zone transitions
• Constructed with robust, rust-resistant materials for sustained performance across multiple jobs
• Manufactured using aluminum components for lightweight portability around work sites
• Beam Flange Width Range: 3.5″ - 14″
• Beam Flange Thickness: 0.25″ - 1.25″

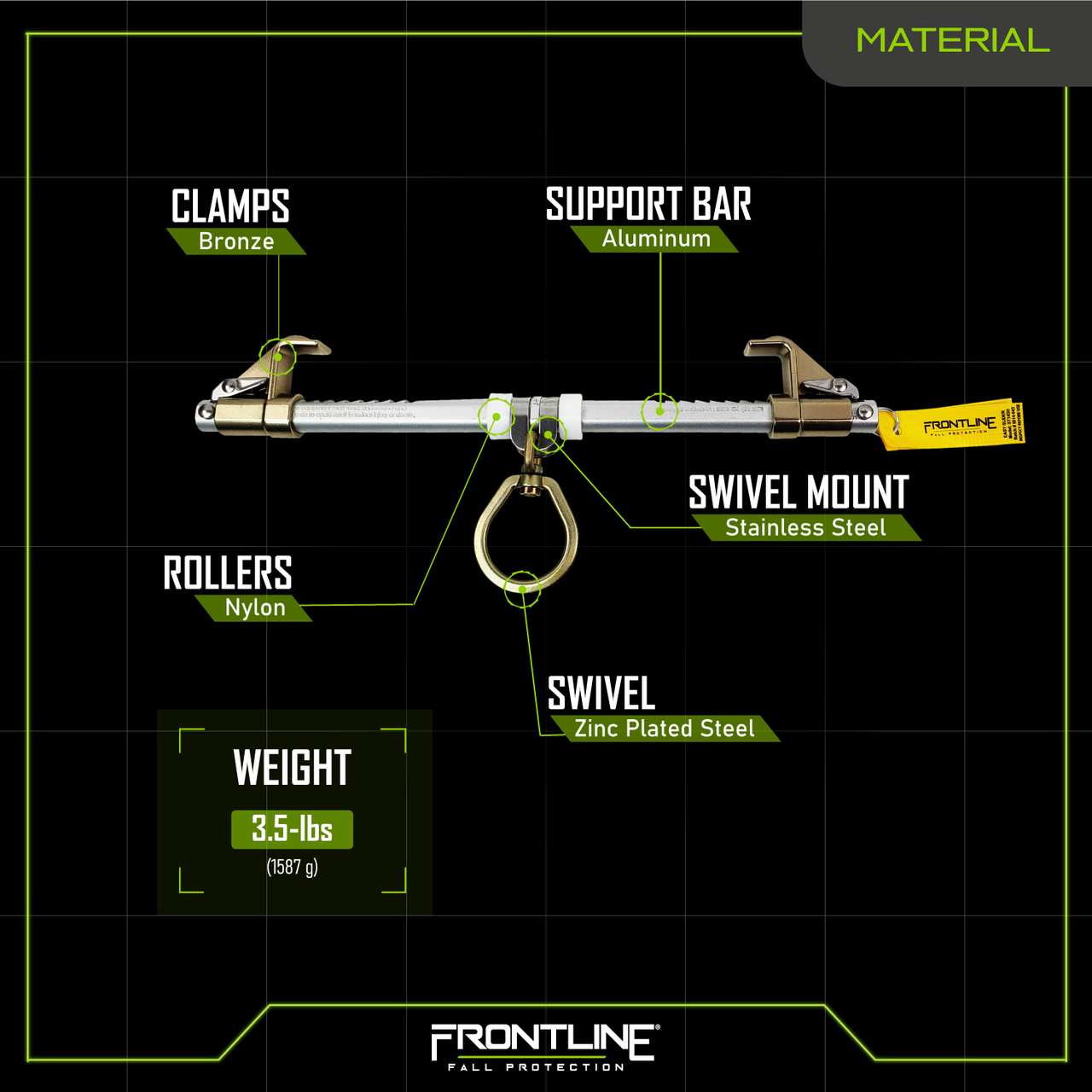

Components:

• Aluminum Cross Bar
• Bronze Clamp
• Stainless Steel D-Ring Bracket
• Zinc Plated Steel D-Ring, Spring, Hardware

Specs and Standards:

• Static Tensile Strength: 5,000-lbf/22kN
• User Maximum Capacity: 310 lbs
• Product Weight: 3.5 lbs
• Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
