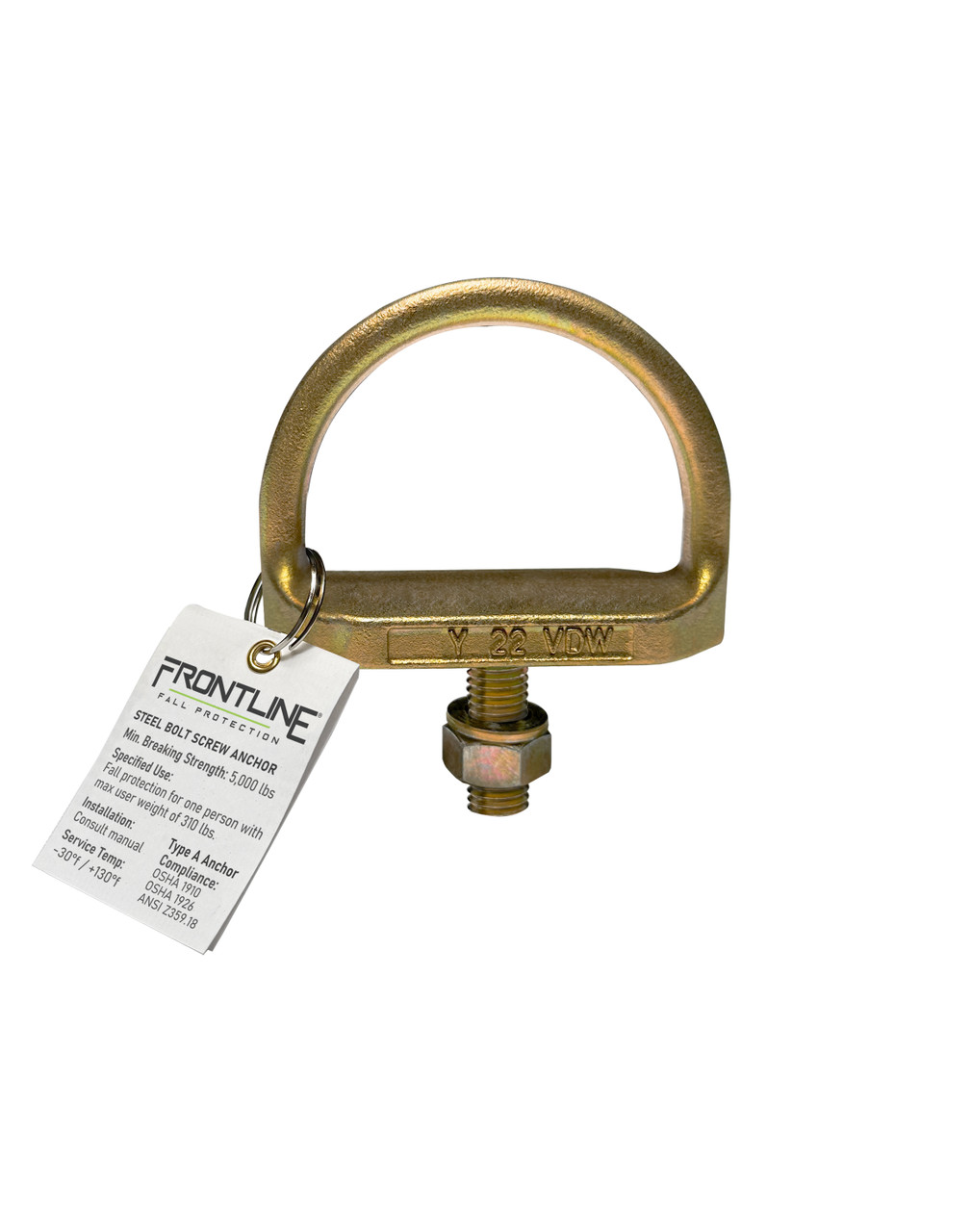

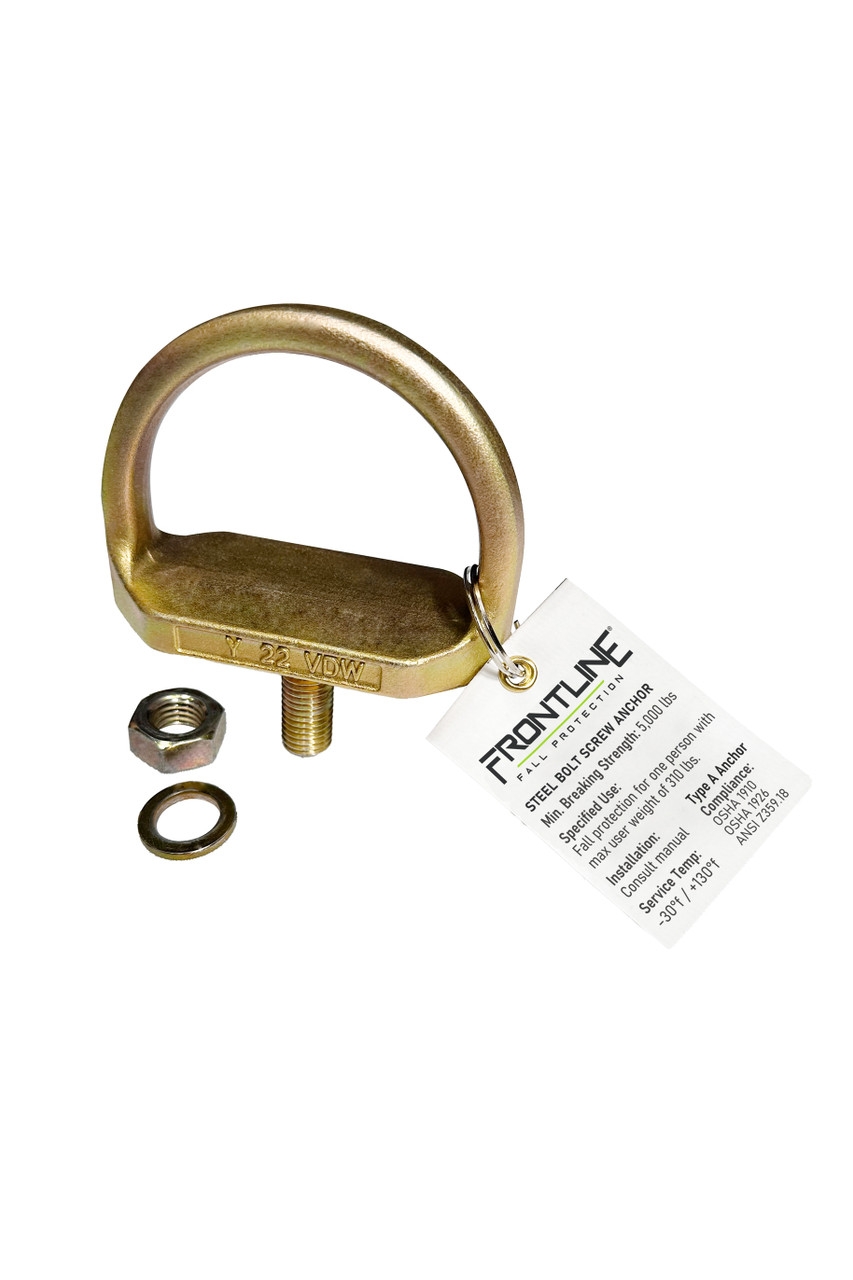

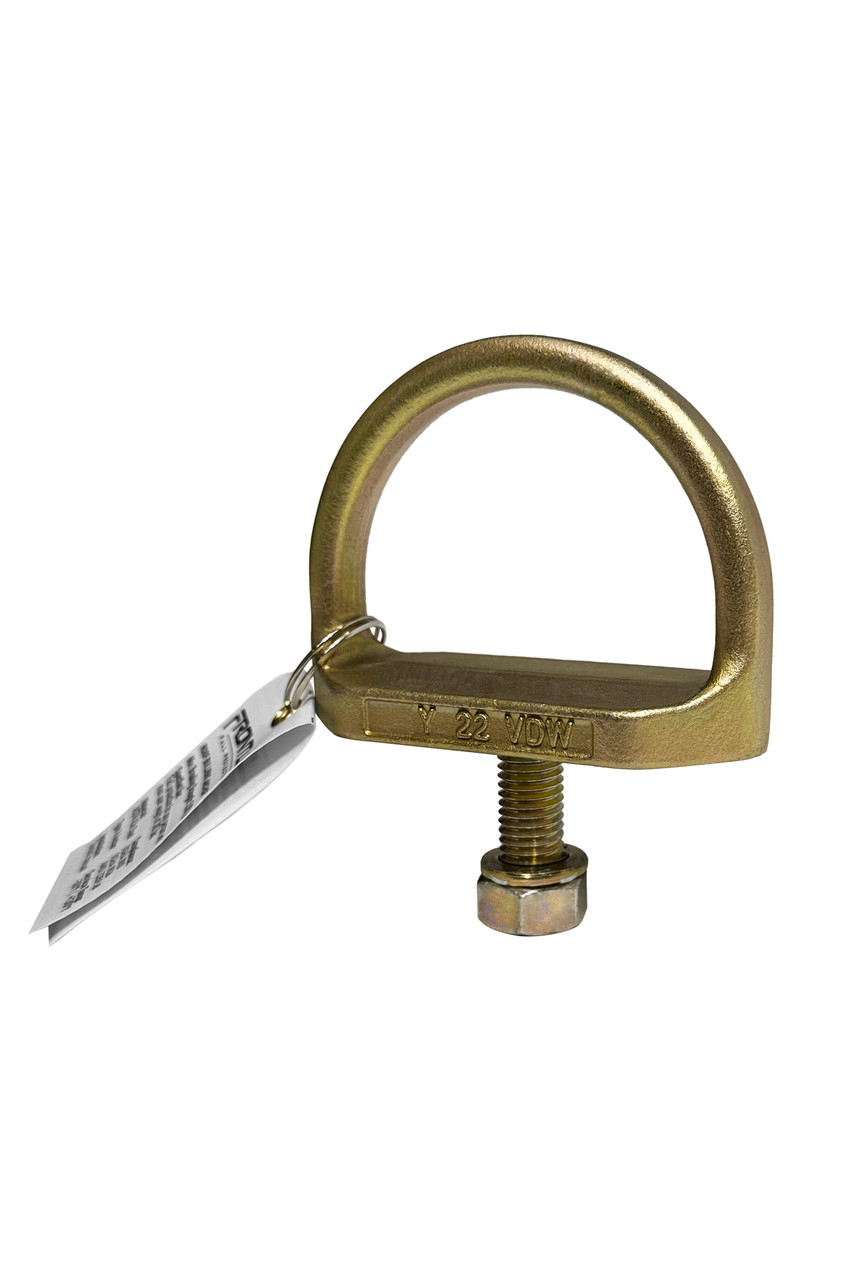

FrontlineŽ STB01 Steel Bolt Threaded Anchor

The Frontline threaded steel anchor bolt is the perfect solution for steel-based applications. This compact and lightweight anchor is designed for easy handling, fitting comfortably in your hand!

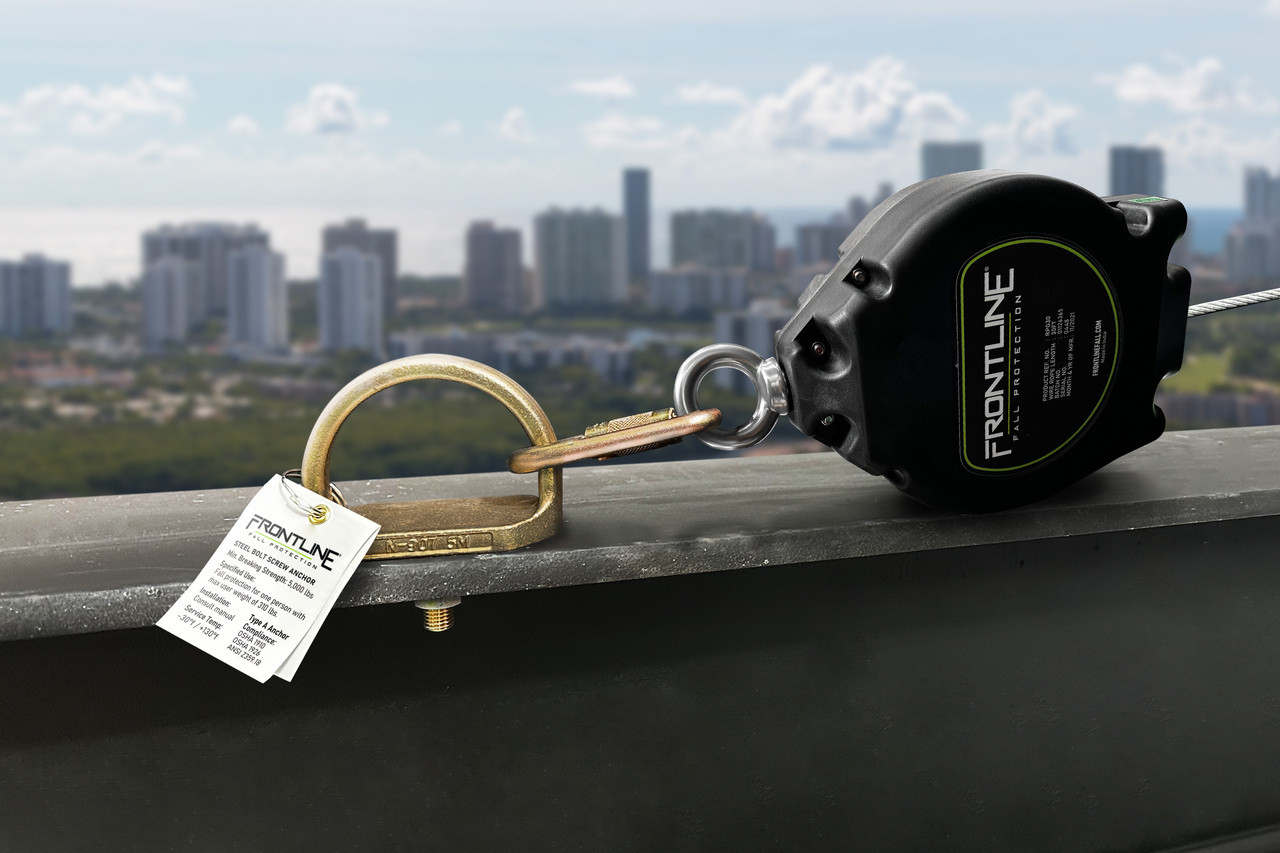

Installation takes mere minutes and its bolt-on design allows for repeated use, making it simple to transfer between different locations. This versatile anchor is suitable for mounting on steel columns, I-beams, and various steel structural components.

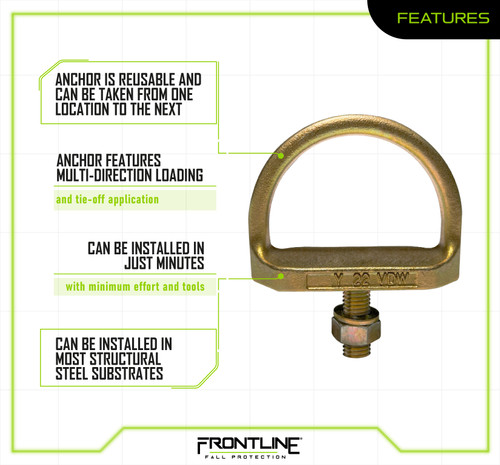

Features:

• This threaded steel anchor bolt is compatible with most structural steel surfaces capable of supporting the required 5,000 lbs load capacity.
• Testing confirms multi-directional load bearing, enabling installation and tie-off from various angles.
• Quick installation process requires minimal tools and effort.
• Designed for multiple uses with easy relocation between mounting points.

Specs and Standards:

• Minimum Breaking Strength: 5,000-lbf/22kN
• Application: Steel Substrates
• User Maximum Capacity: 310 lbs

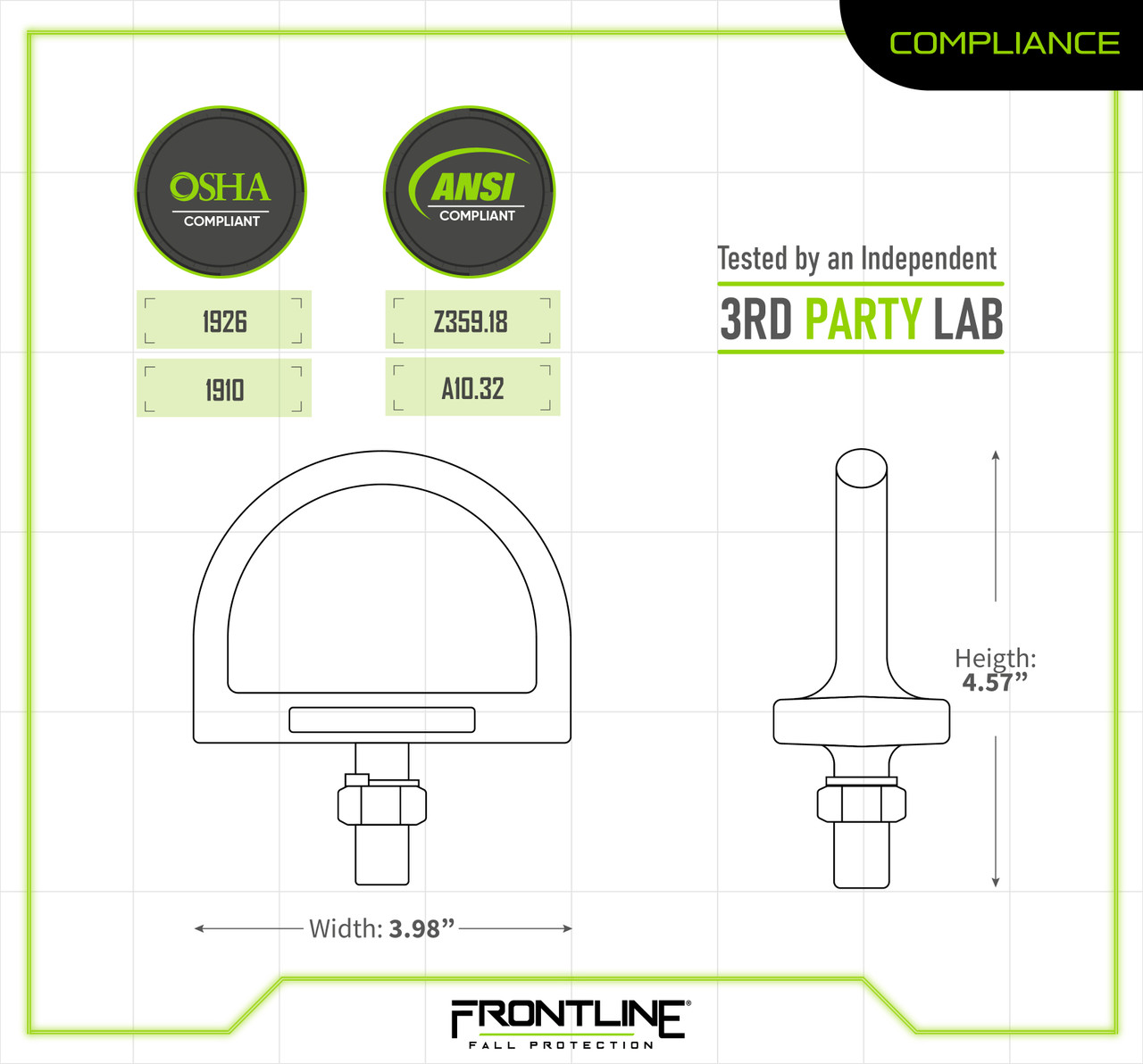

• Compliant with ANSI Z359.18, ANSI A10.32, OSHA 1926, and OSHA 1910.
• Verification by Independent ISO/IEC Standard 17025 accredited Laboratory.
