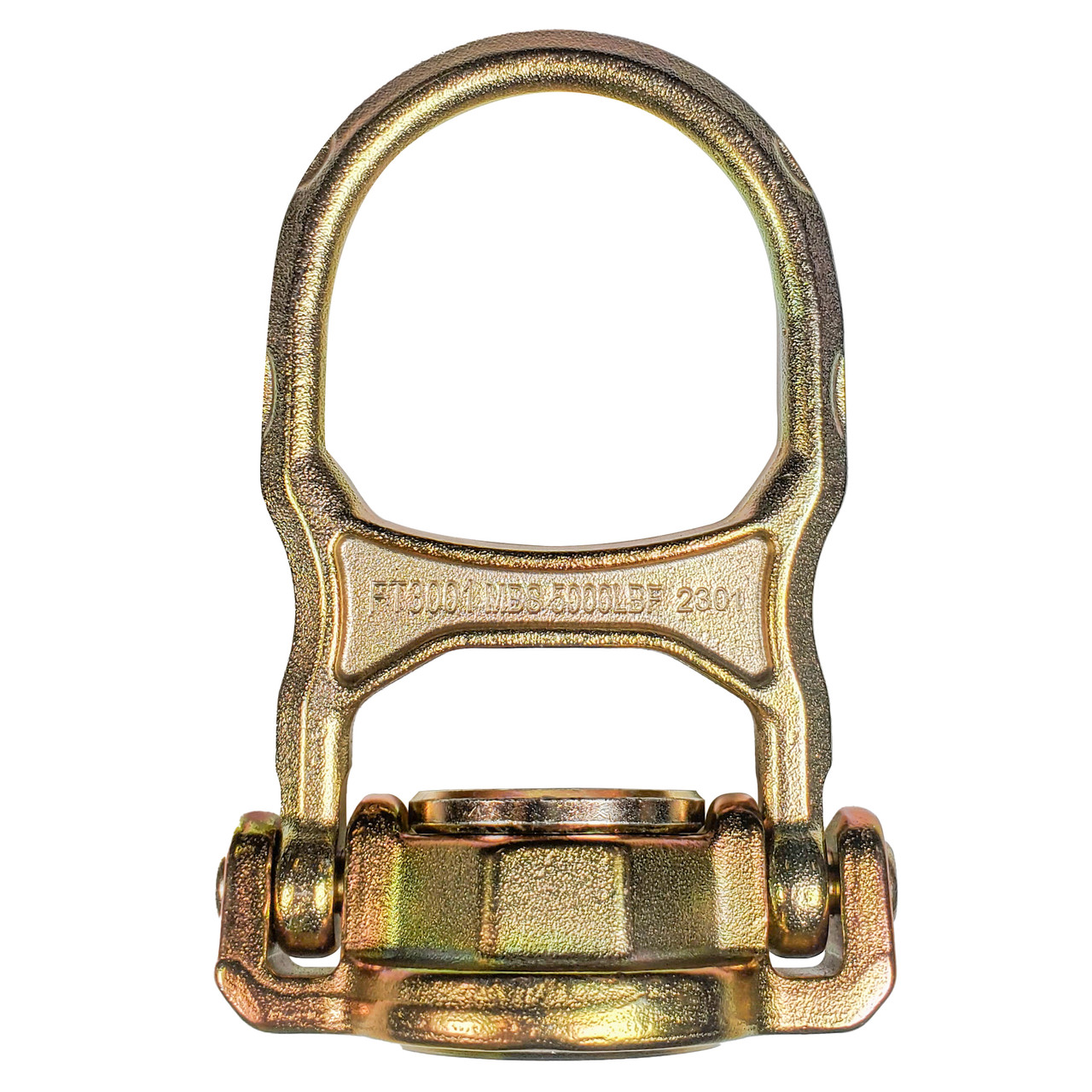

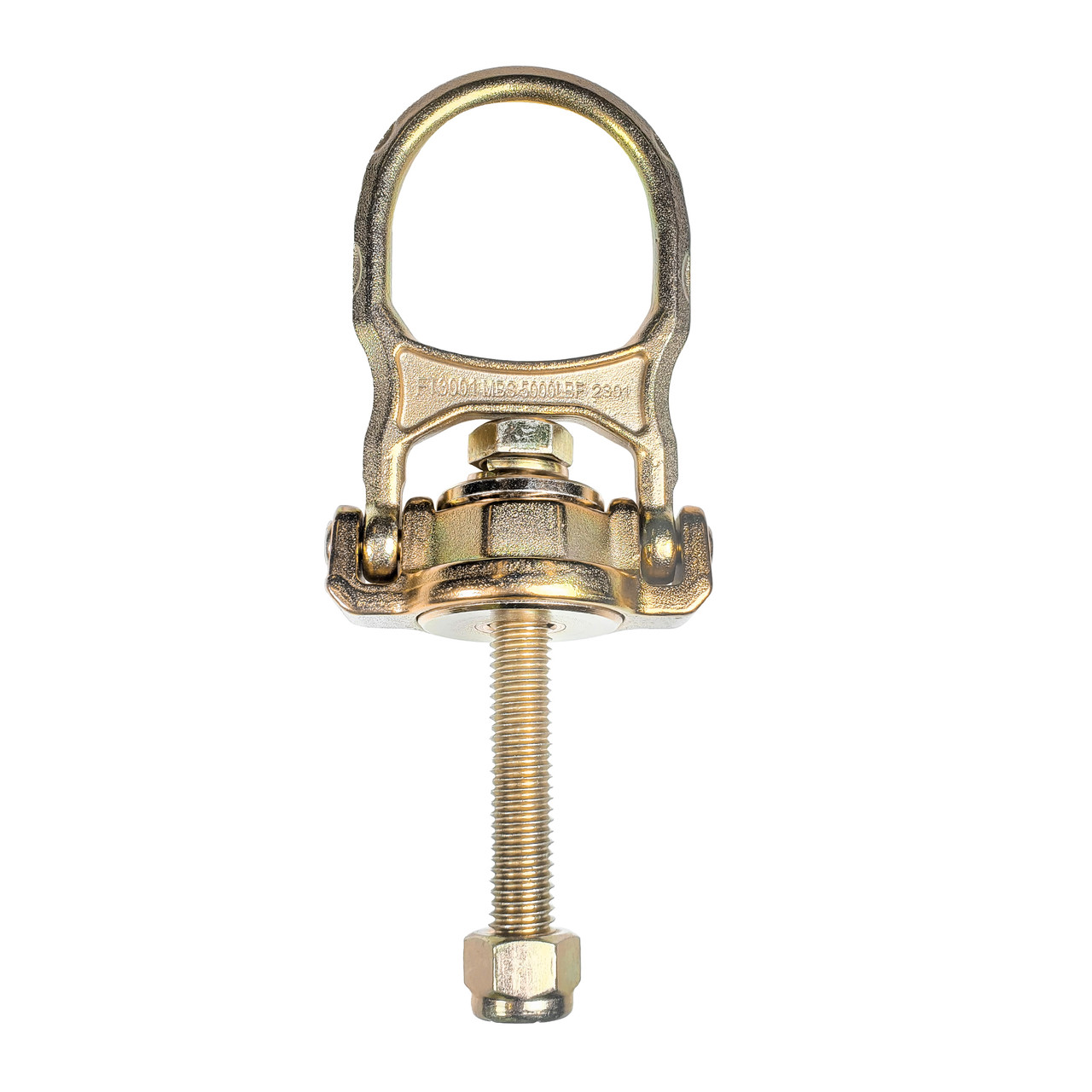

FrontlineŽ STB5K ALPHA Swivel 5K Steel Anchor

Meet the innovative Frontline ALPHA reusable anchors engineered specifically for steel surfaces. The ALPHA anchors showcase an advanced design with a 360° rotating d-ring that also tilts forward and backward through a full 180° range, maximizing freedom of movement for users.

These ALPHA anchors are crafted from premium materials featuring galvanized zinc coating with yellow passivation to ensure superior rust resistance, making them ideal for both exterior and interior use. While compact and lightweight, the anchor delivers exceptional durability to handle demanding worksite conditions, establishing new benchmarks in safety and regulatory compliance.

The ALPHA anchor's reusable design allows quick transfer between work locations. Deploy it confidently in vertical, horizontal or overhead positions and rely on the Frontline ALPHA anchors to deliver performance that surpasses industry standards.

Features:

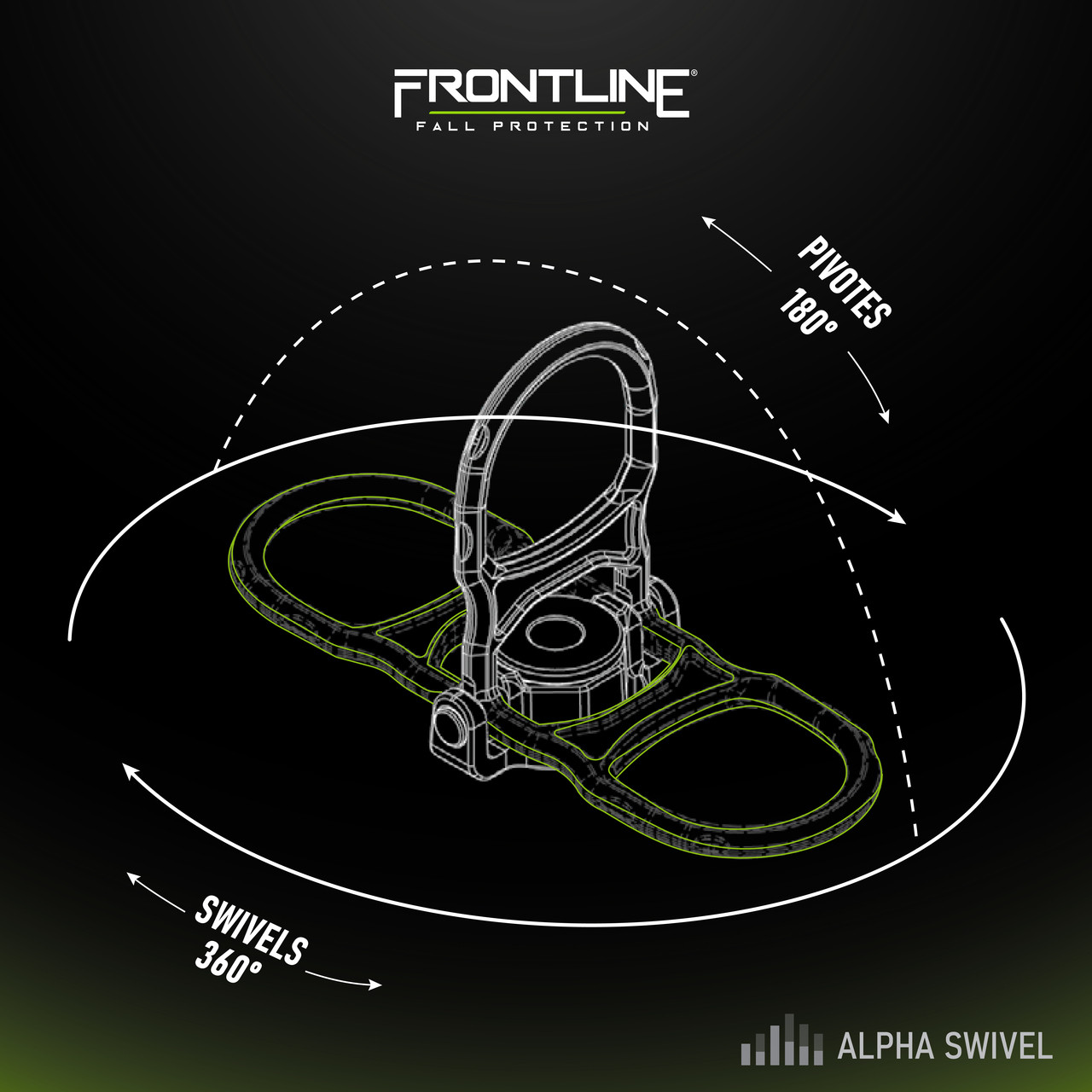

• D-ring rotates 360° and moves 180° laterally to prevent side loading and unintended disconnection

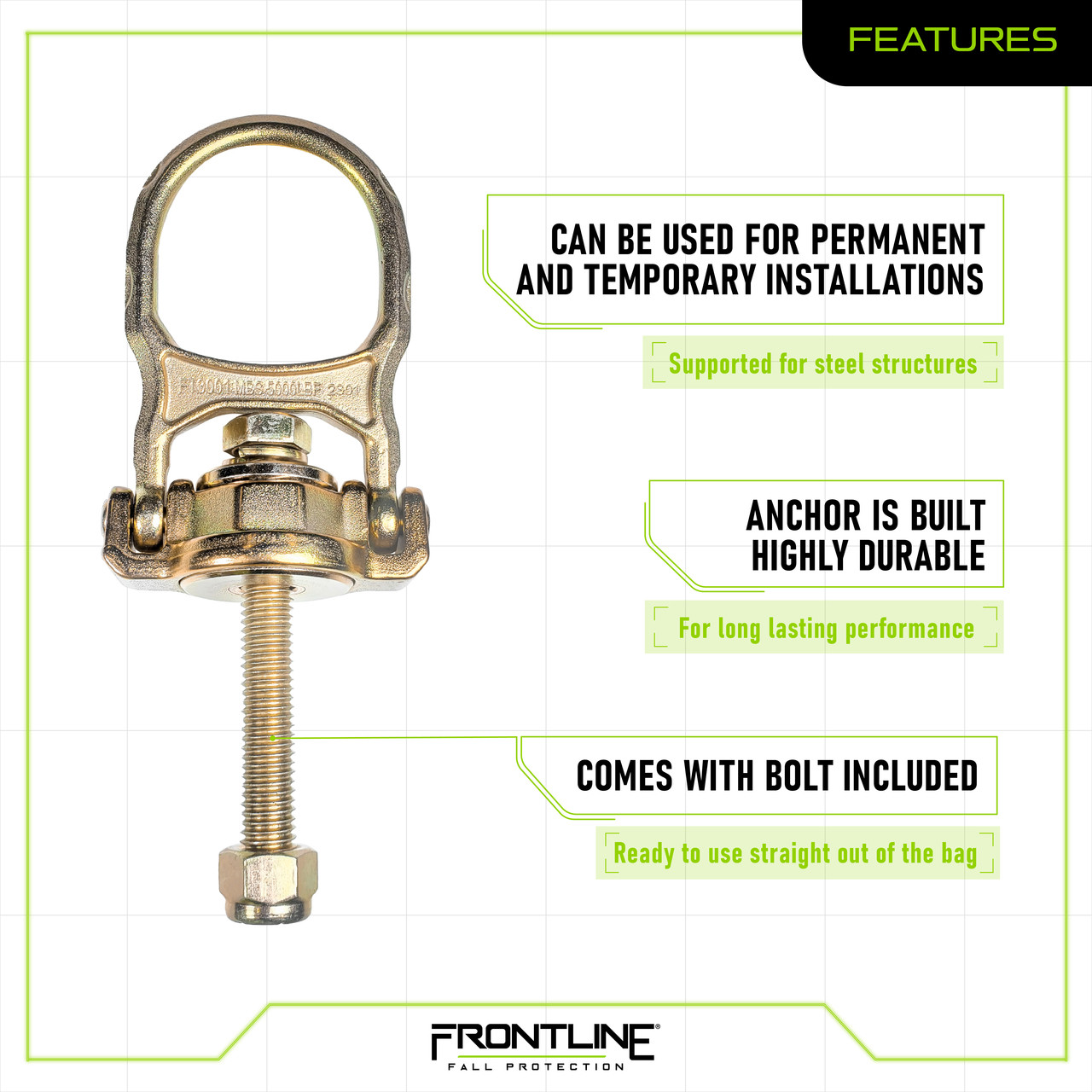

• Suitable for both permanent and temporary steel structure installations
• Functions as single-point anchor or combines with approved anchors for temporary horizontal lifeline systems
• Constructed for superior strength and reliability across multiple jobs

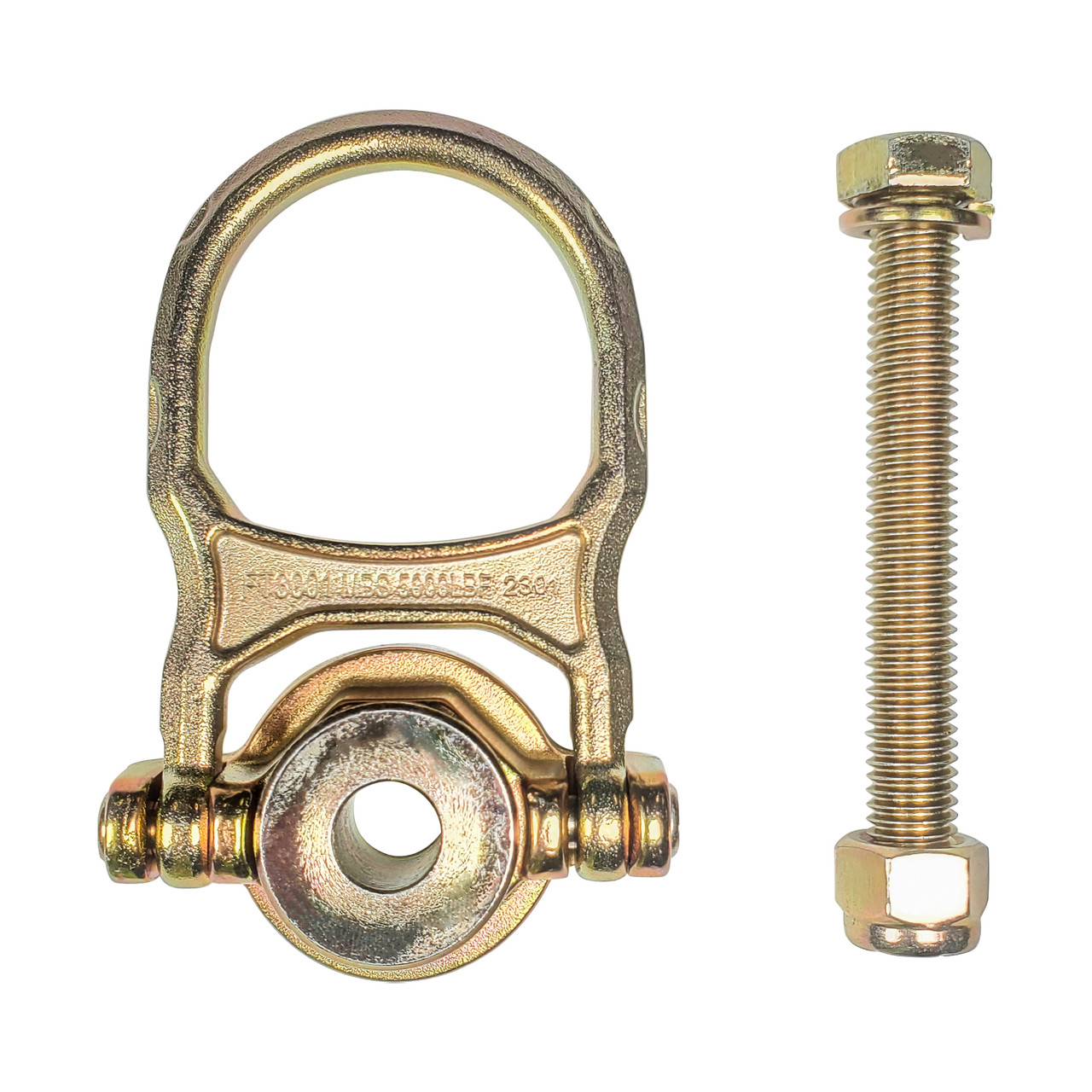

• Ships with included bolt for immediate installation from package

Components:

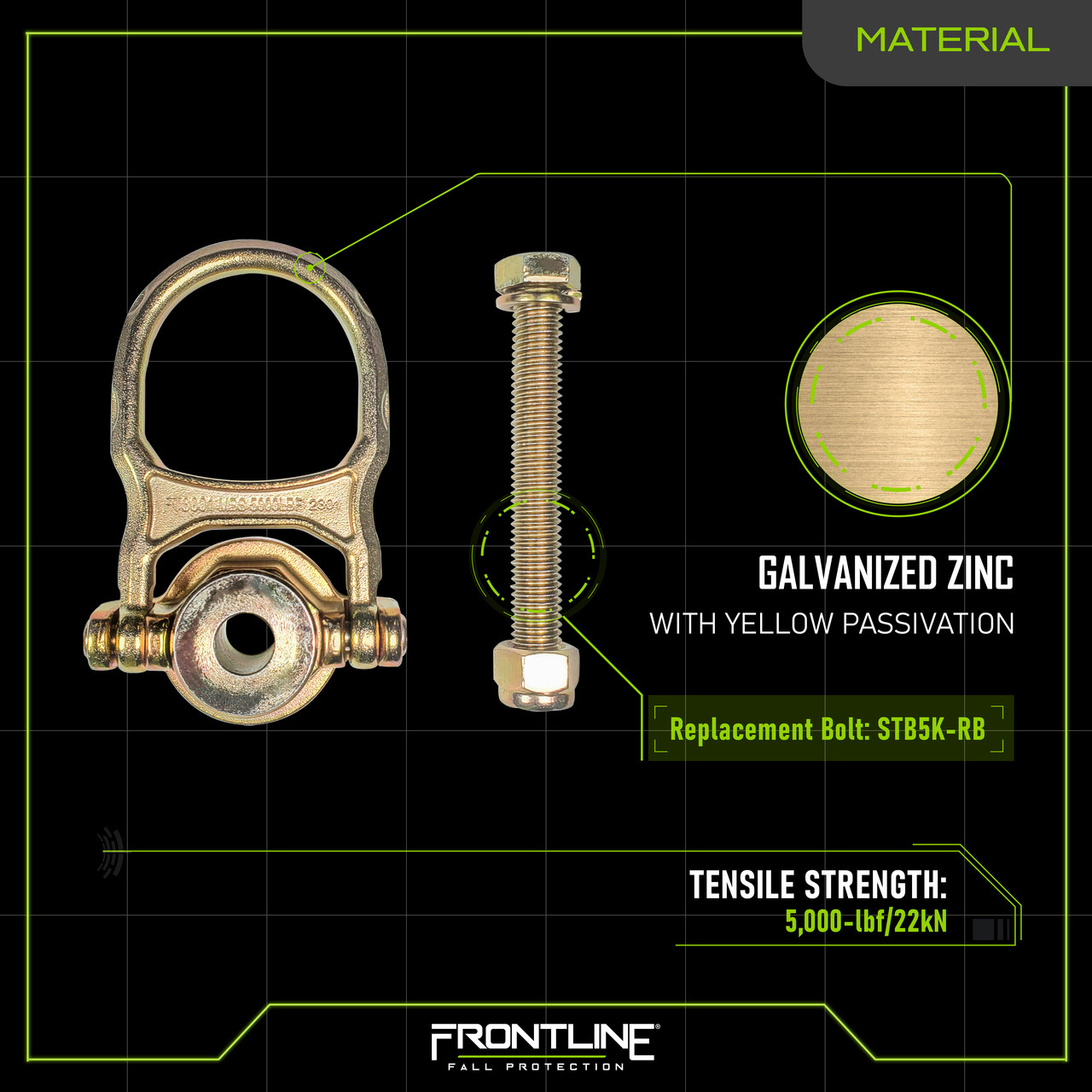

• Galvanized zinc with yellow passivation

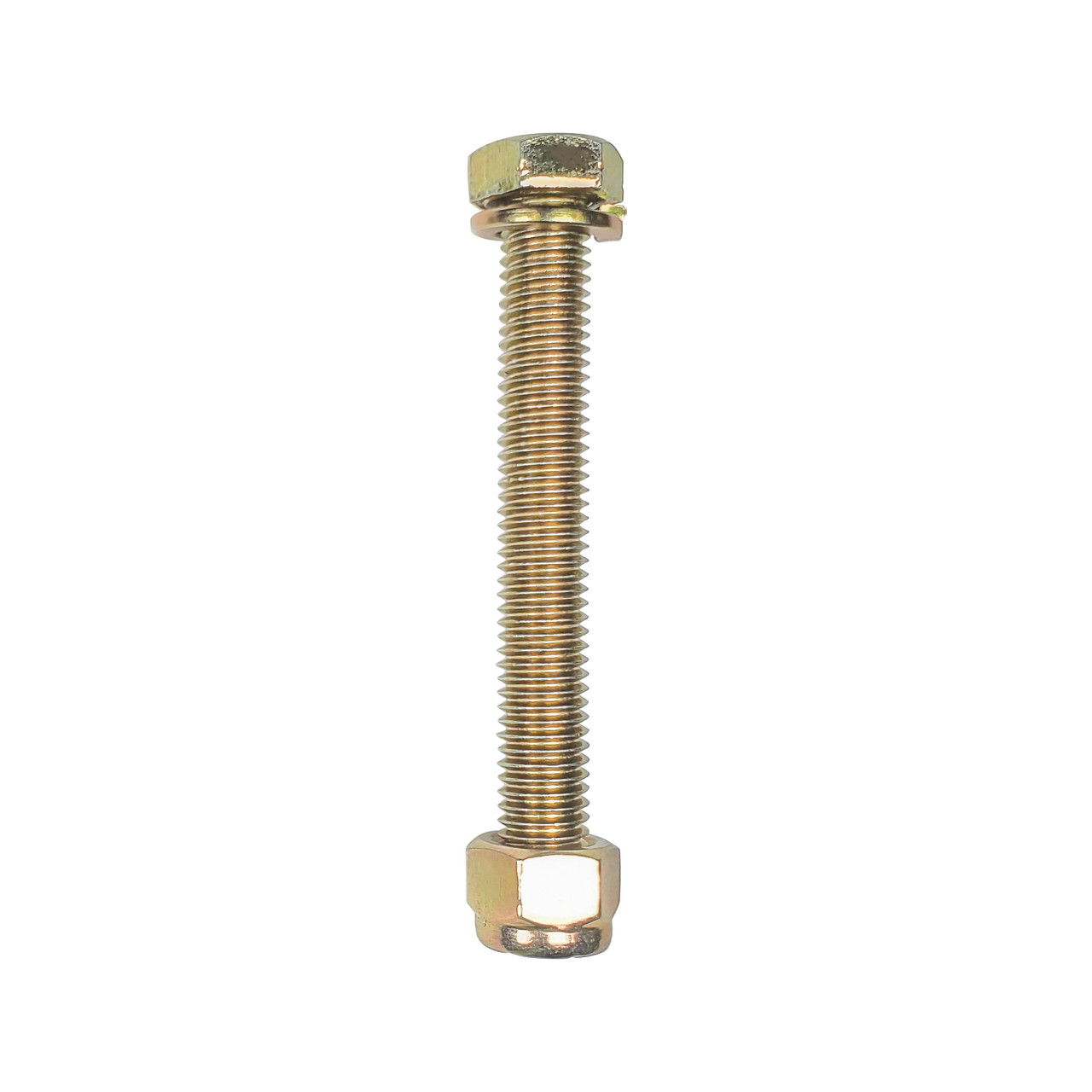

• Replacement bolt: STB5K-RB

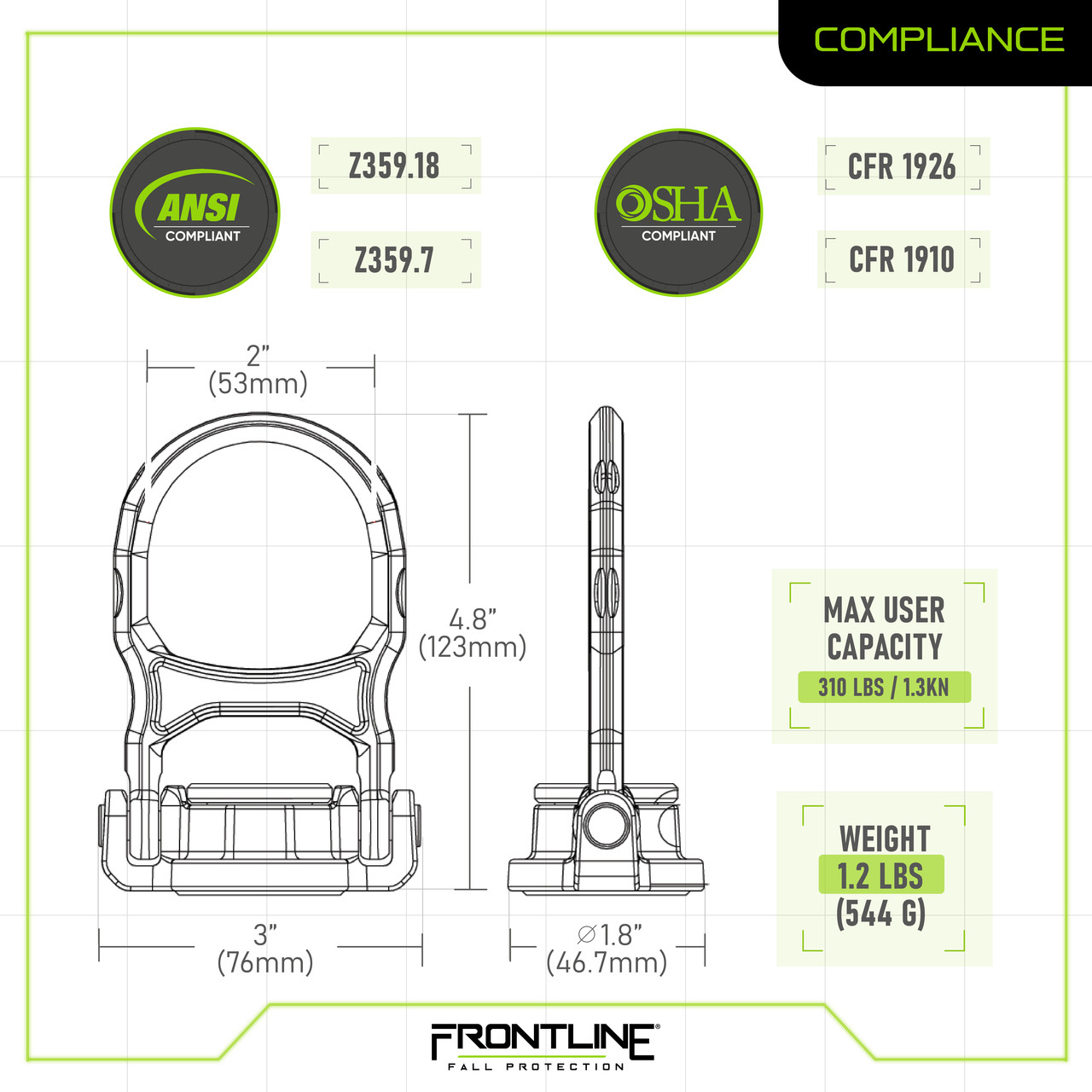

Specs and Standards:

• Static tensile strength: 5,000 lbs
• User maximum capacity: 310 lbs
• Product weight: 1.2 lbs
• Application: Steel anchorage
• Compliant with ANSI Z359.18, ANSI Z359.7, OSHA 1910 and OSHA 1926
