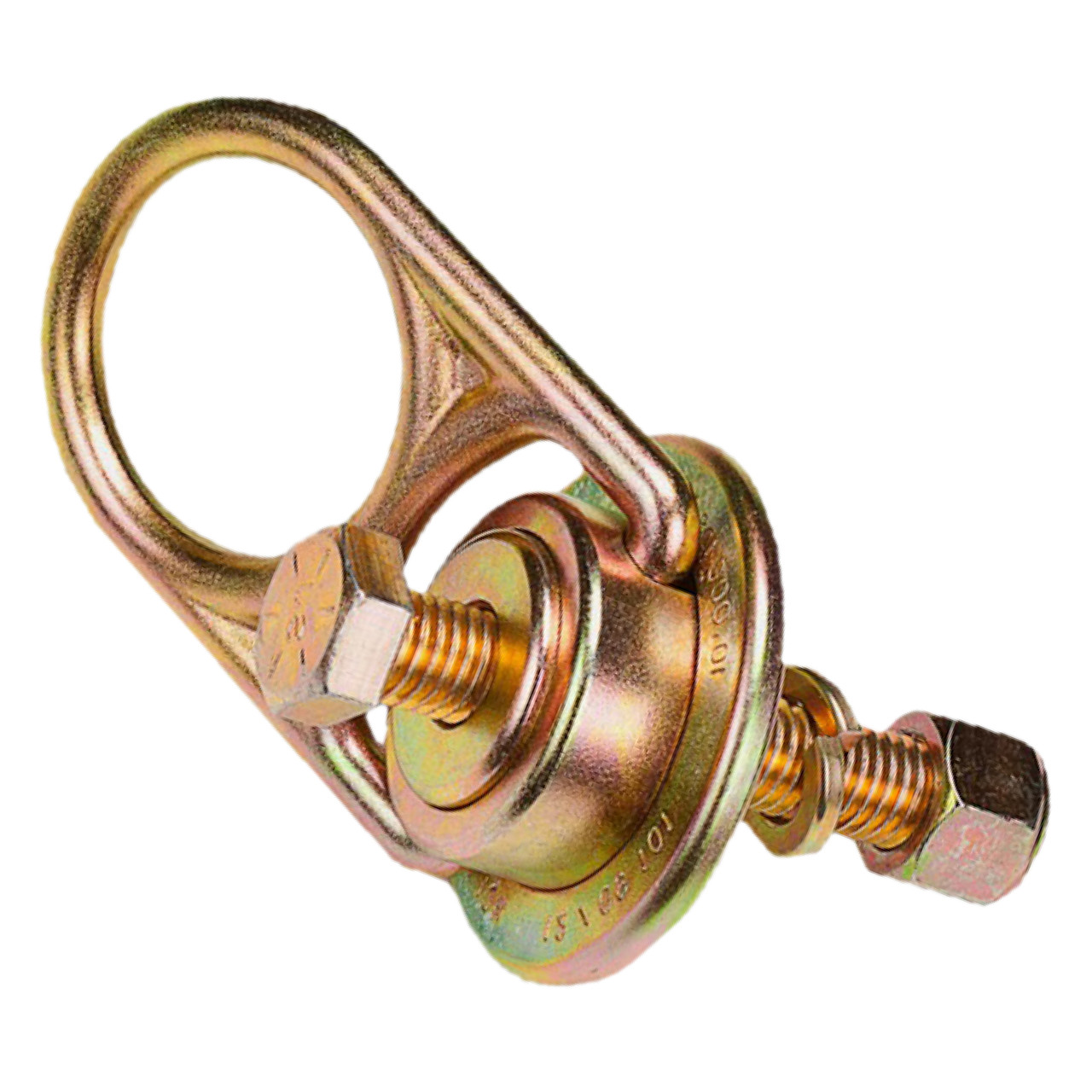

FrontlineŽ STM5810K MEGA Swivel 10K Steel Anchor

The Frontline MEGA Swivel of anchor series features an innovative swivel ring mechanism that enables its D-ring to spin completely around while also allowing back-and-forth movement at 180 degrees.

The Swivel Anchor's exceptional durability comes from its robust heat-treated alloy steel construction, enhanced bridge design, D-ring structure, and secure locking caps. Its innovative key lock configuration, which is patent pending, ensures the D-ring remains firmly positioned within its swivel housing, eliminating steel spread during high-stress loads.

This durable steel anchor offers multiple uses, with an easily replaceable bolt for different work locations and versatility across vertical, horizontal, and overhead installations. Its applications span fall protection, rescue operations, lifting tasks, hoisting needs, tie-back functions, and more in steel environments.

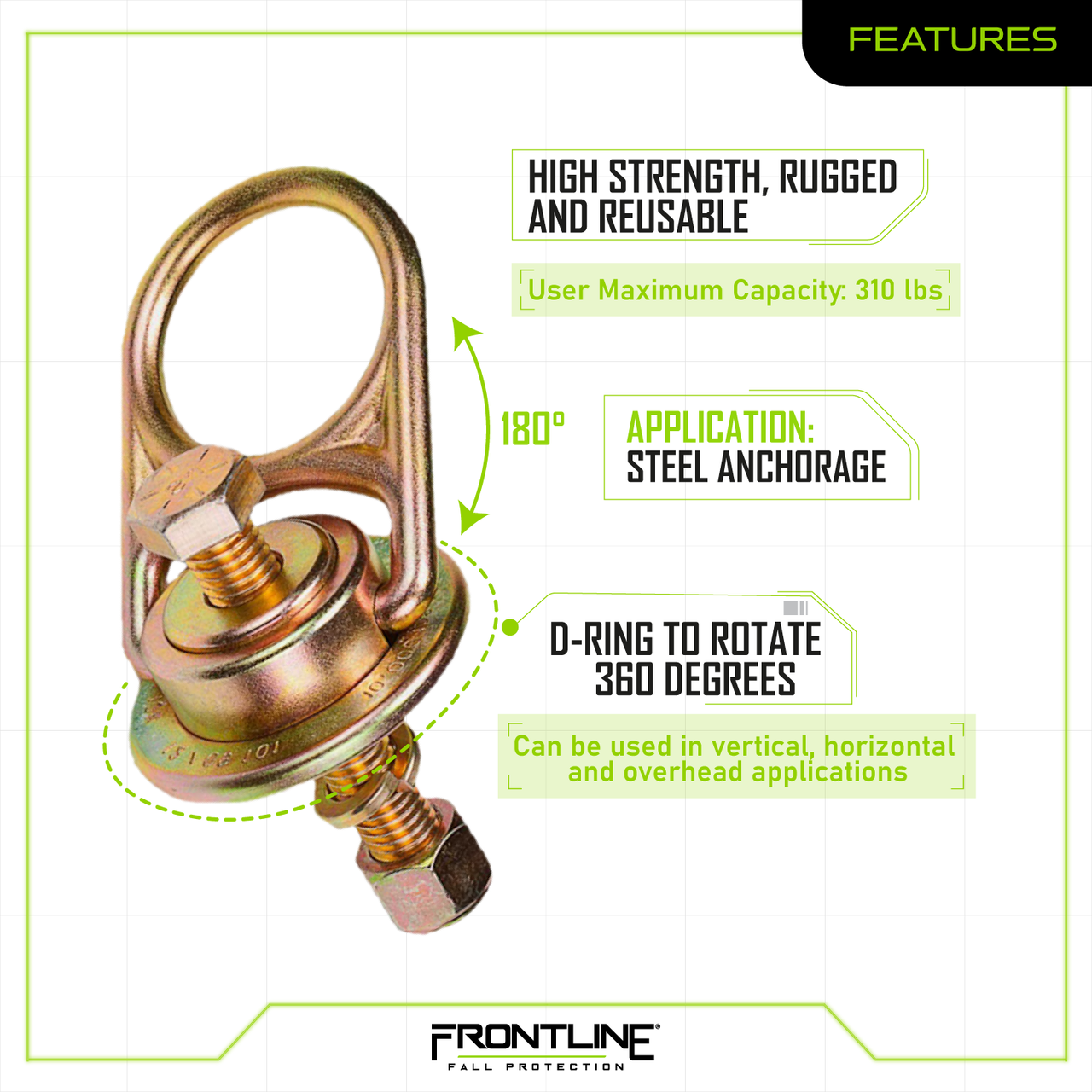

Features:

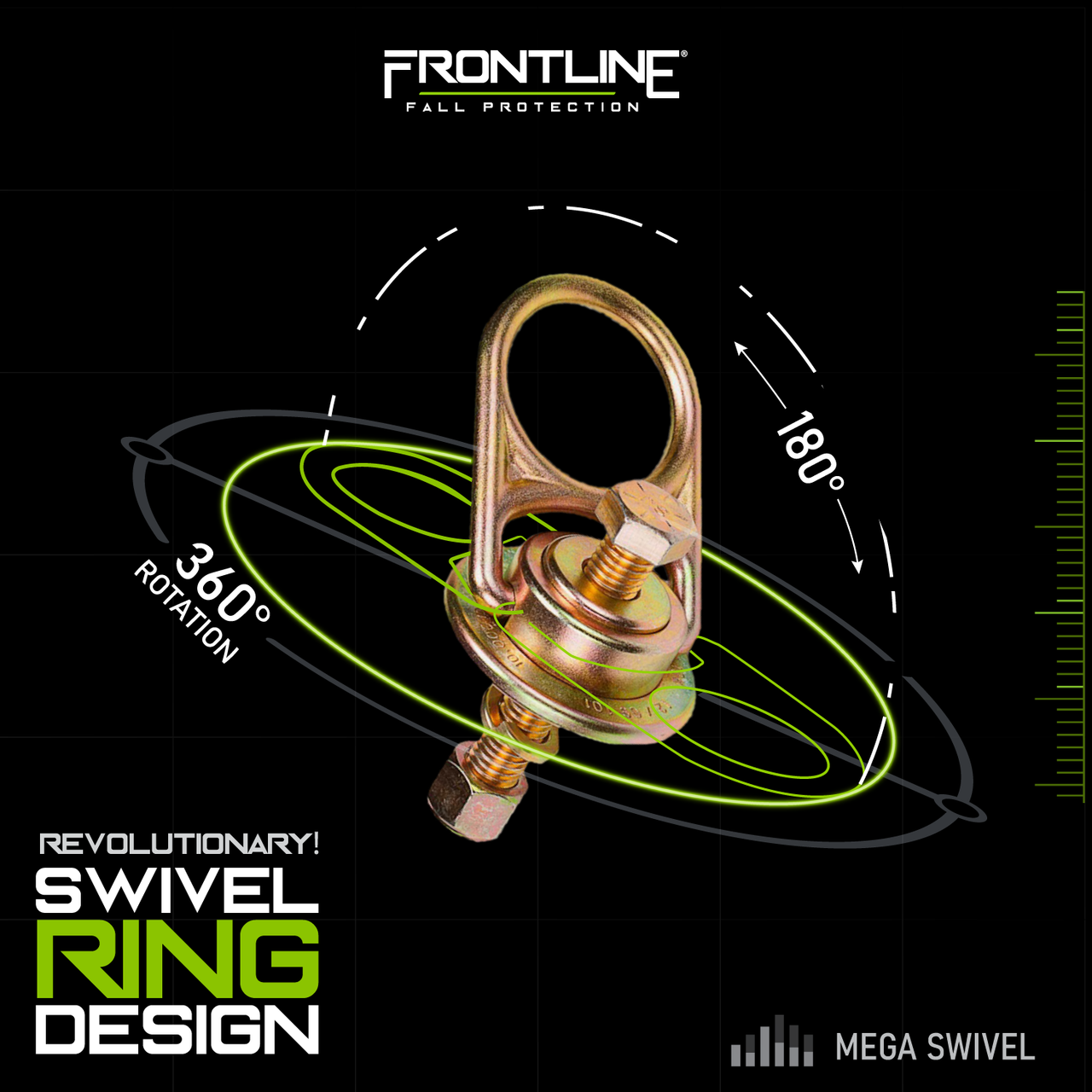

• Anchor provides full 360° rotation and 180° side-to-side pivot, effectively preventing side loading and unintended disconnection
• Suitable for both permanent and temporary steel-supported installations
• Functions as either a single-point anchor or combines with other approved anchors for temporary horizontal lifeline systems
• Constructed with superior durability for reliable performance across multiple jobs
• Ships complete with bolt for immediate deployment from package

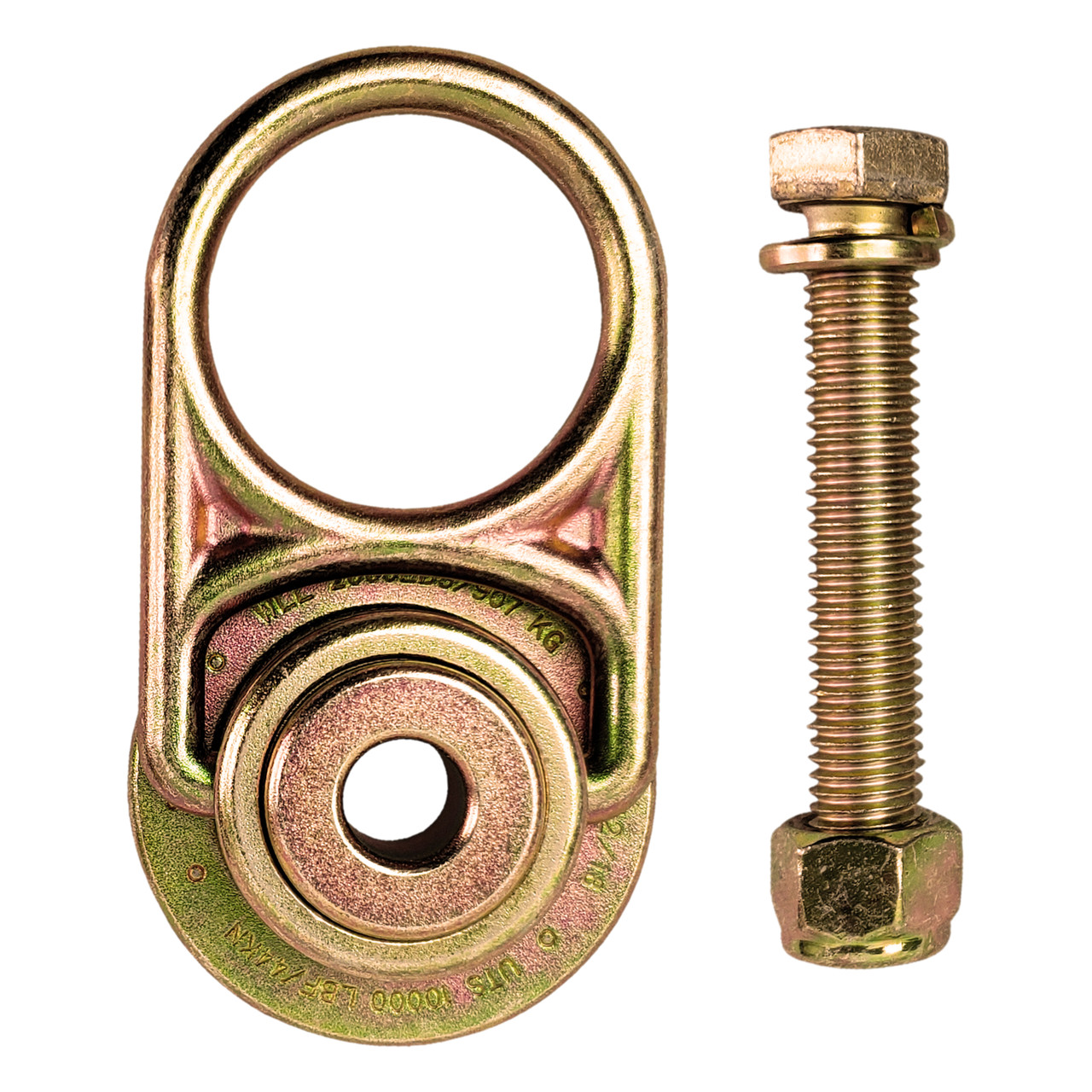

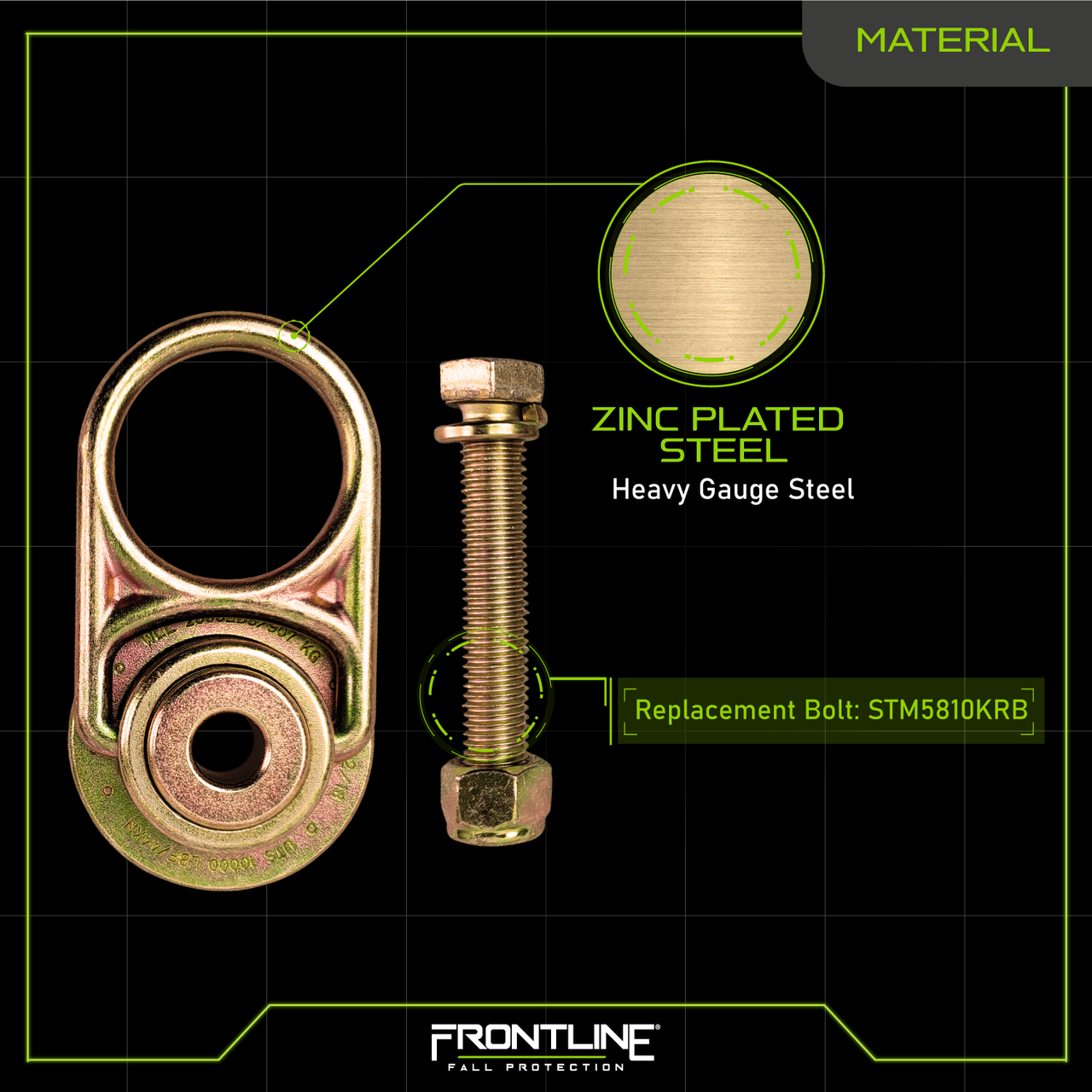

Components:

• Zinc Plated Steel
• Replacement Bolt: STM5810KRB

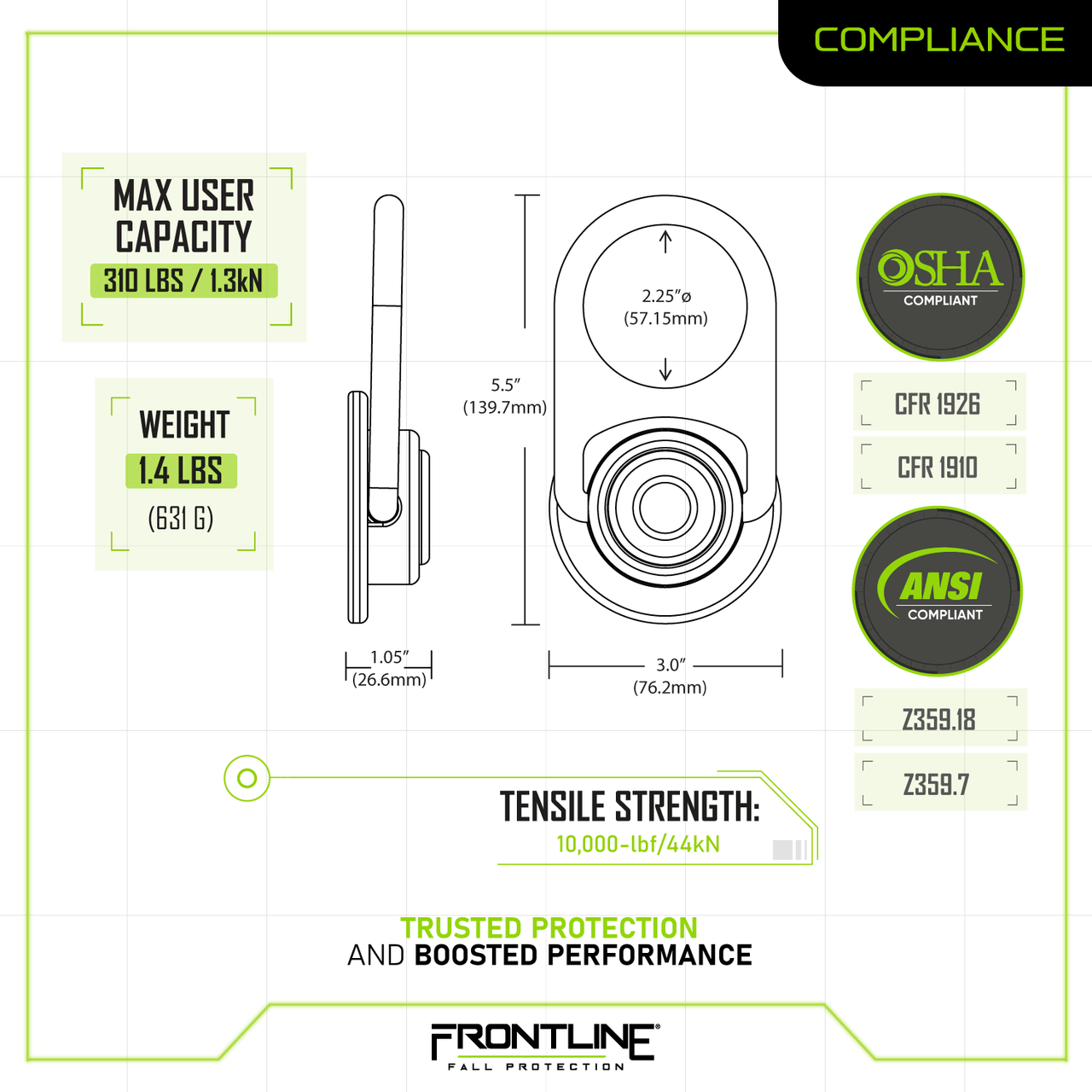

Specs and Standards:

• Static Tensile Strength: 10,000-lbf/44kN
• User Maximum Capacity: 310 lbs
• Product Weight: 1.4 lbs
• Application: Steel Anchorage
• Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
