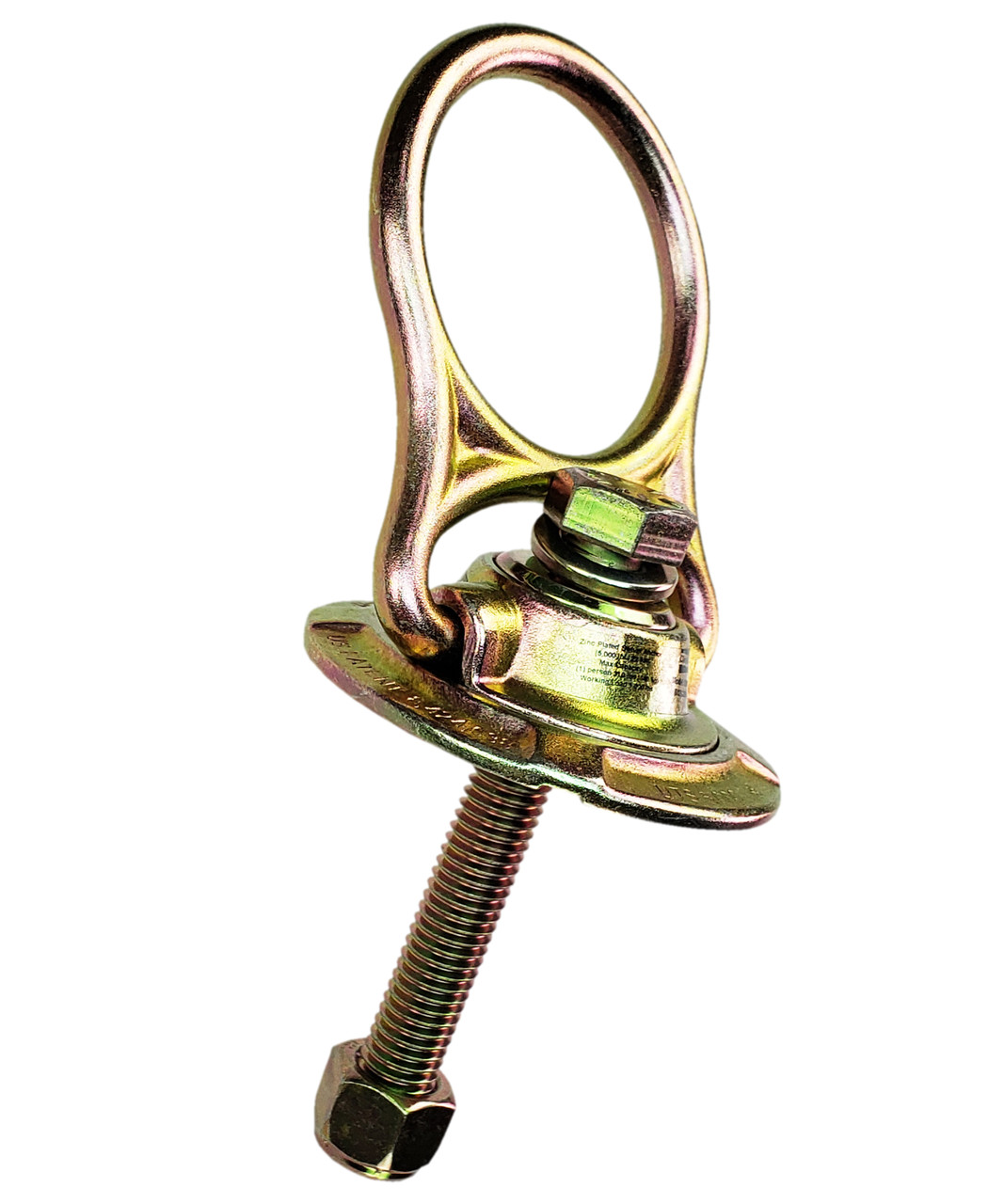

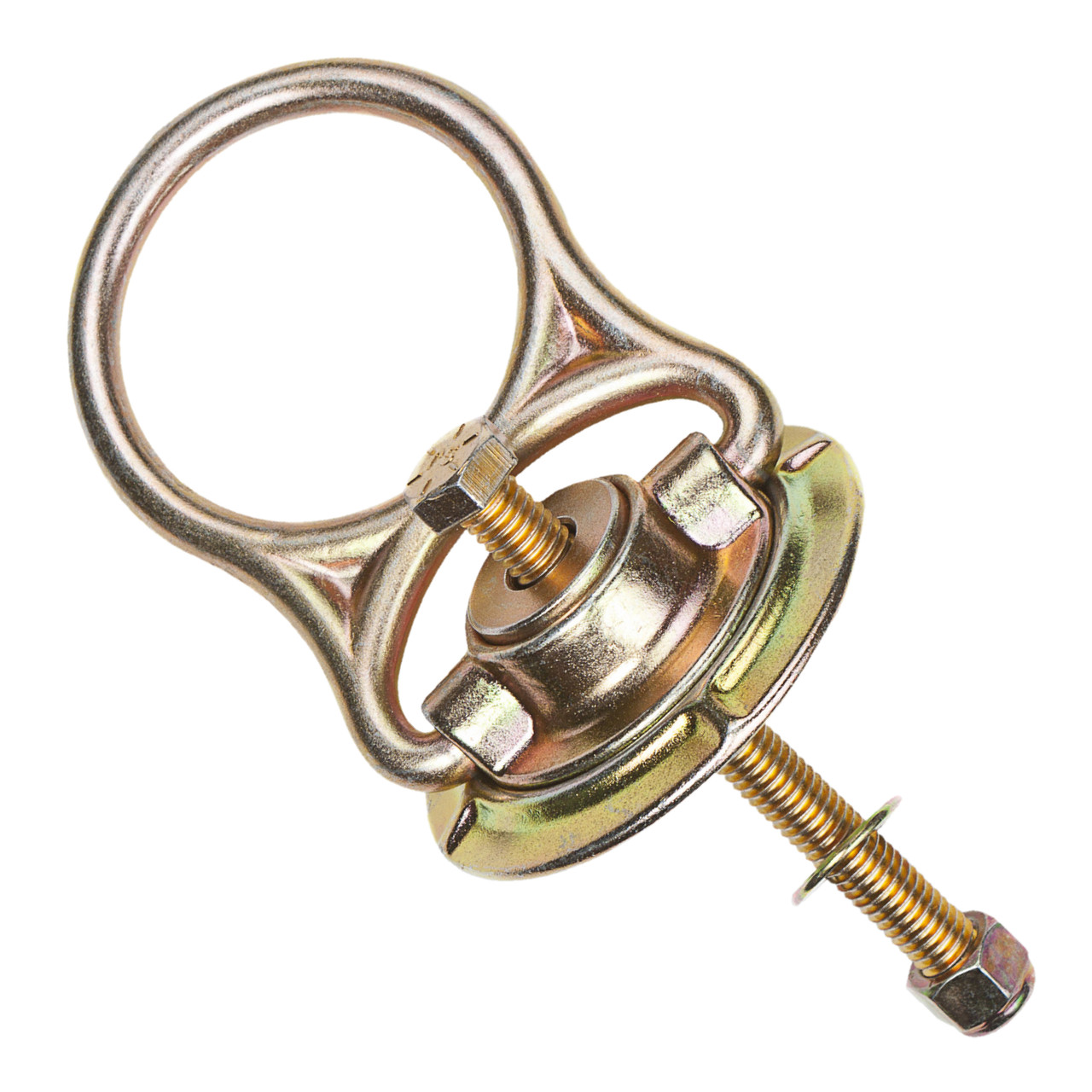

FrontlineŽ STM585K MEGA Swivel 5K Steel Anchor

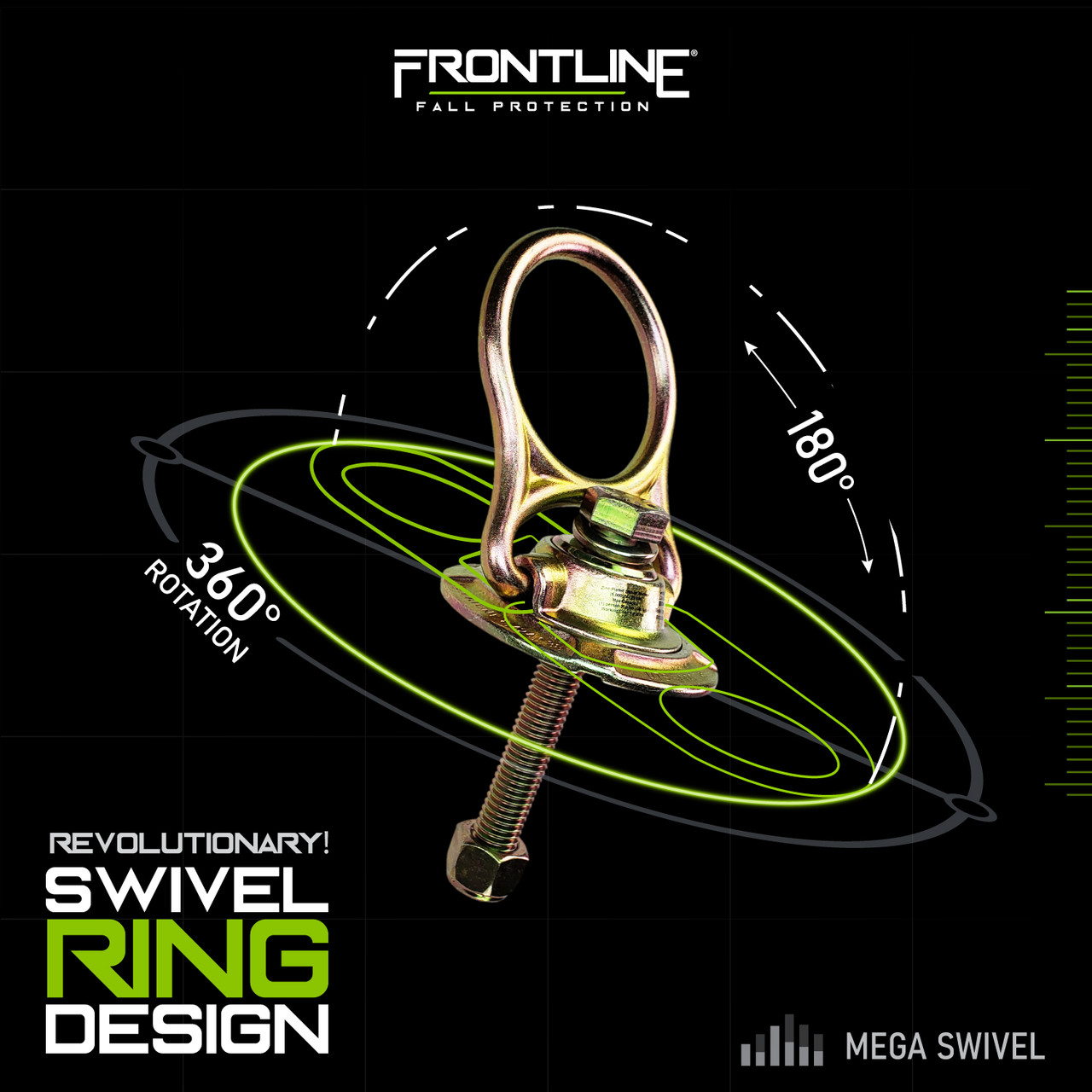

The Frontline MEGA Swivel of anchor series features an innovative swivel ring mechanism that enables its D-ring to make complete 360-degree rotations while also allowing 180-degree forward and backward movements.

The Swivel Anchor delivers exceptional durability through its robust construction, featuring heavy-duty heat-treated alloy steel, enhanced bridge support, D-ring, and secure locking caps. Its innovative patent pending key lock system ensures the D-ring remains firmly positioned within the swivel housing, eliminating steel spread during high-load situations.

This durable steel anchor offers reusability, with an easily replaceable bolt for different work locations and versatile application across vertical, horizontal, and overhead positions. It serves multiple purposes including fall protection, rescue operations, lifting tasks, hoisting needs, tie-back applications, and more in steel environments.

Features:

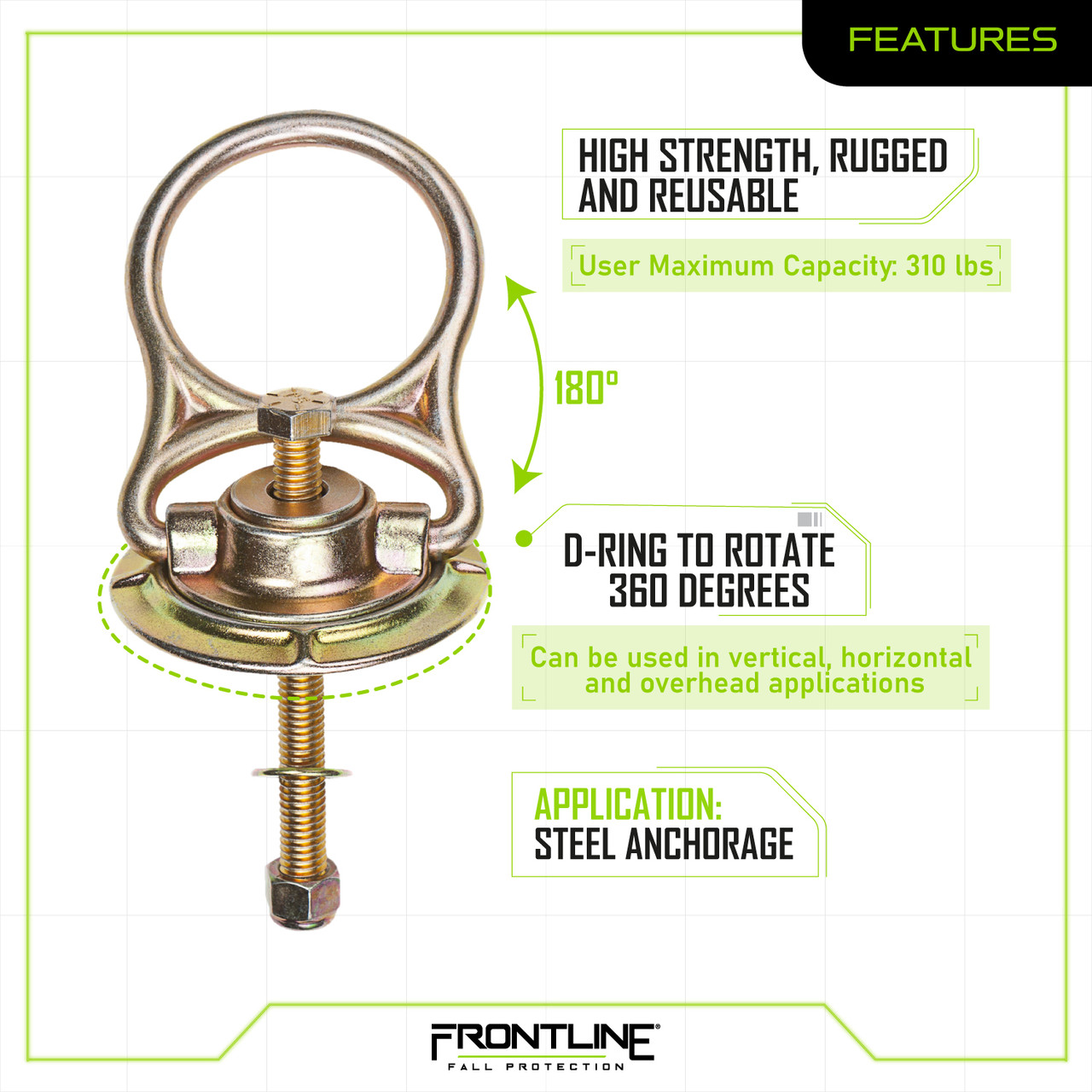

• Anchor provides 360° rotation and 180° side-to-side pivot movement, effectively preventing side loading and unintended disconnection
• Suitable for both permanent and temporary steel-supported installations
• Functions as either a single-point anchor or combines with other approved anchors for temporary horizontal lifeline systems
• Constructed with superior durability for reliable performance across multiple jobs
• Ships complete with bolt for immediate deployment from package

Components:

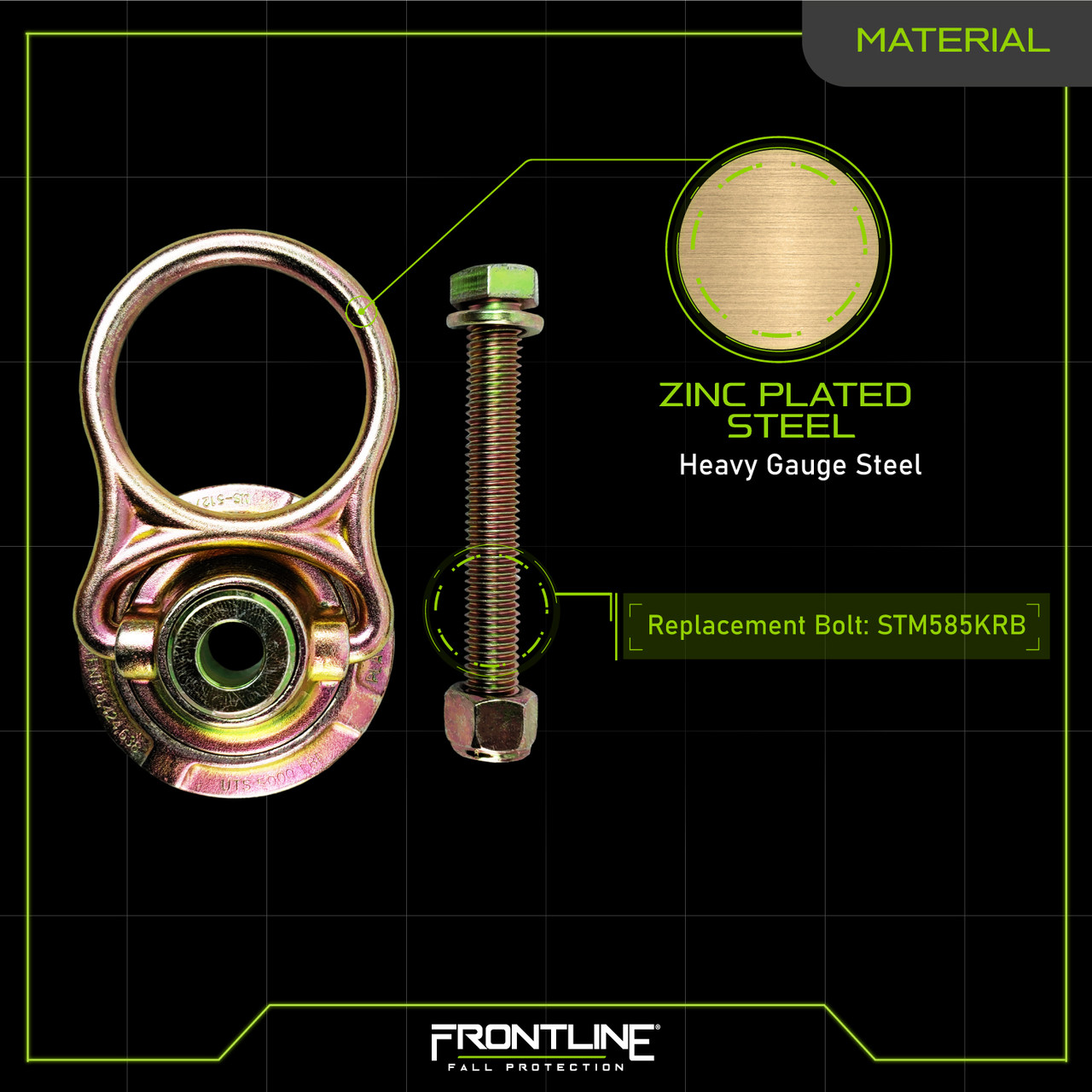

• Zinc Plated Steel

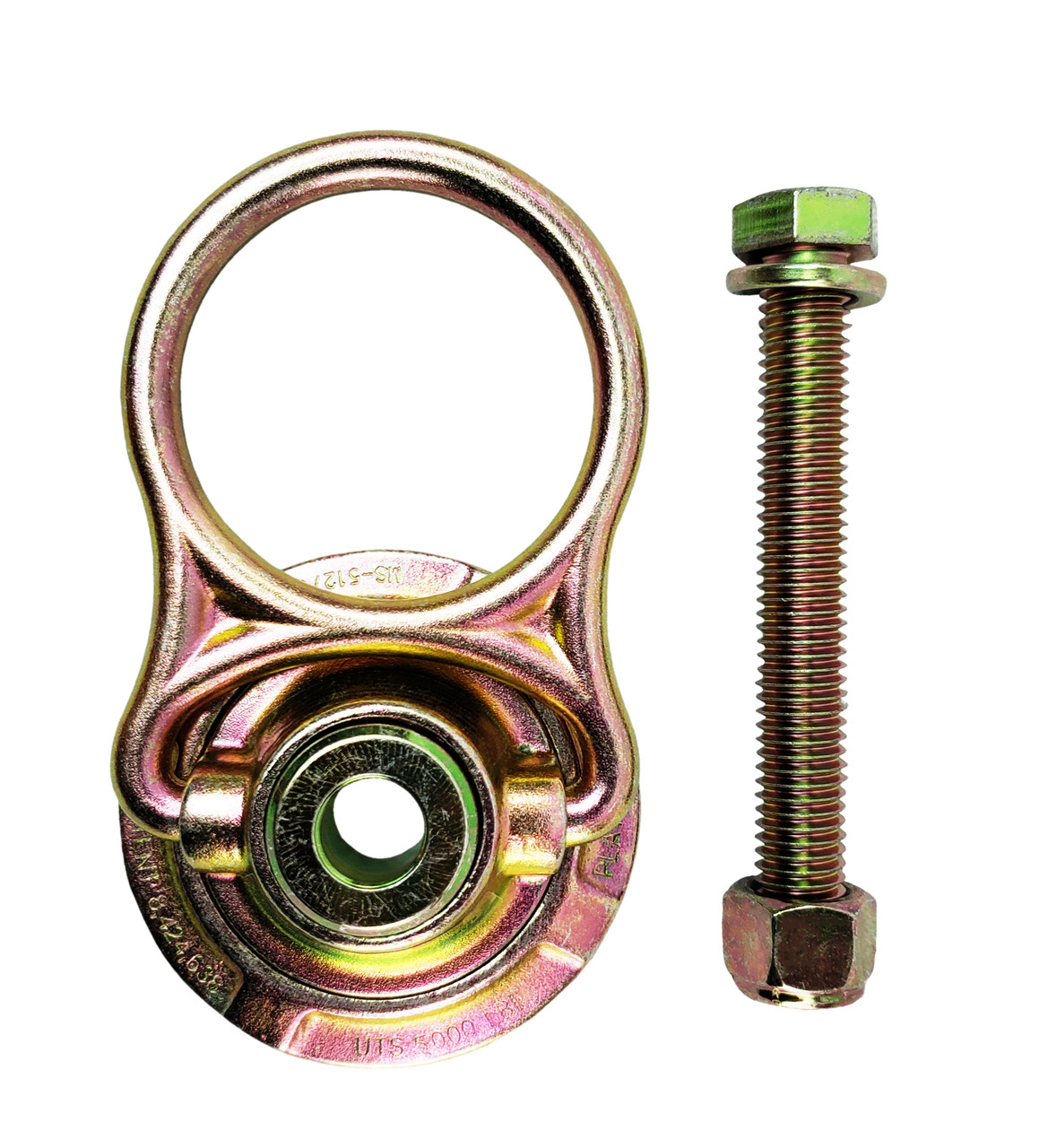

• Replacement Bolt: STM585KRB

Specs and Standards:

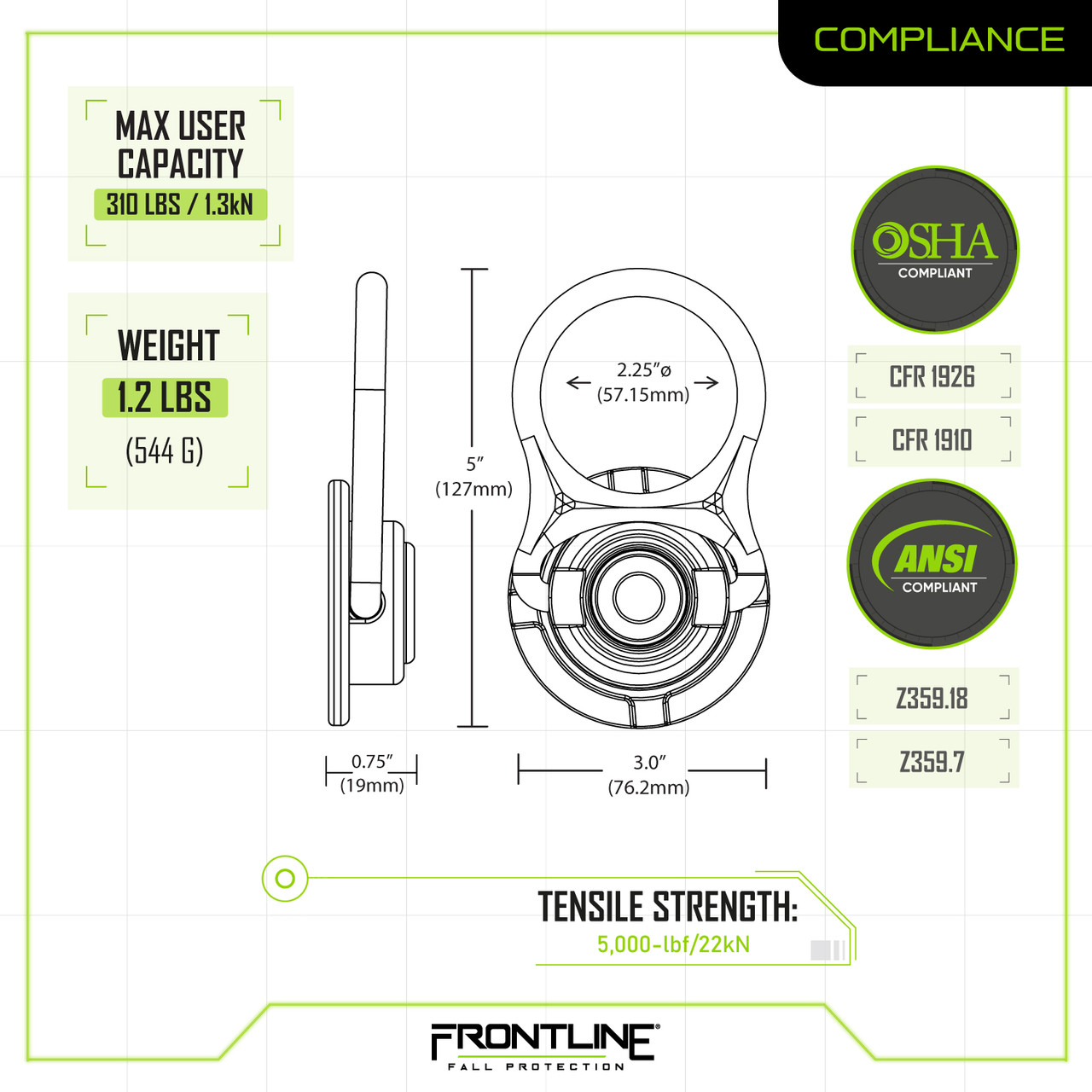

• Static Tensile Strength: 5,000-lbf/22kN
• User Maximum Capacity: 310 lbs
• Product Weight: 1.2 lbs
• Application: Steel Anchorage
• Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
