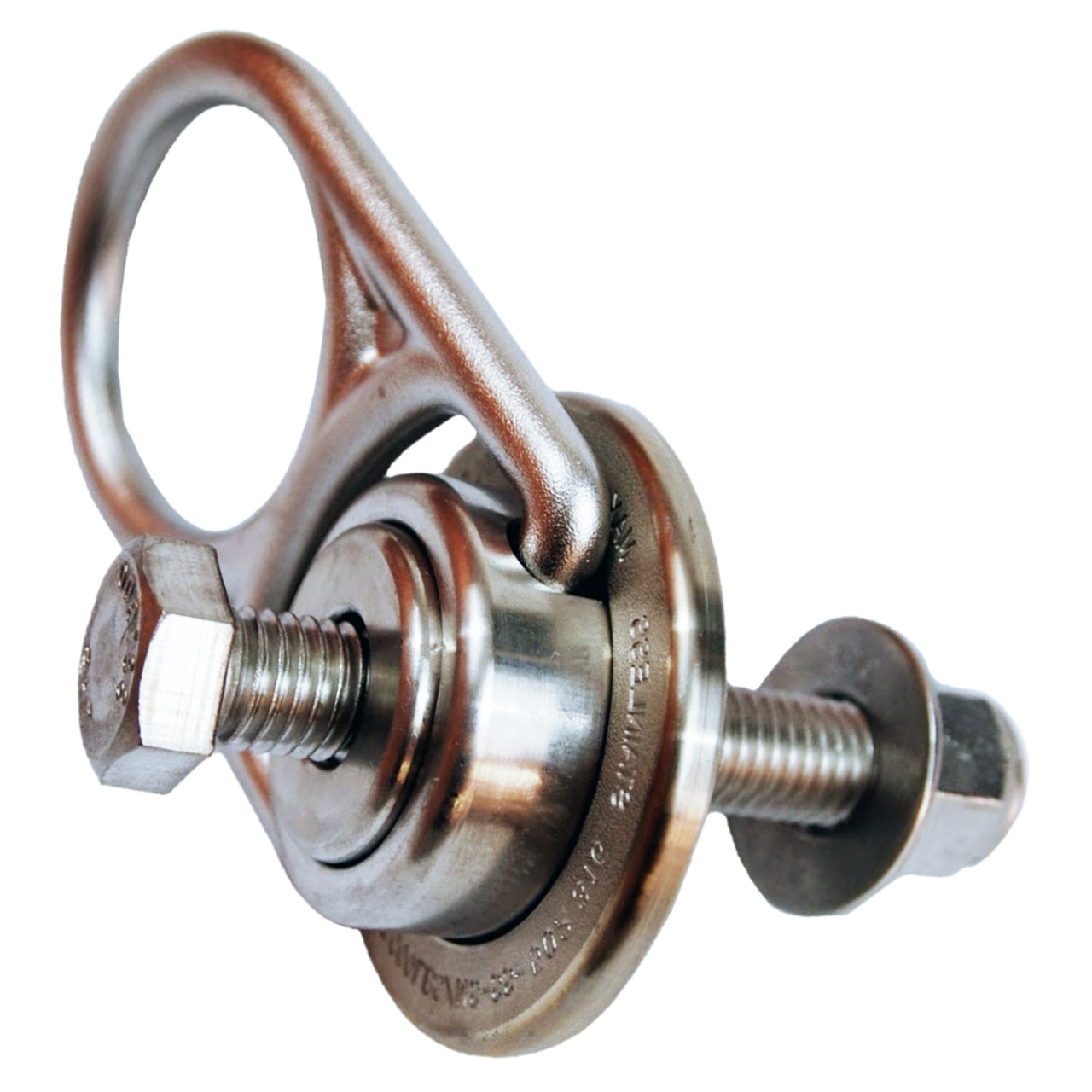

FrontlineŽ STM585K-SS MEGA Swivel 360 Degree 5K Stainless Steel Anchor

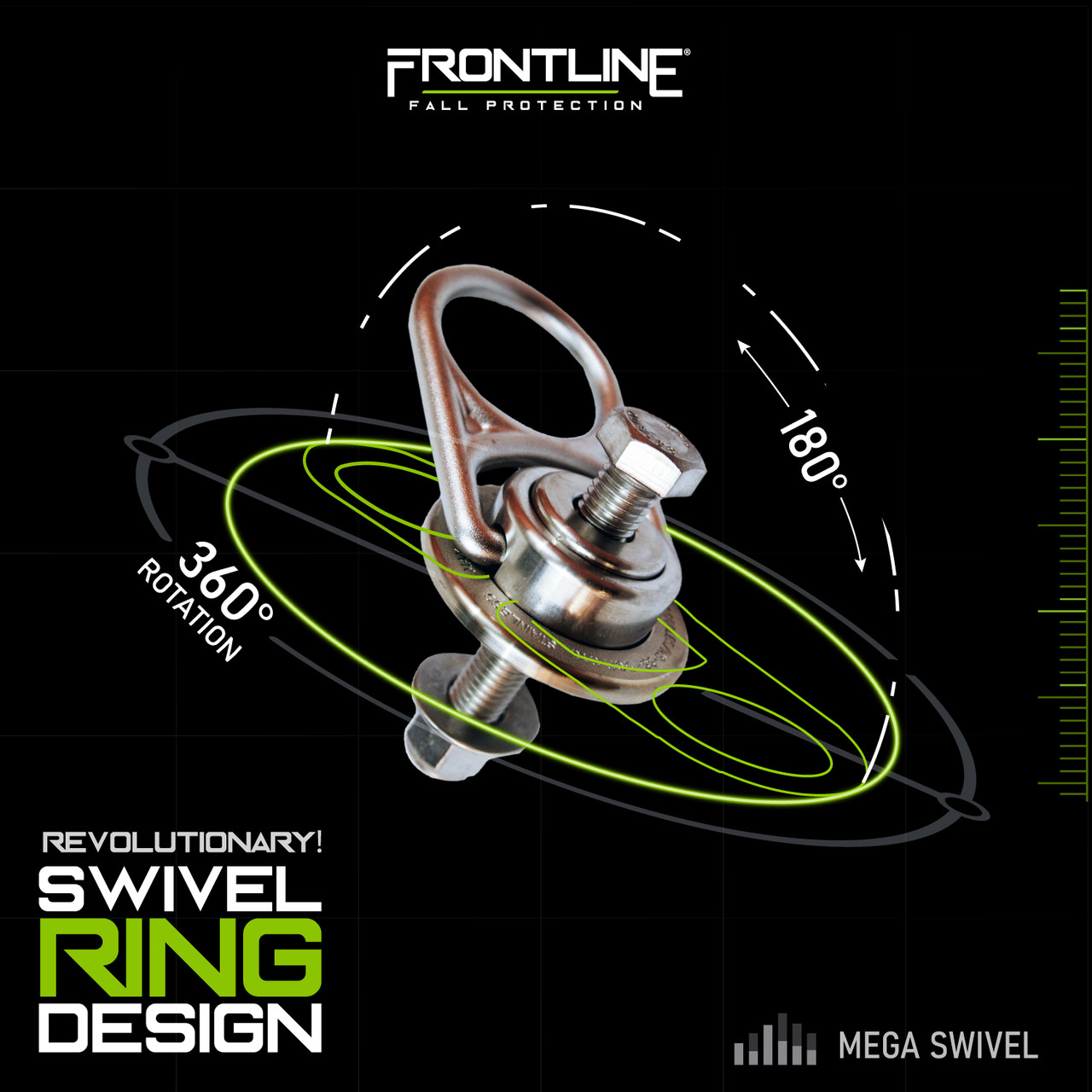

The Frontline MEGA Swivel anchor system features an innovative swivel ring mechanism that enables its D-ring to make complete 360-degree rotations while also allowing 180-degree back-and-forth movement.

The Swivel Anchor delivers exceptional durability through its robust stainless steel construction, featuring a reinforced bridge, D-ring, and secure locking caps. Its proprietary key lock mechanism ensures the D-ring remains firmly positioned within the swivel housing, eliminating outward steel expansion during high-load situations.

This durable steel anchor offers multiple uses, with an easily replaceable bolt for relocating to different work zones and versatility across vertical, horizontal, and overhead installations. Its applications span fall protection, rescue operations, lifting tasks, hoisting activities, tie-back functions, and more in steel environments.

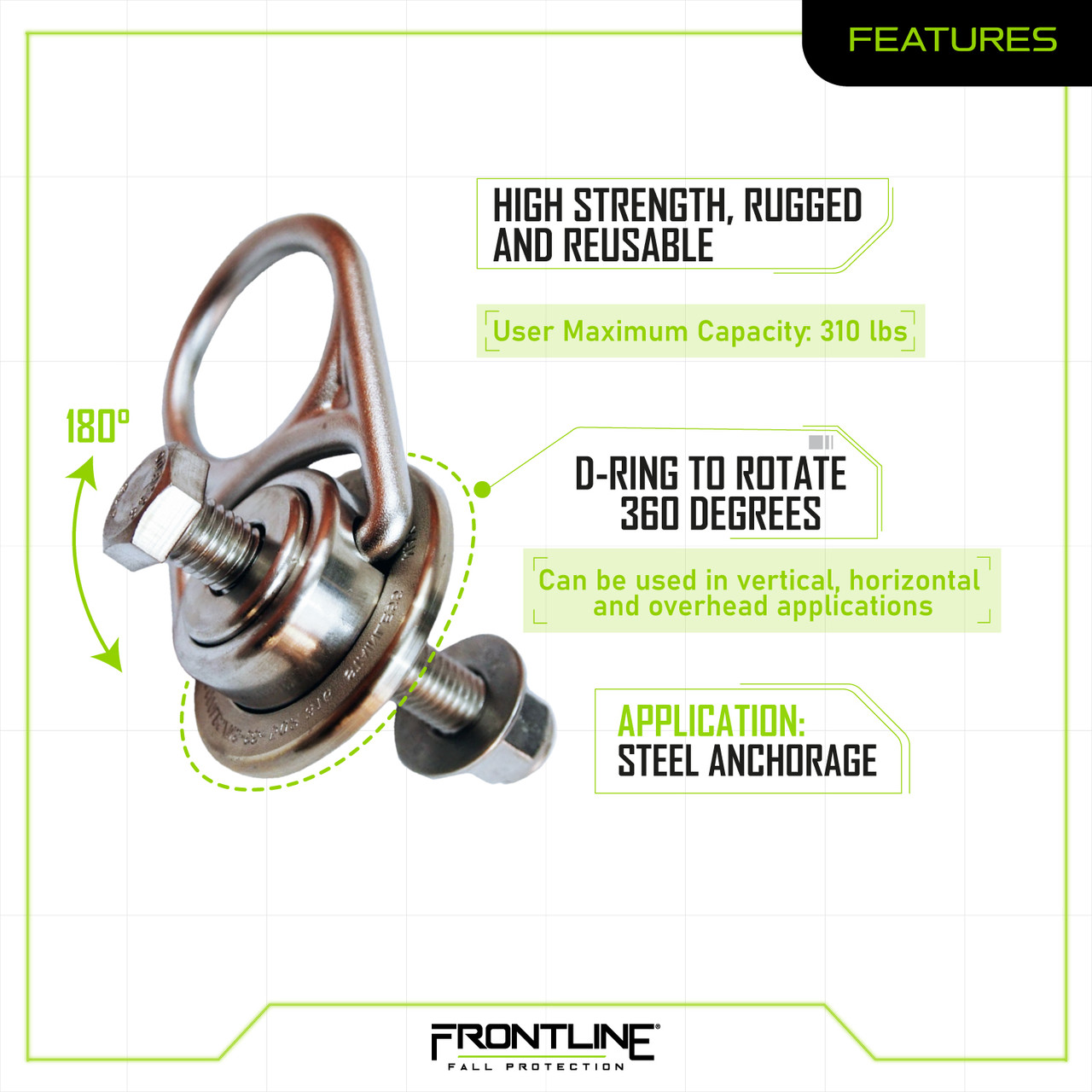

Features:

• Full 360° rotation and 180° side-to-side pivot capability prevents side loading and unintended disconnection
• Suitable for both permanent and temporary steel-supported installations
• Functions as an individual anchor point or combines with other approved anchors in temporary horizontal lifeline systems
• Constructed from corrosion-resistant stainless steel, ideal for outdoor applications
• Ships with included bolt for immediate deployment

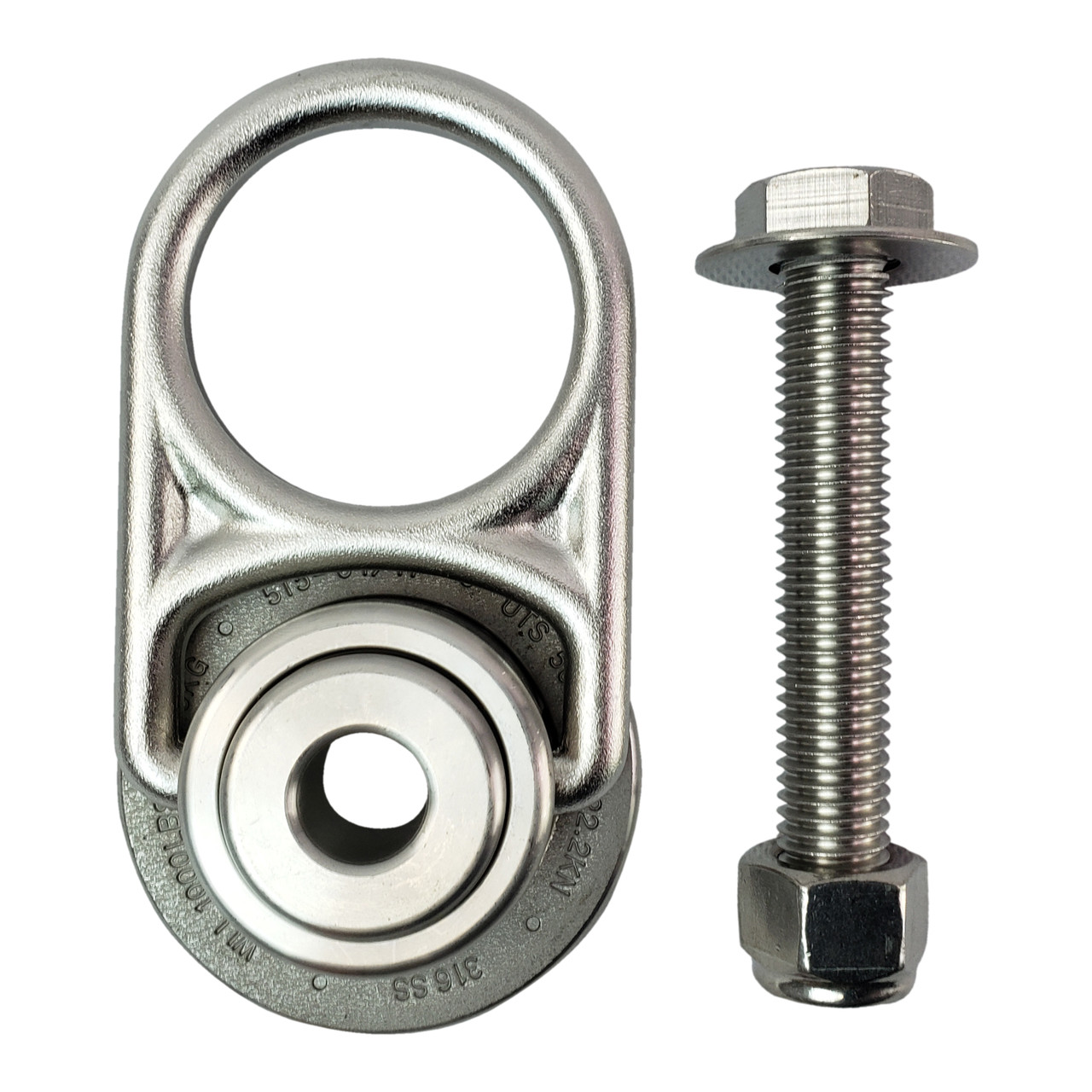

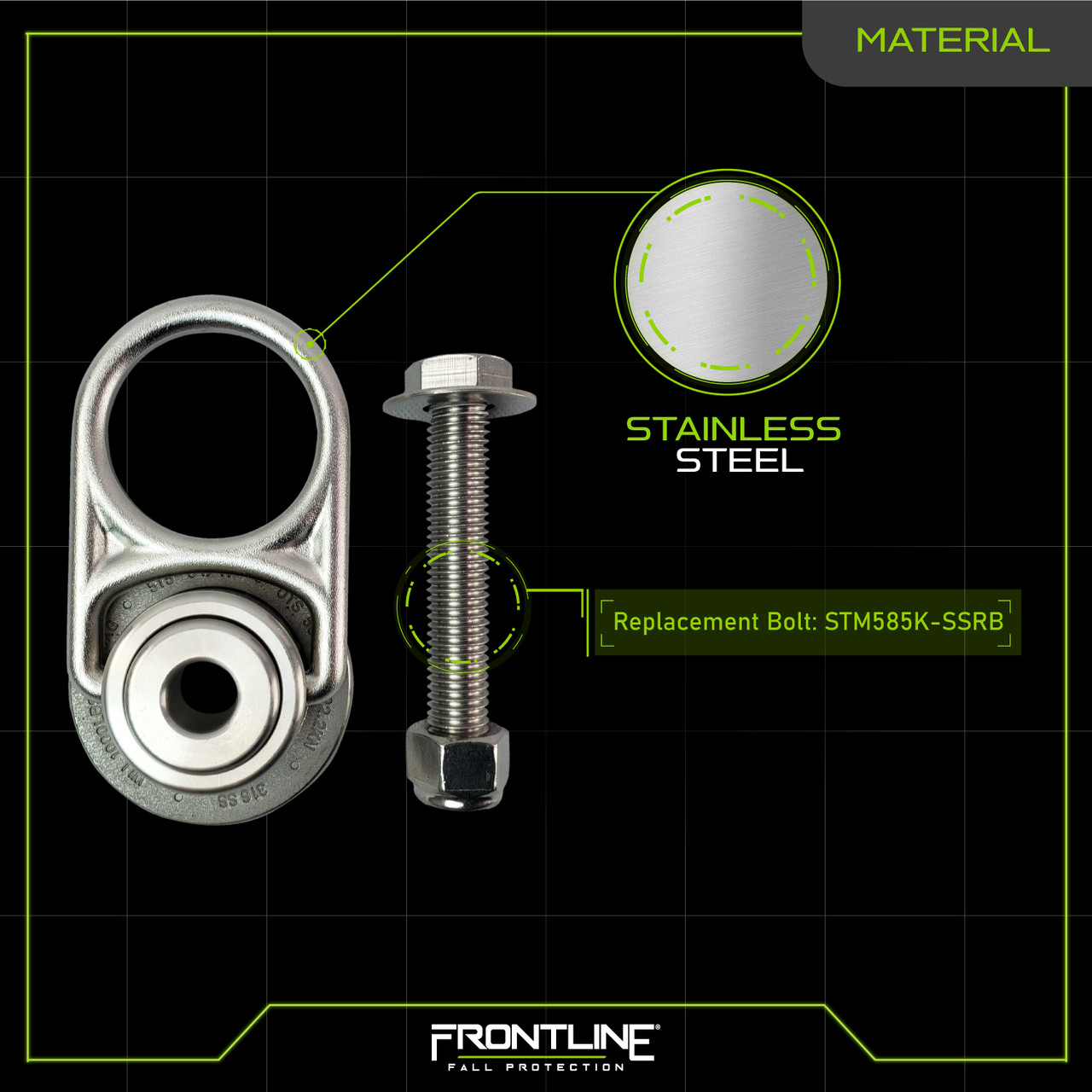

Components:

• Stainless steel

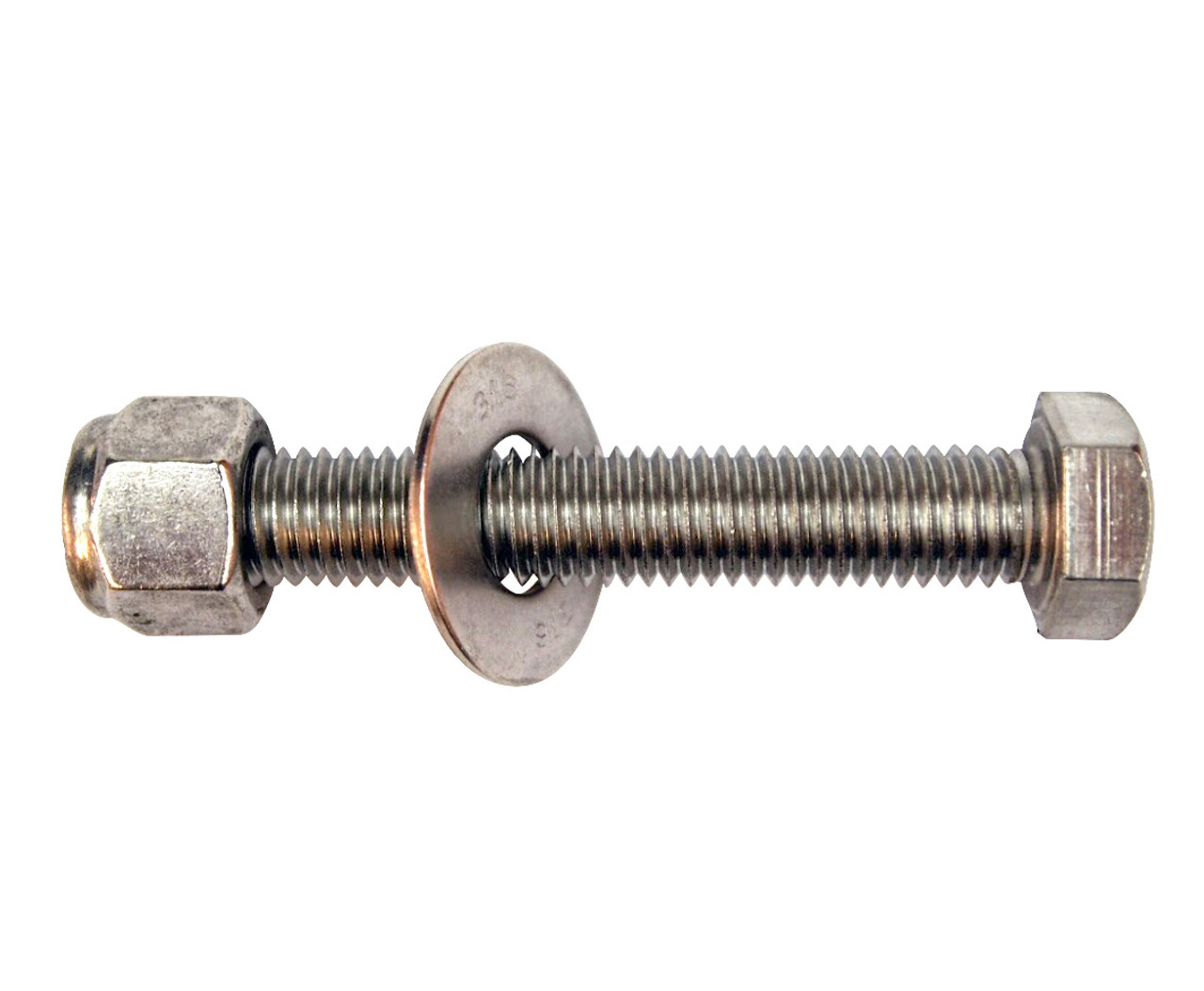

• Replacement Bolt: STM585K-SSRB

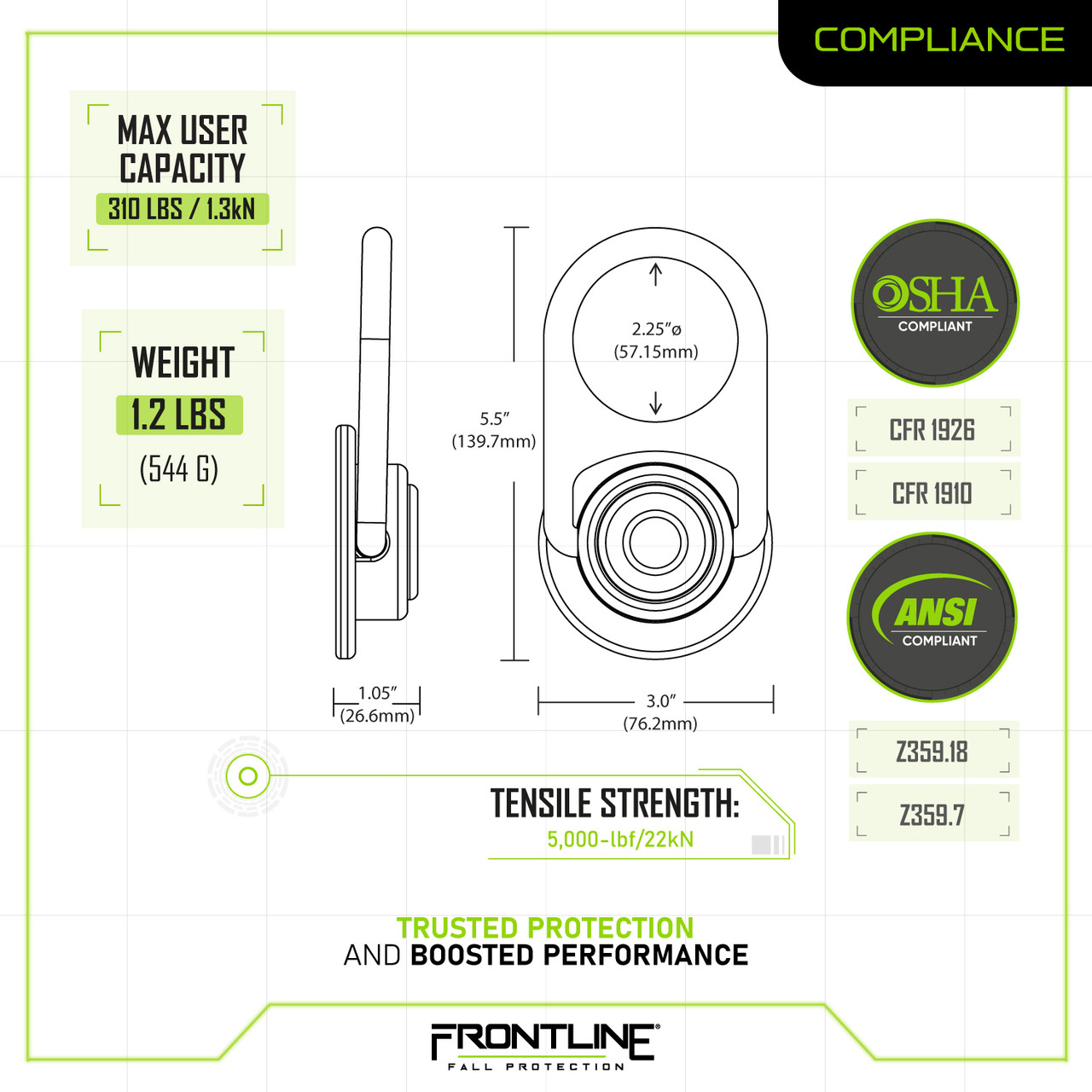

Specs and Standards:

• Static Tensile Strength: 5,000-lbf/22kN
• User Maximum Capacity: 310 lbs
• Product Weight: 1.2 lbs
• Application: Steel Anchorage
• Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
