FrontlineŽ STWD5K ALPHA Swivel 5K Steel Anchor with Weld-On Puck

Meet the innovative Frontline ALPHA reusable anchors engineered specifically for steel surfaces. The ALPHA anchors showcase an advanced design with a 360° rotating d-ring that also tilts forward and backward through a full 180° range, maximizing freedom of movement for users.

These ALPHA anchors are crafted from premium materials featuring galvanized zinc coating with yellow passivation to ensure superior rust resistance, making them ideal for both exterior and interior use. While compact in size, the anchor delivers exceptional durability to handle the most demanding worksite conditions, elevating both safety standards and regulatory compliance.

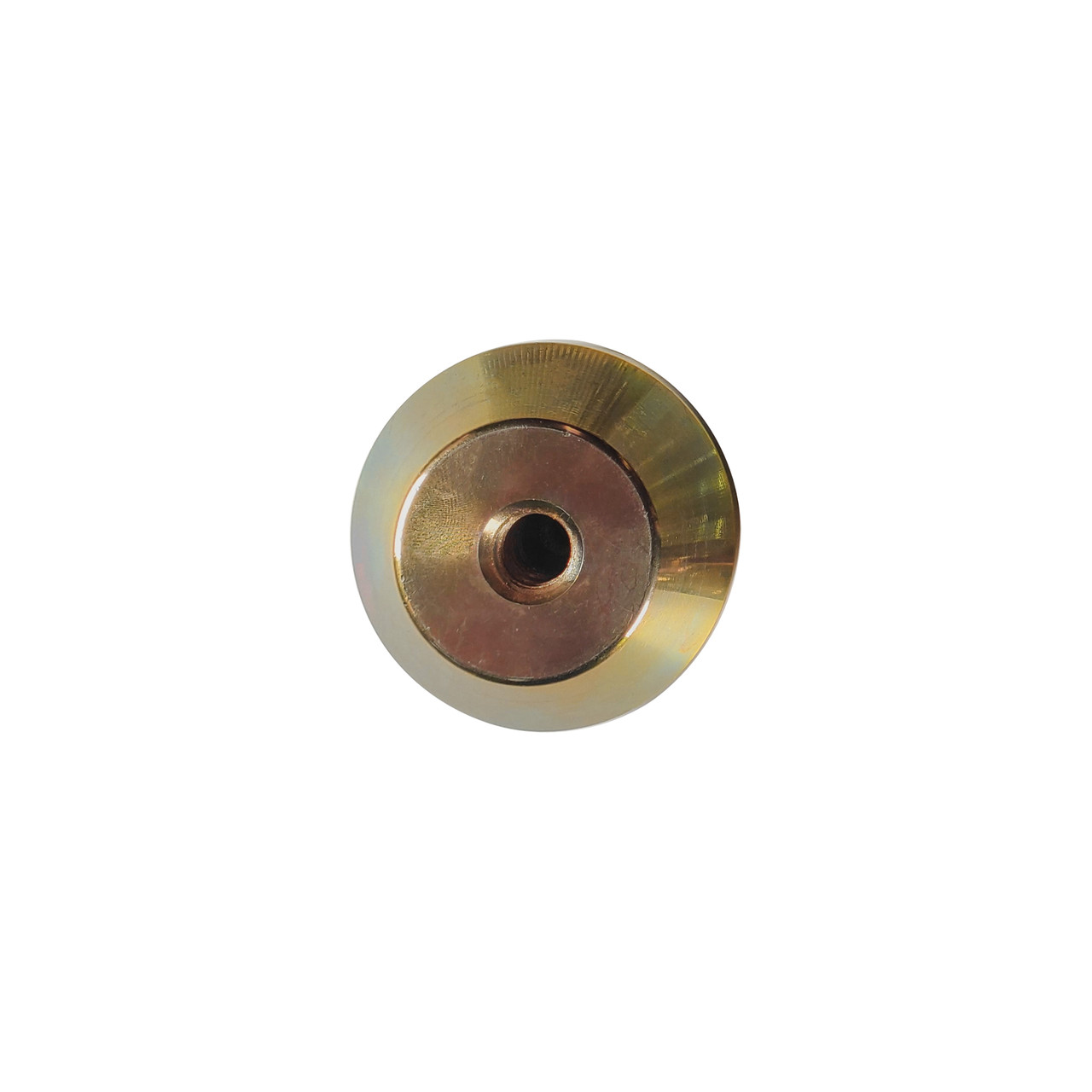

The ALPHA anchor's reusable design includes a replaceable weld-on mounting system for easy relocation between work zones. Deploy it confidently in any orientation - vertical, horizontal or overhead positions - and rely on Frontline ALPHA anchors to deliver performance that surpasses industry standards.

Features:

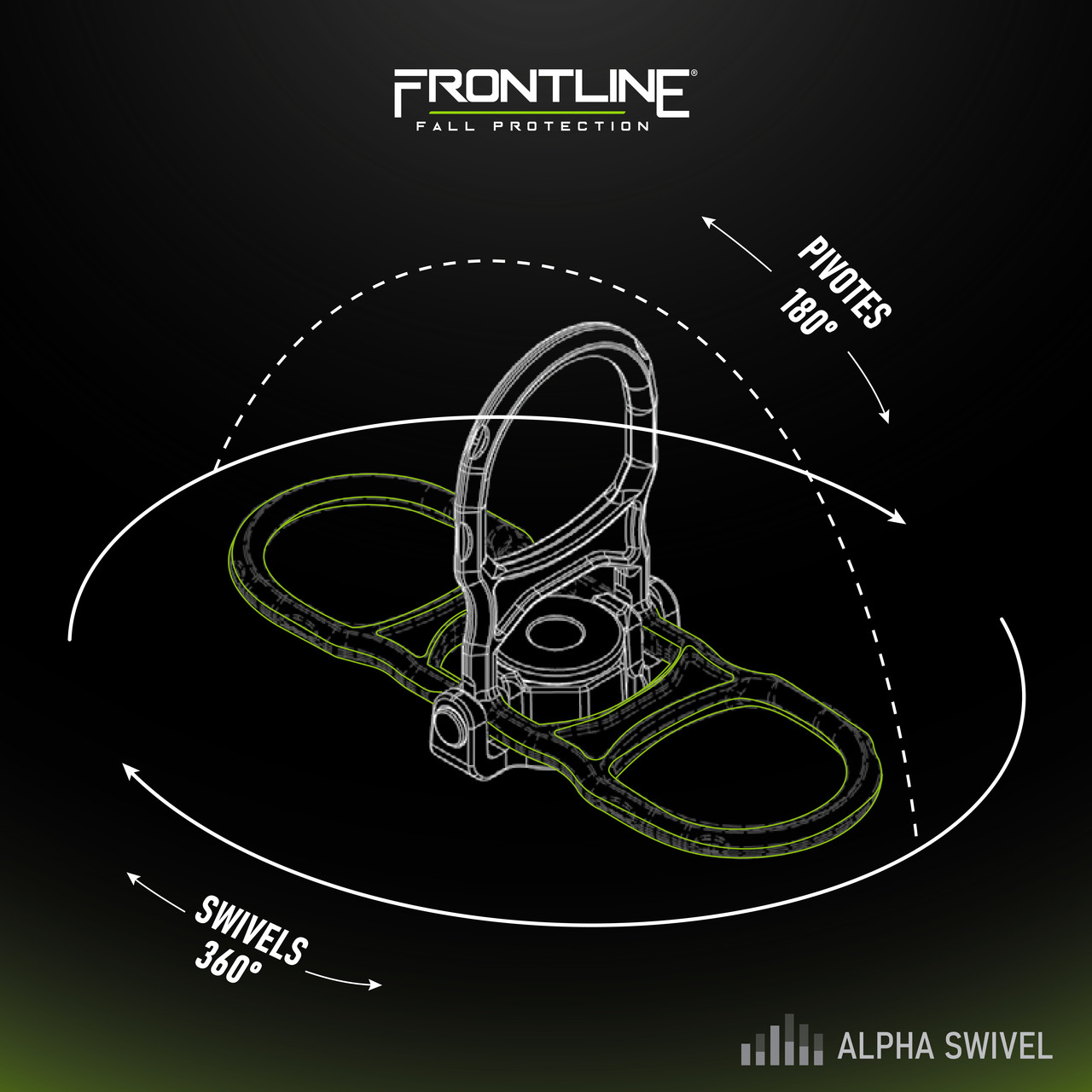

• D-ring rotates 360° and moves 180° laterally to prevent side loading and unintended disconnection

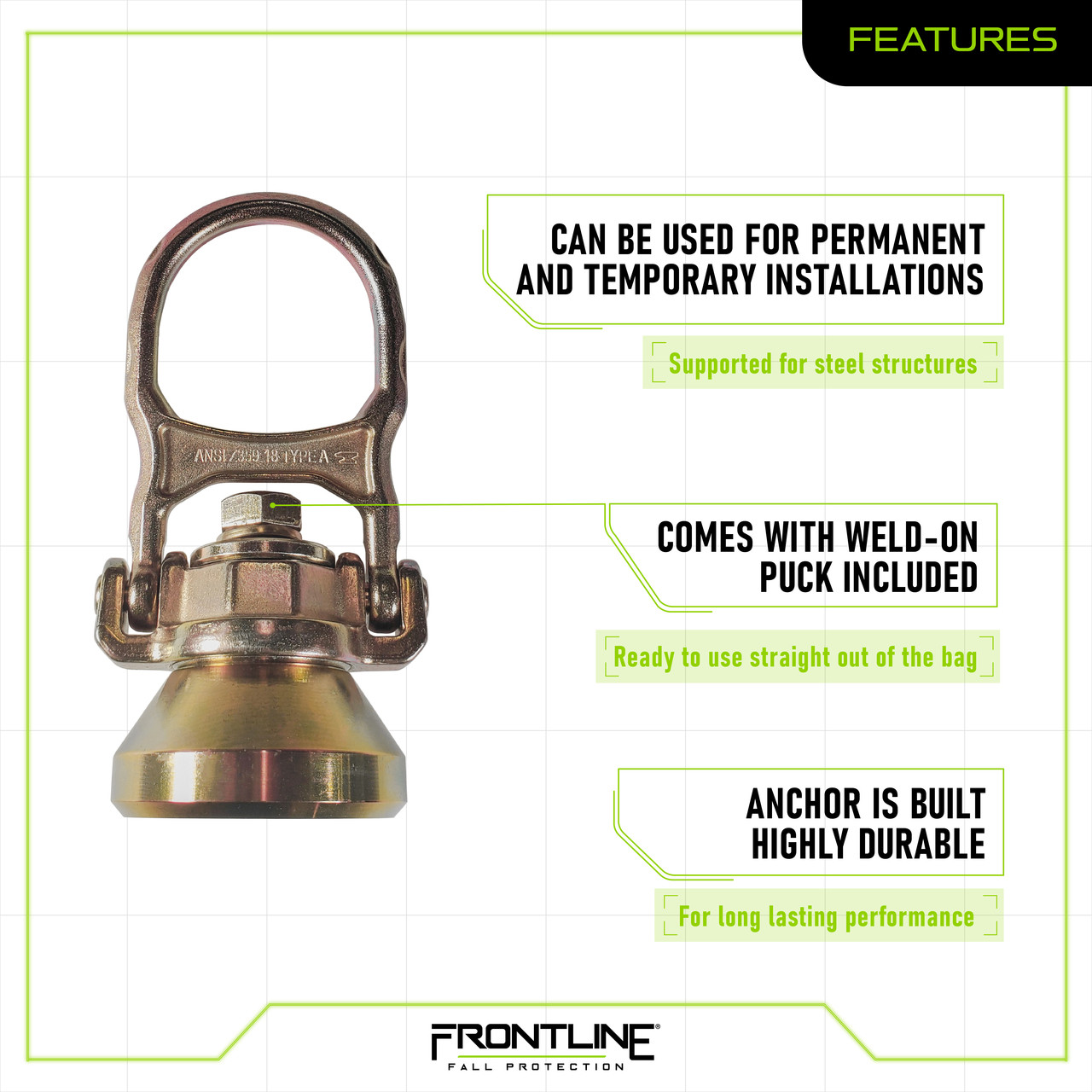

• Suitable for both permanent and temporary steel structure installations
• Functions as individual anchor point or integrates with approved anchors for temporary horizontal lifeline systems
• Engineered for superior strength and resilience to maintain performance across multiple jobs

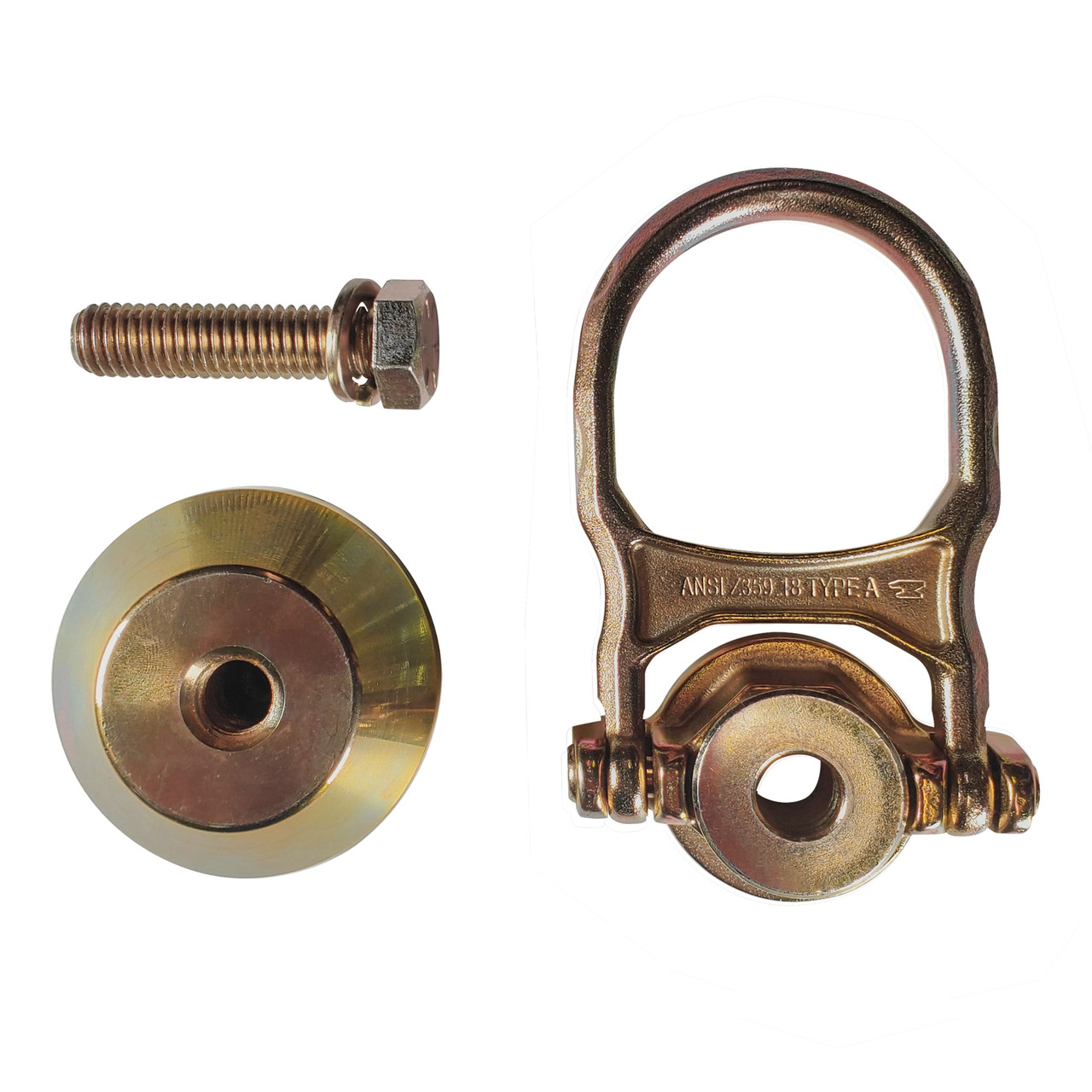

• Ships with included bolt for immediate installation from package

Components:

• Galvanized zinc with yellow passivation

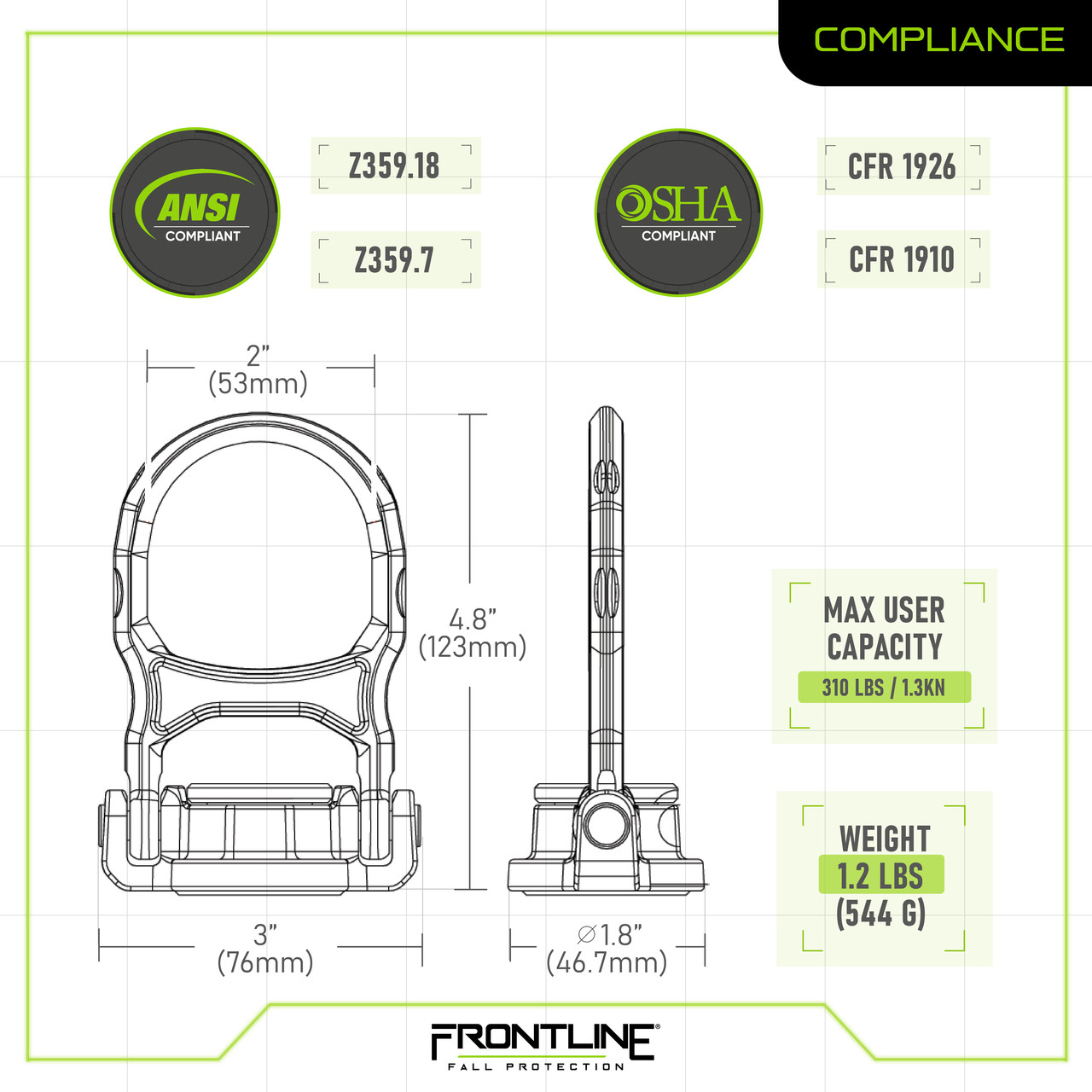

Specs and Standards:

• Static tensile strength: 5,000 lbs
• User maximum capacity: 310 lbs
• Product weight: 1.2 lbs
• Application: Weld-on steel anchorage
• Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910, and OSHA 1926
