KStrong Bolt-On D-Ring Anchor

Small but mighty — this D-Ring anchor gives you a secure connection point you can trust. Bolt it down and get to work knowing it’s built to ANSI standards and tested to 5,000 lbs.

Key Features

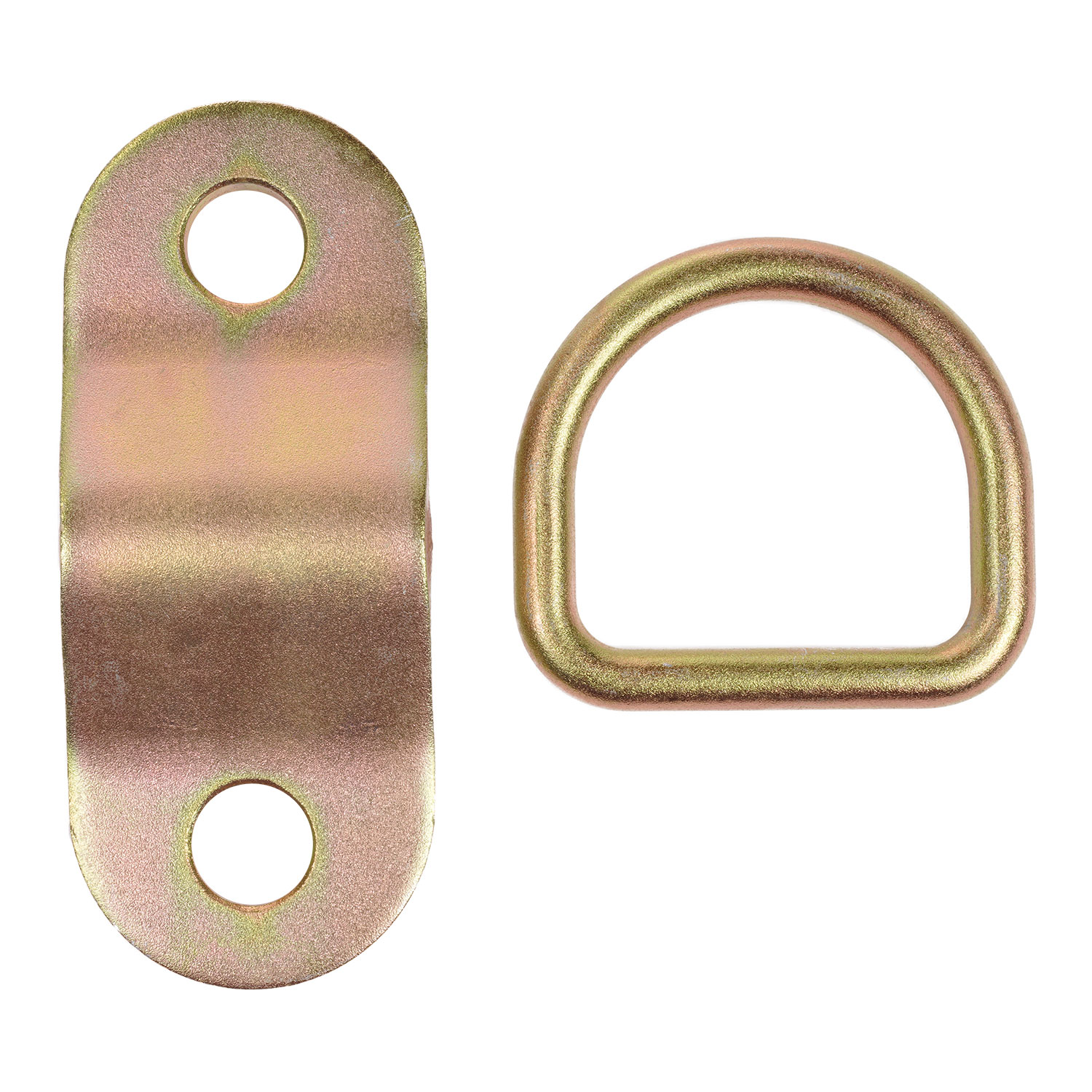

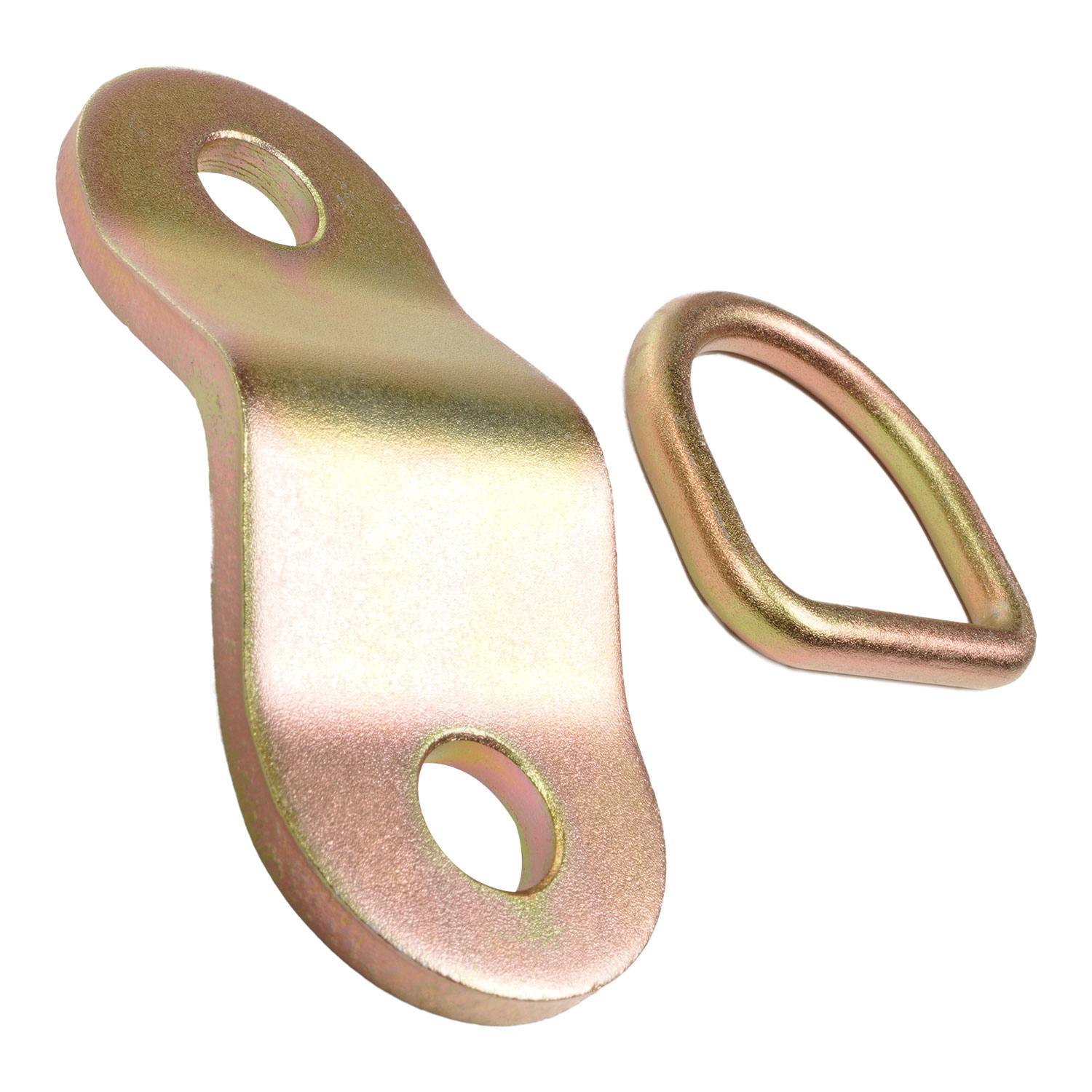

• Bolt-on D-Ring anchor with two-hole plate
• Provides a secure anchorage point for fall protection systems
• Made from high-strength alloy steel
• Shot blasted, zinc plated yellow passivated finish for corrosion resistance and visibility
• Lightweight at just 0.63 lbs ± 0.022 lbs (286 g ± 10 g)
• Compact, low-profile design won’t get in the way

Specifications

• Model: UFA30301
• Material: Alloy steel
• Finish: Shot blasted, zinc plated, yellow passivation
• Breaking Strength: Minimum 5,000 lbs (2,268 kg)
• Weight: 0.63 lbs ± 0.022 lbs (286 g ± 10 g)
• Installation: Mechanical fasteners (M12 bolts) or chemical anchors
• Compliance: Meets ANSI standards
