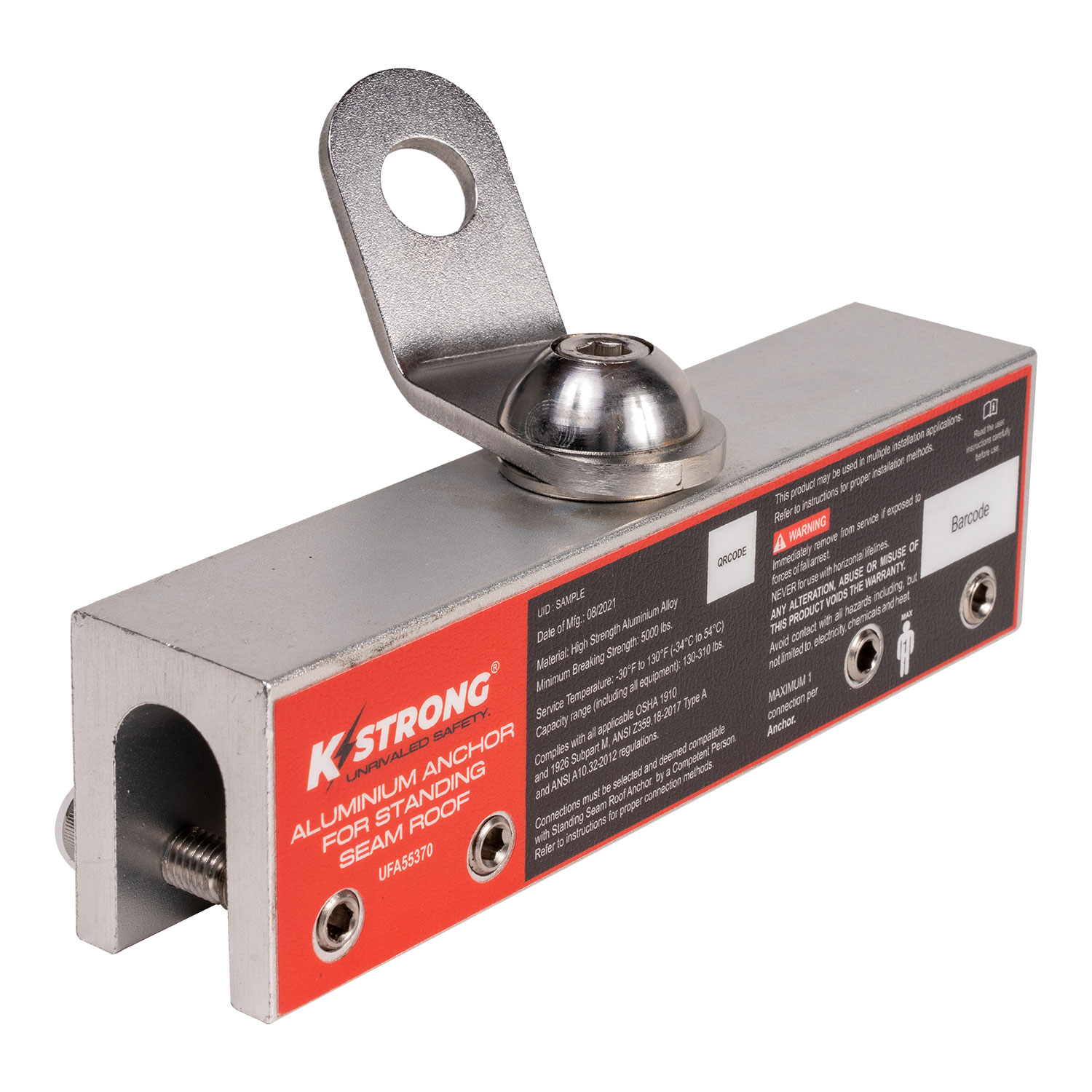

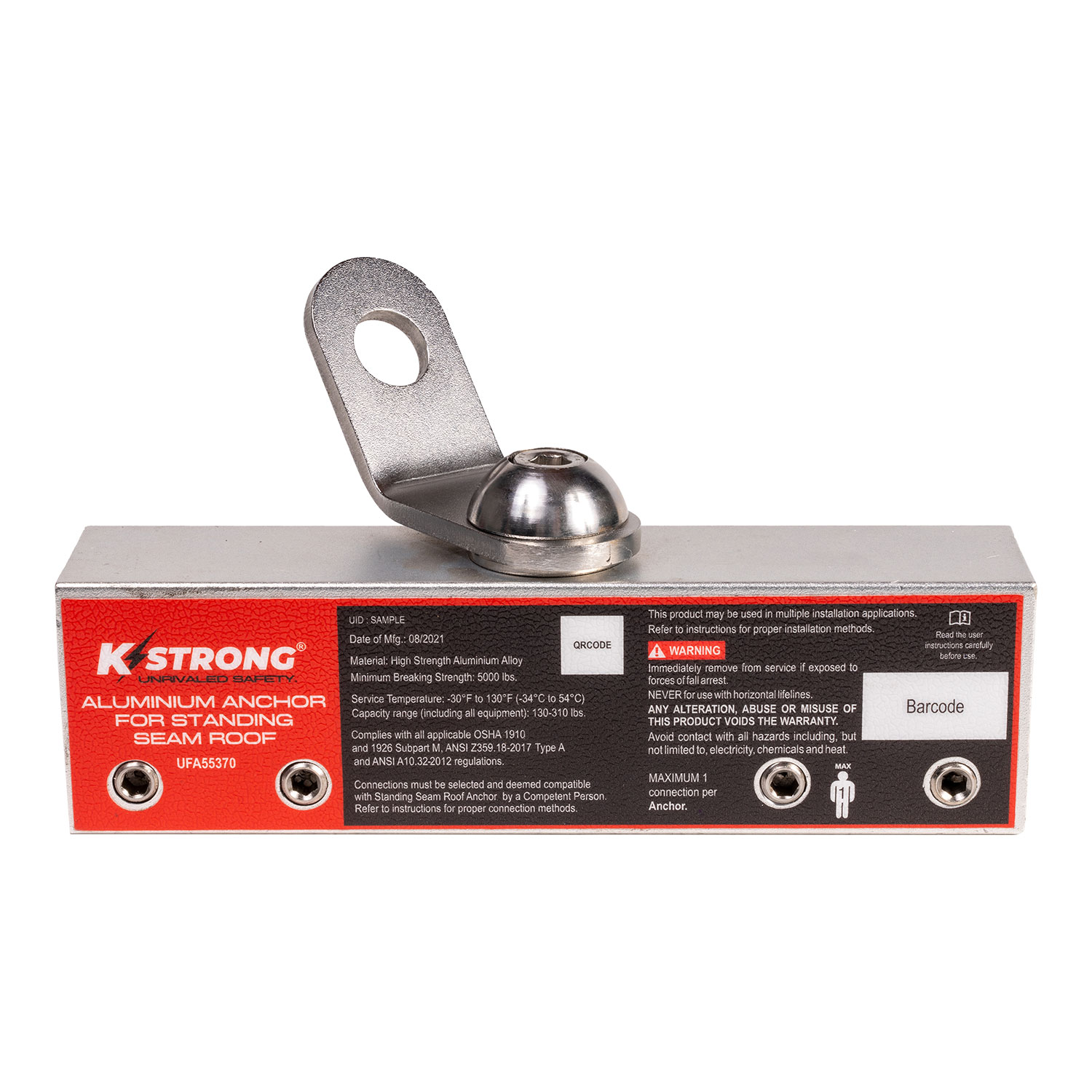

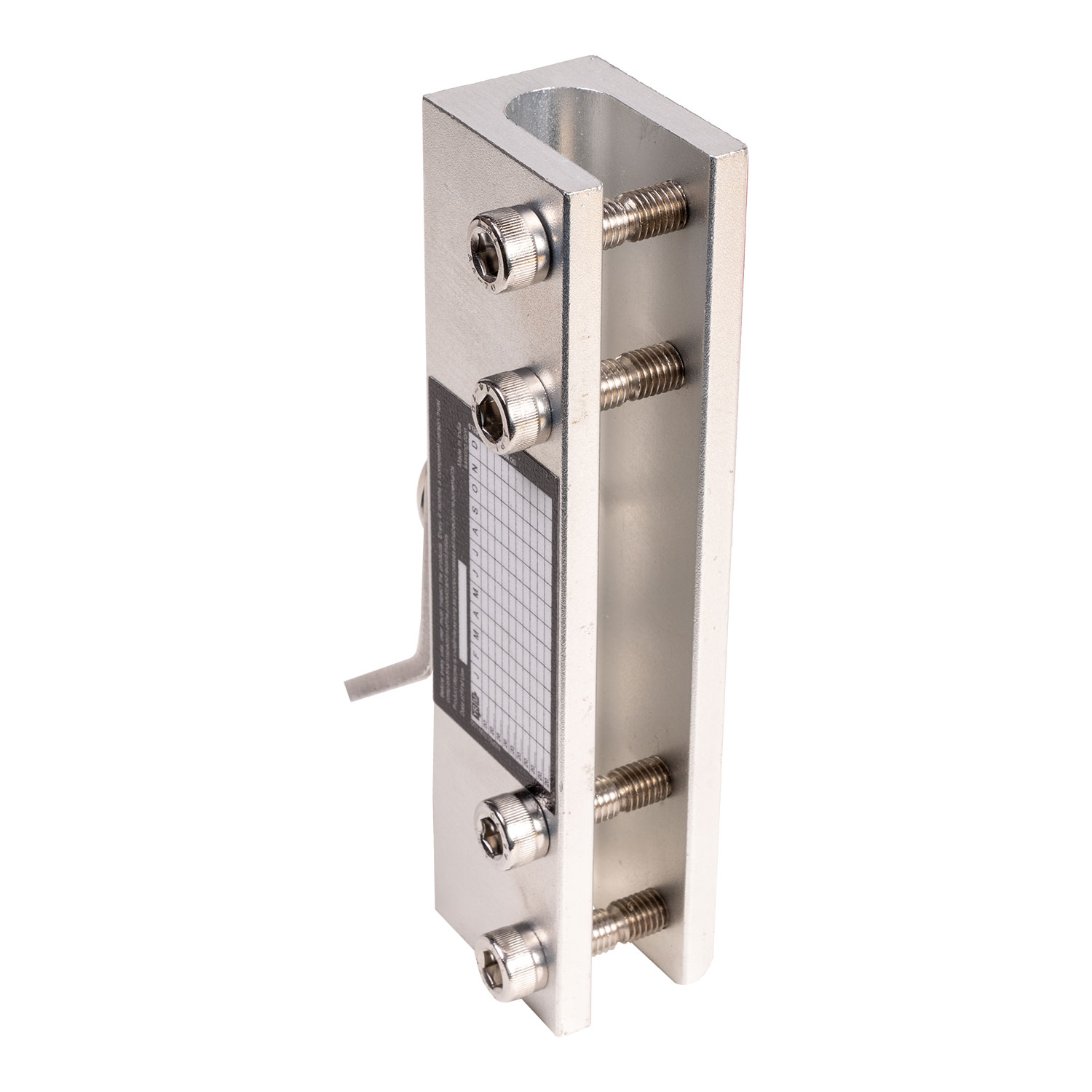

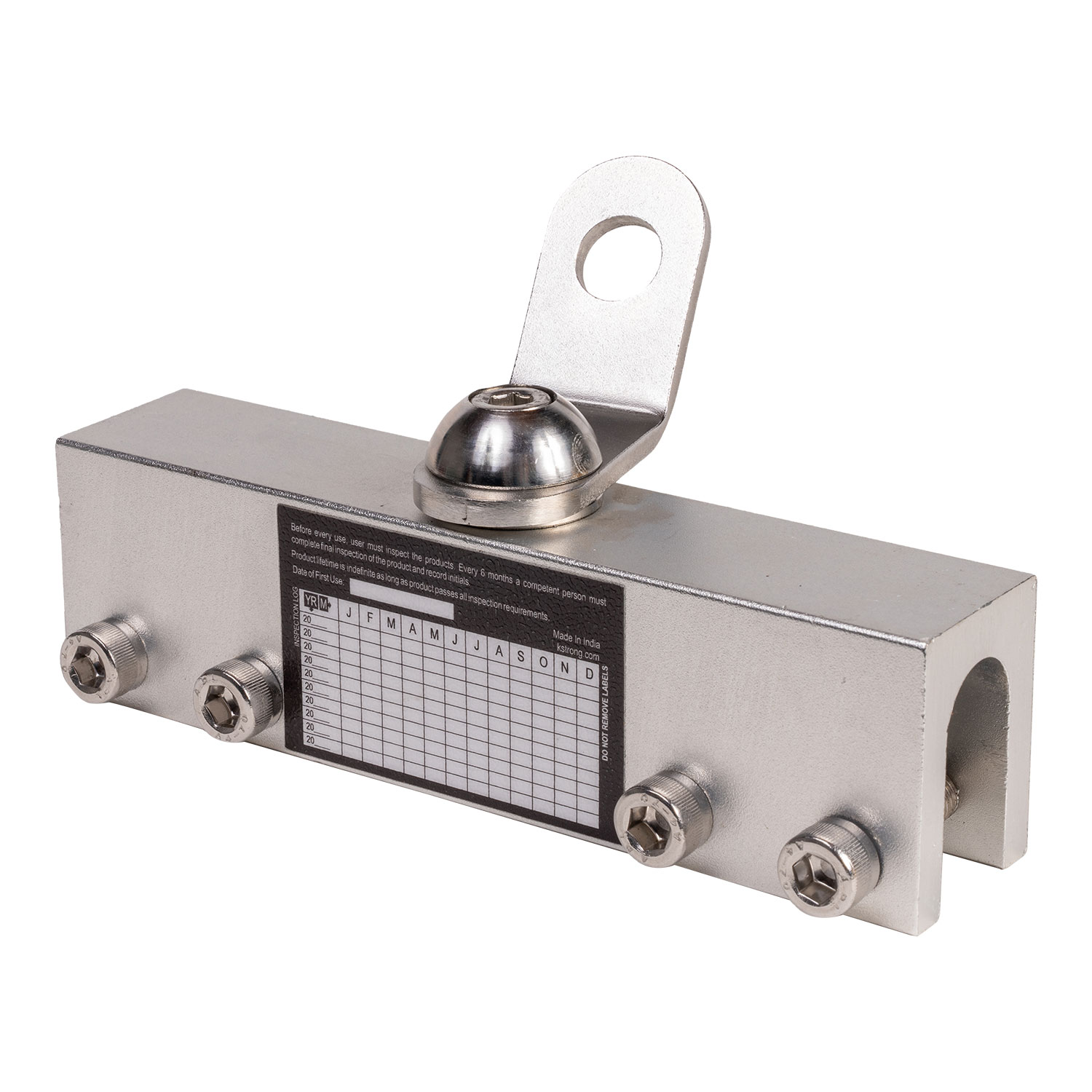

KStrong Single Seam Roof Anchor, ANSI Z359.18-2017 Type A Compliant

Secure your walkthroughs — this roof anchor grips metal standing seams tight and keeps your lifeline solid.

Key Features

• Designed for metal standing seam roofs and I-beams; works with horizontal lifeline systems
• Trolley lateral hinge (swivel anchorage eye) for universal connection point
• Fixed to roof via screw set; bolt hardware included in screw set
• Compatible with bulb sizes up to 0.91 in (23 mm) on standing seam roofs
• Made with aluminum alloy and stainless steel for strength + corrosion resistance

Specifications

• Model: UFA55370
• Material: Aluminum Alloy & Stainless Steel
• Finish: Natural Silver, Anodized
• Minimum Breaking Strength: ~23 kN
• Weight: 1.84 lbs ± 0.02 lbs (≈ 834 g ± 10 g)
• Installation: Screw set method, fixed to roof ; fits bulb size up to 23 mm
• Compliance / Standard: Meets or exceeds ANSI/ASSP Z359.18-2017

Benefits

• Offers strong, secure anchorage without welding—less mess, more flexibility
• Swivel eye reduces stress on your lifeline connectors; smoother movement & less wear
• Lightweight, corrosion-resistant materials make it easier to install and maintain
• High strength rating gives confidence in demanding rooftop conditions
