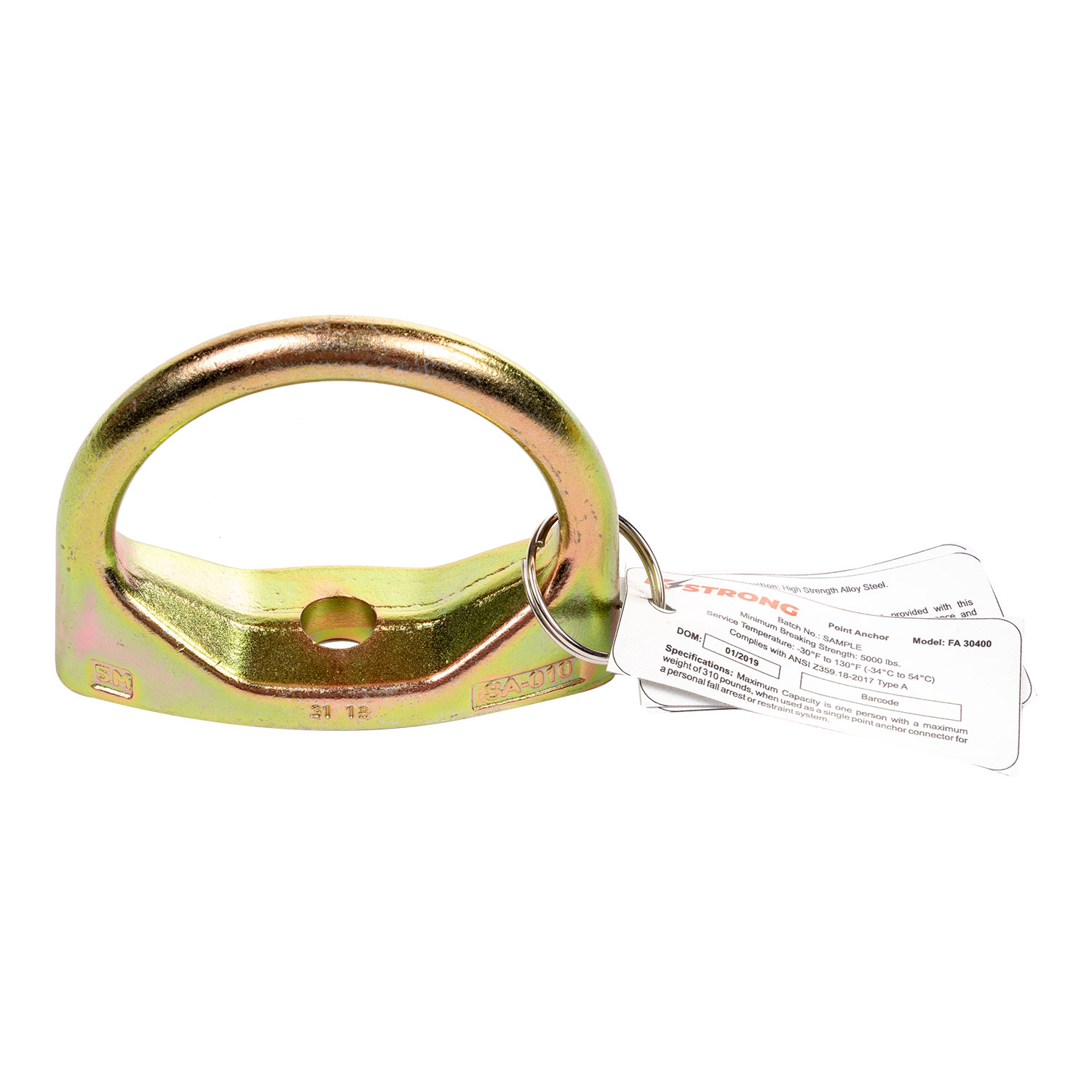

KStrong Steel Weld-On/Bolt-On Anchor Point, ANSI Compliant Fixed Steel Safety Anchor

Built to attach permanently (welded or bolted) to steel structures, walls, ceilings, or rooftops. When you want a solid anchor point that can handle loads from all directions, this unit stands up.

Key Features

• Designed to be welded or bolted onto steel structures, rooftops, walls, or ceilings.
• Three-axis load support — can sustain impact in X, Y & Z directions.
• Made with high-quality alloy steel and a silver/golden yellow galvanized finish for corrosion resistance.

Specifications

• Material: Alloy steel
• Finish: Silver / golden yellow galvanized
• Number of Users: 1 maximum
• Minimum Breaking Strength (each axis X, Y, Z): 23 kN (minimum) per axis
• Relevant Standards: ANSI Z359.18-2017 + CES/TS 16415:2013 TYPE A9.1:2007, EN 795:2012 TYPE ‘A’
• Weight: 0.84 lbs ± 0.02 lbs (≈ 381 g ± 10 g)

Why Choose This Anchor Point?

• Maximum durability: welded or bolted for permanent fixture means fewer moving parts, less fuss.
• True multi-direction protection — fall or load may come from any angle; this is built for that.
• Compact and lightweight, but doesn’t mess around when it comes to strength.
• Ideal for industrial, commercial, or structural steel applications where fixed anchor points are needed.

Recommended Use

• Steel rooftop installations (fixed anchor point for fall arrest or positioning)
• Structural steel frameworks (beams, columns, overhead structures)
• Ceilings or walls where a permanent safety tie-off is required
• Applications where directions of force are unpredictable

Compliance

• Meets ANSI Z359.18-2017 and EN 795:2012 TYPE ‘A’ standards.
• Also compliant with CES/TS 16415:2013 TYPE A9.1:2007
